Configuring Timecode Resources
Profile Family 331
2. To add a timecode track, click the Add Track button. In the Add Track
dialog box that appears (see Figure 162), click Timecode , then click Add .
The new timecode track icon will appear in the configuration tree.

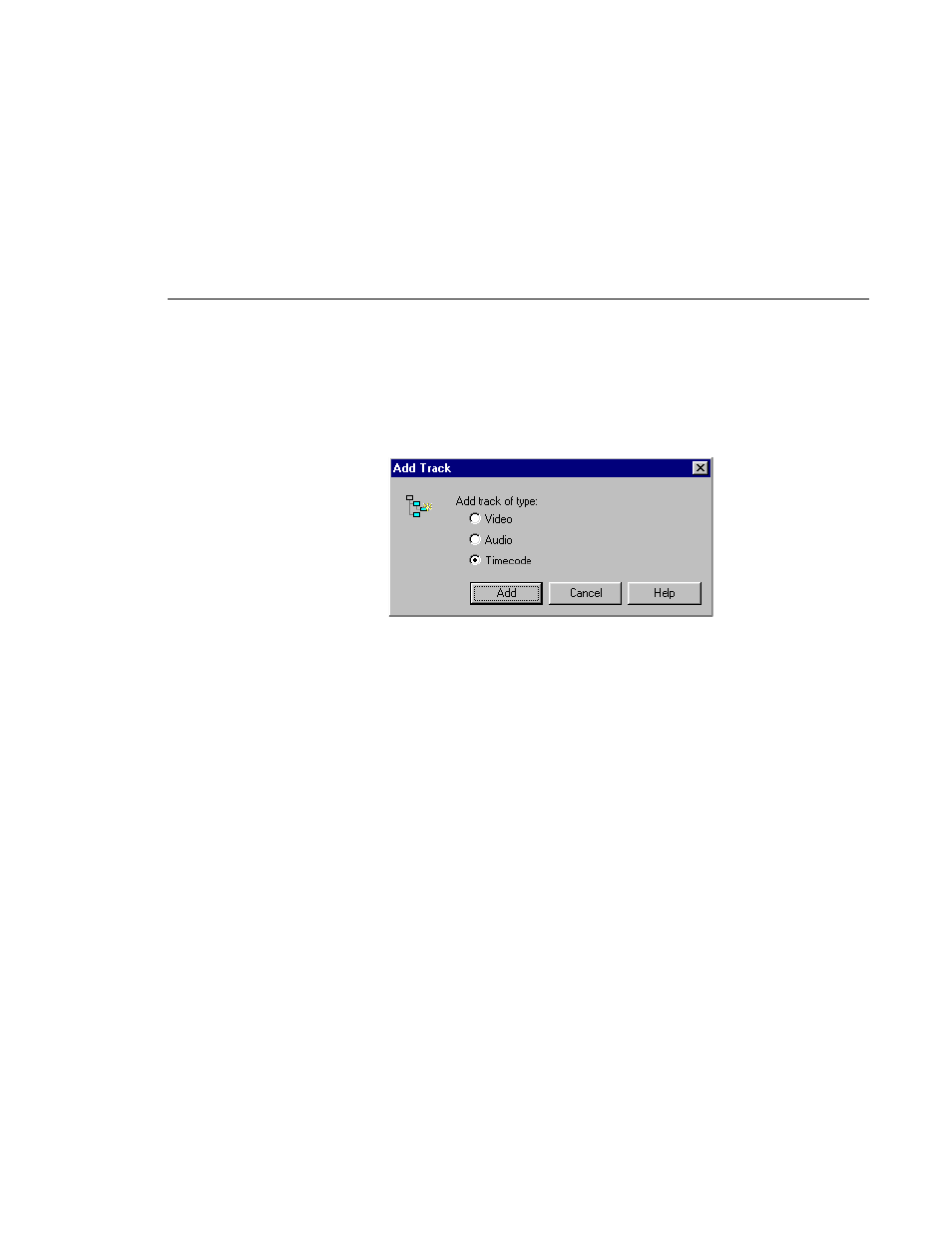

Figure 162. Add Track dialog box for timecode
3. Select a timecode input under Timecode Input. You can record timecode
from an internal generator, genlock VITC, LTC inputs, or a VITC input from
a Profile video input.
4. Select a timecode output under Timecode Output. The default timecode
output is None. You can choose either a VITC output from a Profile video
output or an LTC output.
NOTE: VITC outputs appear in the Timecode Output list box only if
the corresponding video outputs have been selected for the same
channel. For example, “SDI-VITC-OutA-J6” appears in the
Timecode Output list box for Channel A only if you’ve selected “SDI-
Out-J6” as a video output for Channel A. If you remove a video
output for a channel, any request for the corresponding VITC output
is also removed.
