Chapter 2 Using the Profile Configuration Manager
78 Profile Family
Analog Audio Input
To open the Analog Audio Input dialog box:
1. Select Audio Input from the configuration tree, and then click or double-
click an analog audio name from the list, such as Analog-InA-J8. The dialog
box appears, as shown in Figure 27.

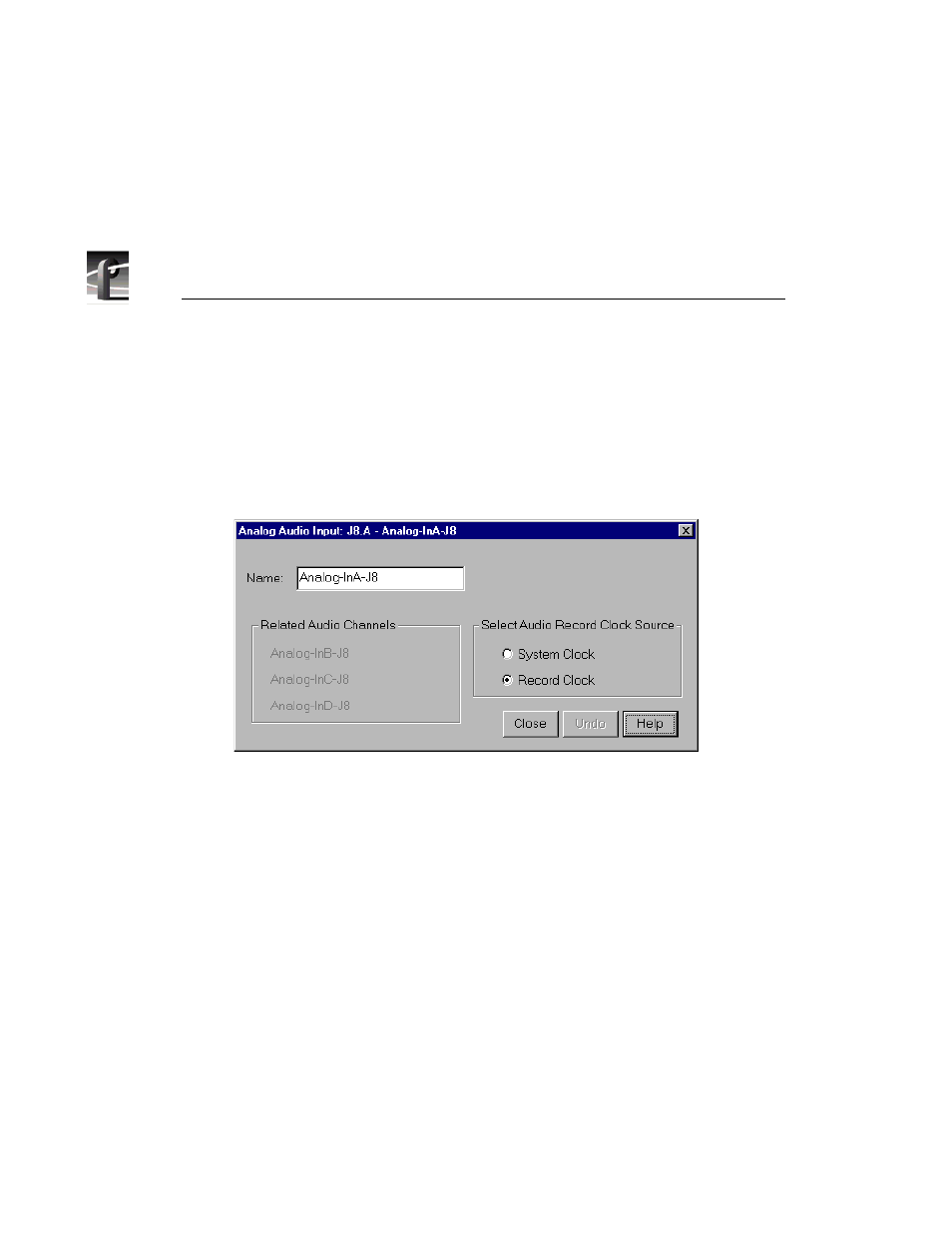

Figure 27. Analog Audio Input dialog box
2. Enter a new name in the Name box. For example, you could change the
signal name from Analog-InA-J8 to Audio One. Signal names can be up to
30 characters long, and can include spaces. The window title bar name and
the configuration tree name automatically change as you enter the new name.
To return a renamed signal to the default, delete all the characters in the text
field, and press Enter.
3. ²Click System Clock or Record Clock to select the audio record clock
source.
4. ²Related Audio Channels lists the audio channels that are related to the
current signal name.
5. Click Undo to return the values in the dialog box as they were set at the time
the dialog box appeared.
6. Click Close to accept the changes.
