Digital Audio Input
Profile Family 79
Digital Audio Input
To open the Digital Audio Input dialog box:
1. Select Audio Input from the configuration tree, and then click or double-
click a digital audio name from the list, and the Digital Audio Input dialog
box appears (see Figure 28).

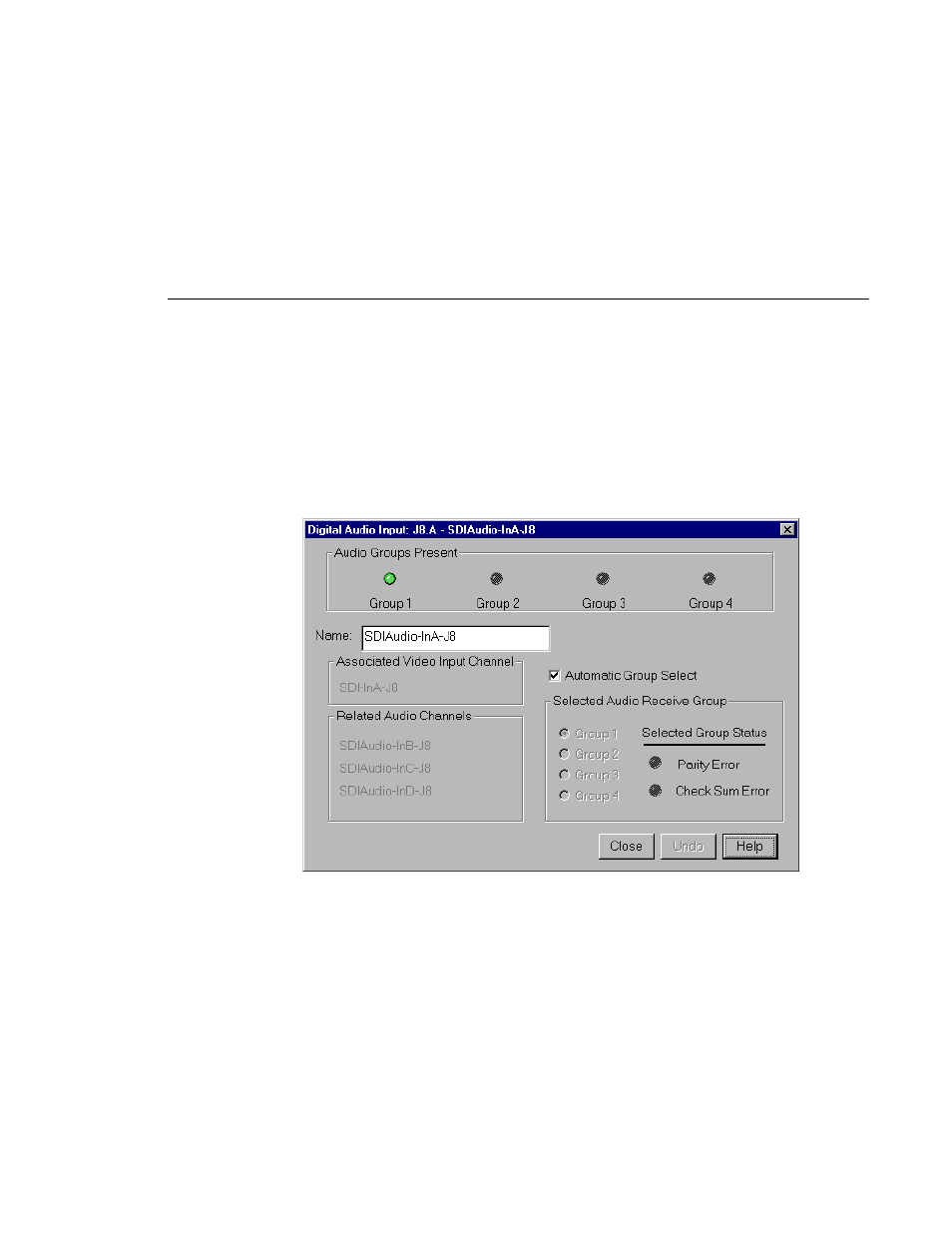

Figure 28. Digital Audio Input dialog box
2. ² Audio Groups Present shows four status indicators, one per audio group.
The green light indicates that the particular status is on. These indicators
cannot be edited.
3. Enter a new name in the Name box to change the signal name—Audio_1, for
example. Names can be up to 30 characters, and can include spaces. The
window title bar name and the configuration tree name automatically change
as you enter the new name. To return a renamed signal to the default, delete
all the characters in the text field, and press Enter.
4. Associated Video Input Channel lists the name of the digital component
video input channel associated with the audio signal.
