Chapter 2 Using the Profile Configuration Manager
64 Profile Family
Serial Digital Component Video Input
You can configure serial digital component video input with the Serial Digital
Component Video Input dialog box. The current status indicators, shown at the
top of the dialog box, are
Video Present , VITC Present , and Auto Timed . The
green light indicates that a particular status is on. These indicators cannot be
edited.
To configure serial digital component video input:
1. Select Video Input on the configuration tree, and then click or double-click
a digital component input from the list, such as SDI-InA-J13. The Serial
Digital Component Video Input dialog box appears (Figure 19).

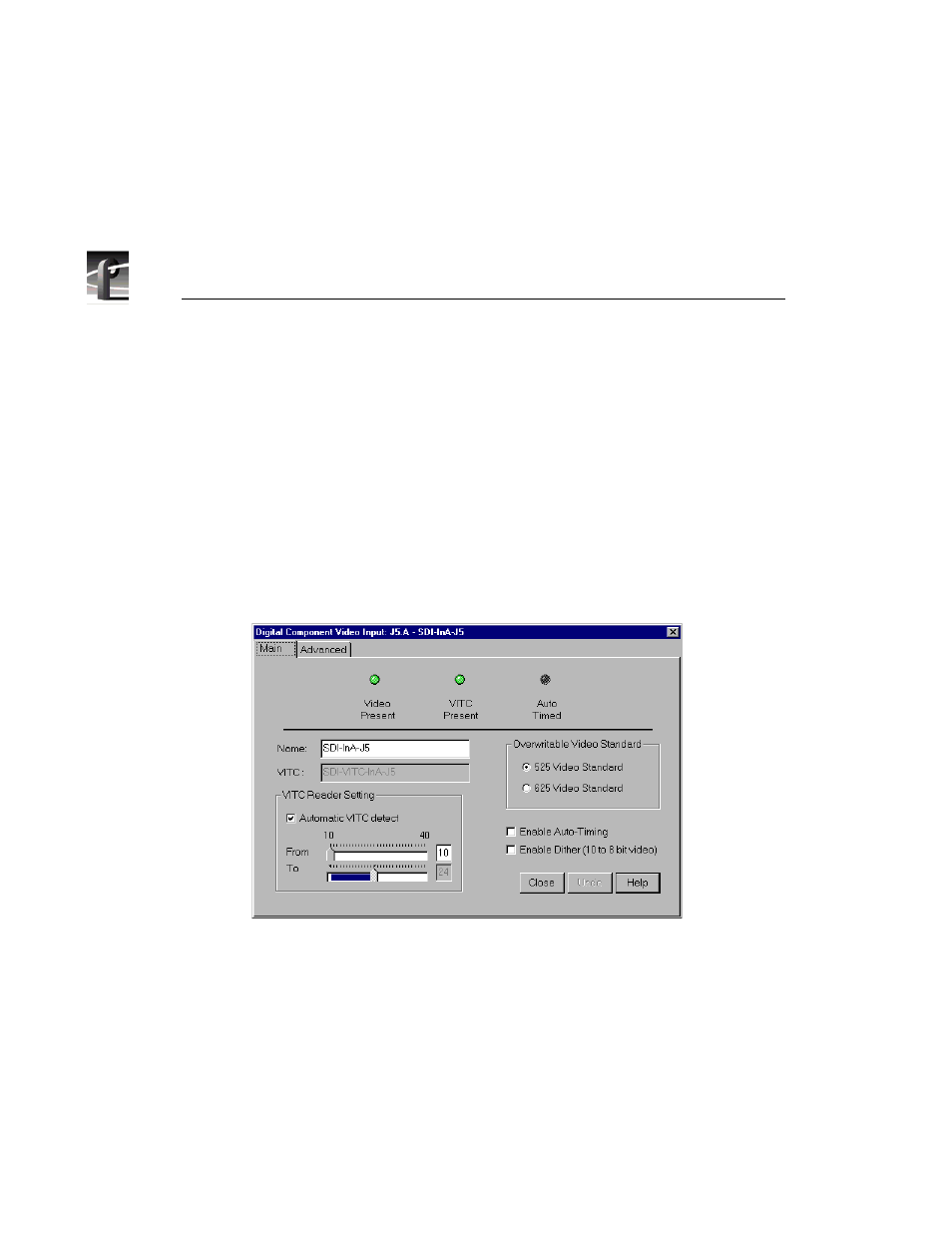

Figure 19. Serial Digital Component Video Input dialog box
2. If you prefer, enter the new signal name in the Name box. For example, if
SDI-InA-J13 is a dedicated satellite feed, you could rename it to Satellite_1.
The VITC name, window title bar name, and the configuration tree name
automatically change as you enter the new name. Names can be up to 30
characters, and can include spaces. To return a renamed signal to the default,
delete all the characters in the text field, and press Enter.
