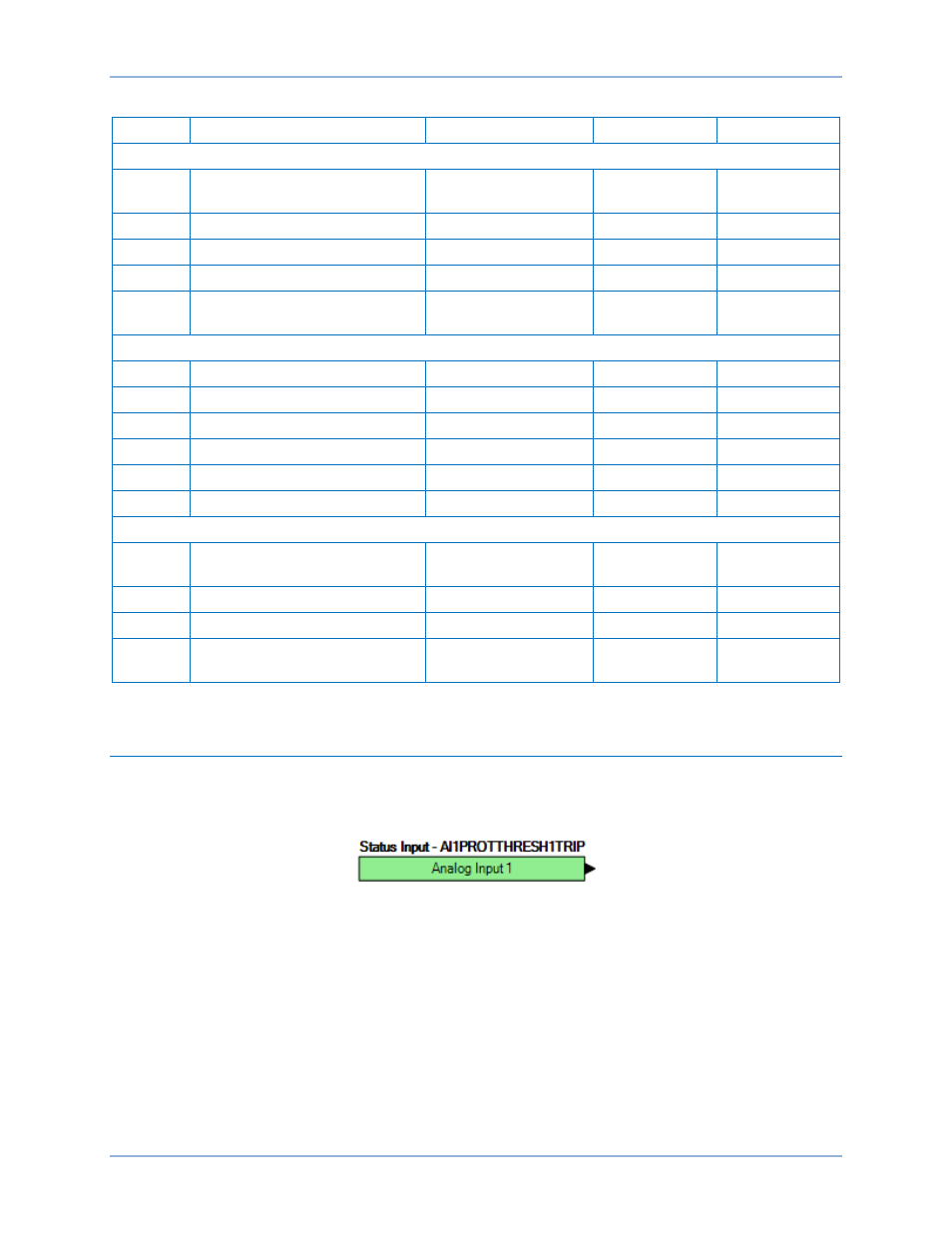

Table 32. Settings for Analog Inputs
Locator Setting Range Increment Unit
Input Setup
A Label Text
16 alphanumeric
characters
n/a n/a
B Hysteresis 0 to 100 0.1 %
C Input Type Voltage or Current n/a n/a
D Arming Delay 0 to 300 1 seconds
E Out of Range Alarm Type
Status Only, Pre-
Alarm, or Alarm
n/a n/a
Ranges
F Param Min -999,999 to 999,999 varies n/a
G Param Max -999,999 to 999,999 varies n/a
H Min Input Current 4 to 20 0.1 milliamps
I Max Input Current 4 to 20 0.1 milliamps
J Min Input Voltage -10 to 10 0.1 volts
K Max Input Voltage -10 to 10 0.1 volts
Threshold Settings 1 to 4
L Mode
Disabled, Over, or
Under
n/a n/a
M Threshold -999,999 to 999,999 0.01 n/a
N Activation Delay 0 to 300 1 seconds
O Alarm Configuration
Status Only, Pre-
Alarm, or Alarm
n/a n/a
Logic Connections
Analog input protection logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus.
The Analog Input 1, Threshold 1 logic block is illustrated in Figure 27. The output is true during a trip
condition. The alarm and pre-alarm logic blocks are similar.
Figure 27. Analog Input Protection Logic Block
