Table 73. Settings for Voltage Regulator Setup
Locator Setting Range Increment Unit
A CAN Bus Type
None, Basler,
Marathon, or J1939
n/a n/a
B Primary Voltage Setpoint 100 to 600 0.1 volts
C Alternate Voltage Setpoint 100 to 600 0.1 volts
D Voltage Adjust Bandwidth 0 to 30 0.01 volts
E
Field Current Setting for Field
Current Regulation Mode
0 to 3,000 0.001 amperes
F Primary Underfrequency Knee 40 to 70 0.1 Hz
G
Alternate Underfrequency
Knee
40 to 70 0.1 Hz
H Underfrequency Slope 1 to 5 0.01 n/a
RS-232
DGC-2020HD controllers are equipped with an RS-232 port which communicates with an external user-
supplied telephone modem with dial-in and dial-out capability.
RS-232 Setup
BESTCOMSPlus ® Navigation Path: Settings Explorer, Communications, RS232 Setup
HMI Navigation Path: Settings > Communication > RS232 Setup
The RS-232 port supports a user-selectable baud rate of 9,600, 19,200, 38,400, 57,600, or 115,200.
Seven or eight data bits per character can be selected. Odd, even, or no parity is supported. One or two
stop bits are selectable. Refer to Figure 161.

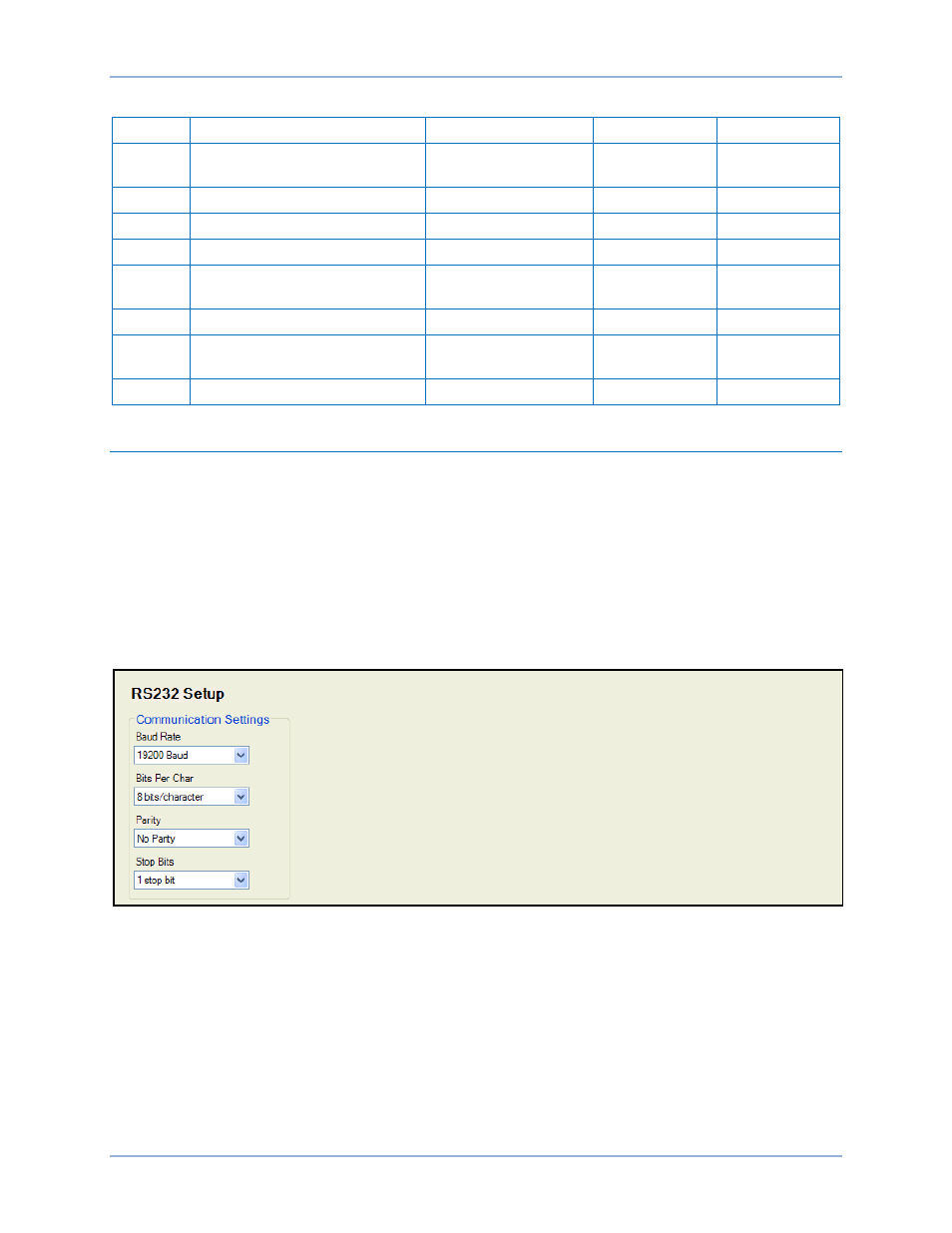

Figure 161. Settings Explorer, Communications, RS232 Setup
External Modem
BESTCOMSPlus ® Navigation Path: Settings Explorer, Communications, Modem Setup
HMI Navigation Path: Settings > Communication > Modem Setup
A connection with an external, user-supplied modem provides communications between the DGC-
2020HD and a PC via BESTCOMSPlus. Modem connection to a PC running BESTCOMSPlus provides
remote metering, setting, annunciation, and control of the DGC-2020HD. Dial-out capability allows the
DGC-2020HD to dial up to four telephone numbers and annunciate user-selected conditions to specified
pagers.
DGC-2020HD Communication
