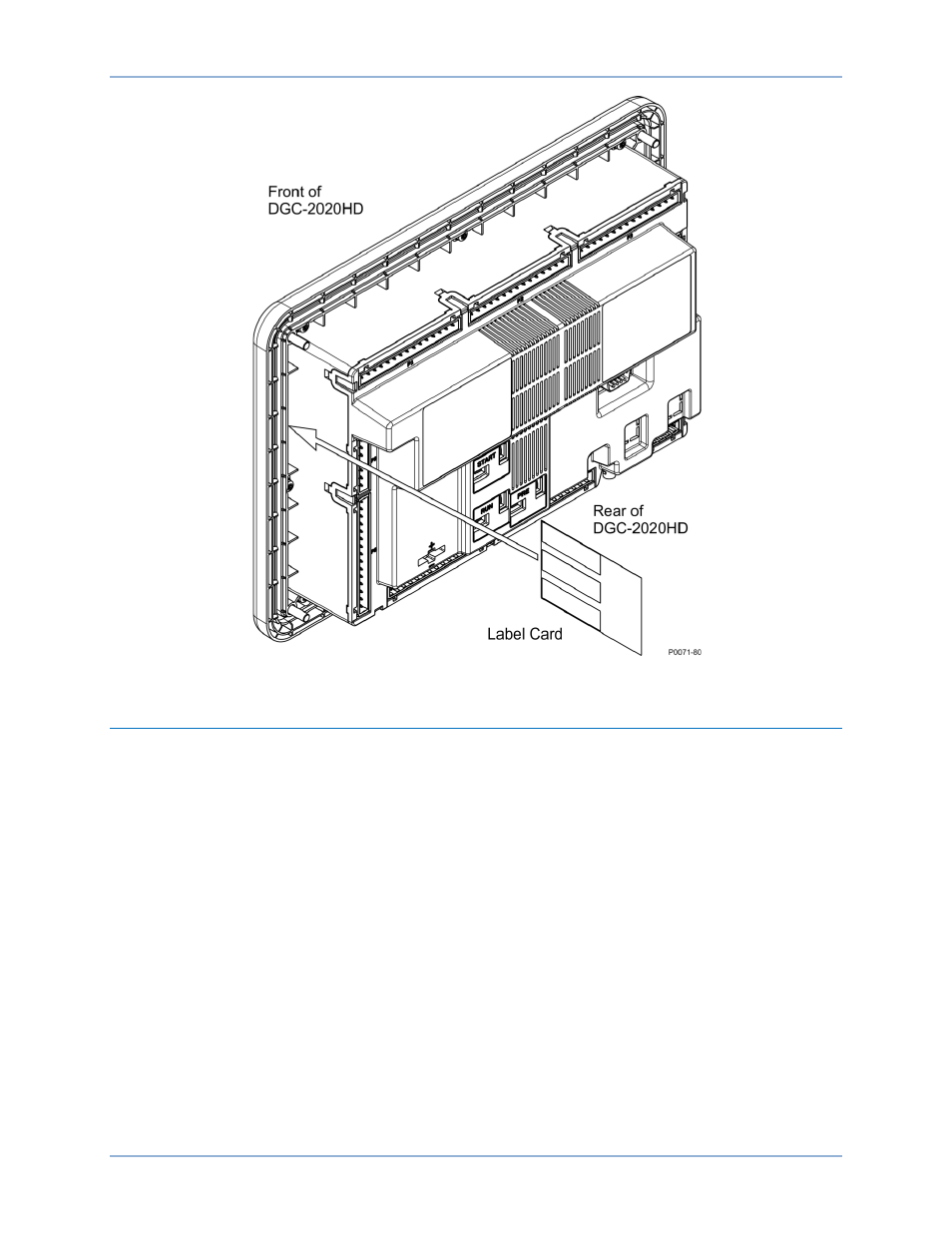

Figure 16. Label Card Slot Location
Display Operation and Navigation
The front panel display is used to locally make settings changes and display metering values. Refer to
locators K, L, and M in Table 20 for information on changing settings through the front panel and
navigating through the screens.
Login and Permissions
When attempting to change a protected setting, the DGC-2020HD displays the Login Required screen. To
log in, use the Up/Down arrow keys to scroll through the characters. Use the Left/Right arrow keys to
enter more characters. Once the user name and password have been entered, press the Edit key to login.
To logout, press the Reset key while viewing any screen other than the Overview screen.
If communication access is active through the modem, USB, or Ethernet port, the front panel will display
REMOTE COMMS and the overview screen. If the remote user is logged in to BESTCOMSPlus with
"Control" security access or higher, the front panel can only be used for viewing metering data and
settings information. Remote security access must be ended before modifying settings through the front
panel.
Overview Screen and Configurable Metering
The overview screen is the uppermost screen in the menu structure and is displayed by default. It
displays metering information as well as a one-line diagram of the system’s breaker configuration.
Metering information can be set to standard or scrolling. When set to standard, only the following
parameters are displayed:
