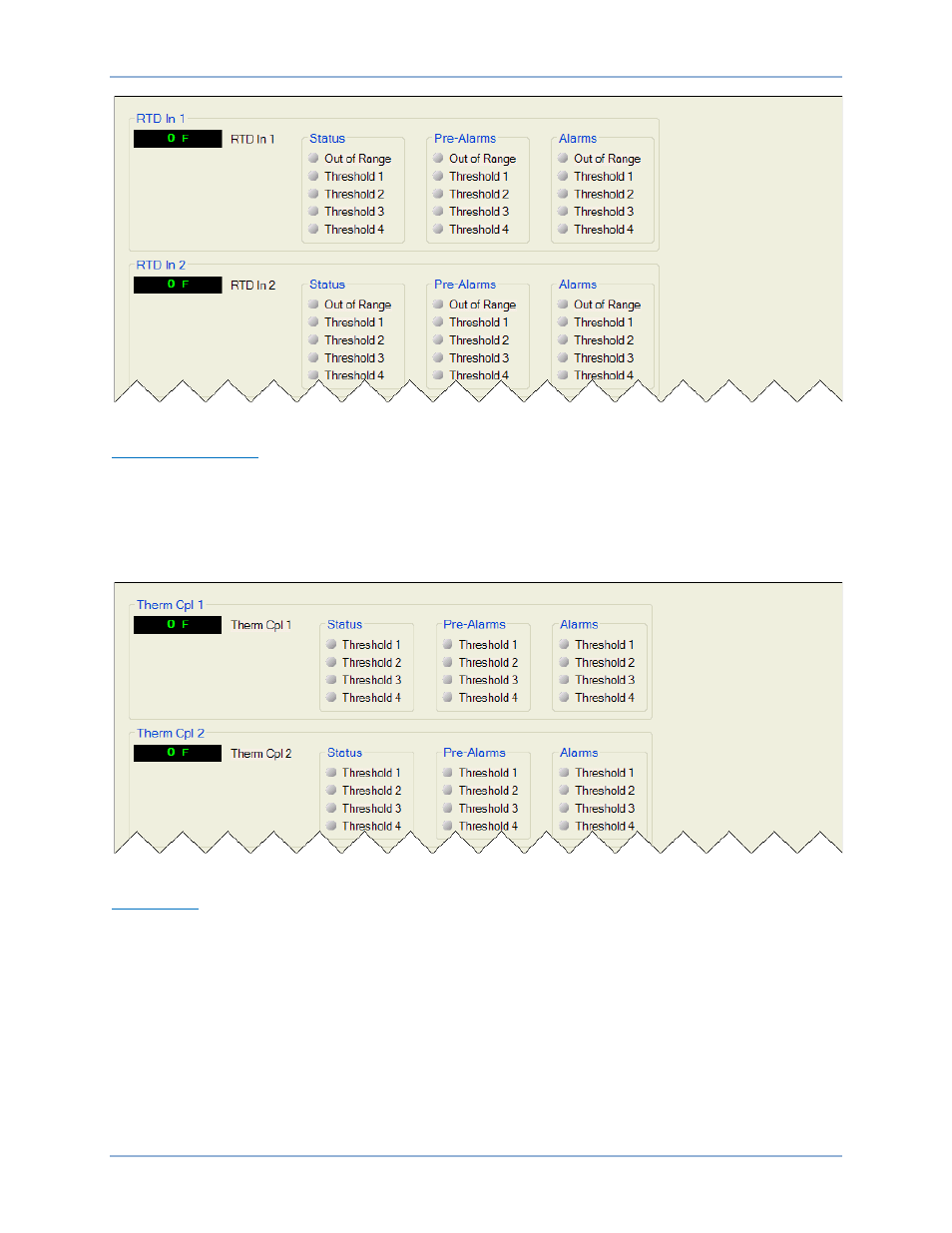

Figure 103. Metering Explorer, Inputs, Remote Analog Inputs, AEM 1 Inputs, AEM 1 RTD Inputs Screen
Thermocouple Inputs
BESTCOMSPlus Navigation Path: Metering Explorer, Inputs, Remote Analog Inputs, AEM # Inputs,
AEM # Thermocouple Inputs
Front Panel Navigation Path: Metering > Status > Inputs > Remote Analog Input Values > AEM-2020 #
> ThermoInput Temperatures / Raw Thermocouple Inputs
Figure 104 illustrates the BESTCOMSPlus Thermocouple Inputs screen.
Figure 104. Metering Explorer, Inputs, Remote Analog Inputs, AEM 1 Inputs, AEM 1 Thermocouple Inputs
Input Values
BESTCOMSPlus Navigation Path: Metering Explorer, Inputs, Remote Analog Inputs, AEM # Inputs,
AEM # Input Values
Front Panel Navigation Path: Metering > Status > Inputs > Remote Analog Input Values > AEM-2020 #
Figure 105 illustrates the BESTCOMSPlus Input Values screen.
