222 9469300990 Rev B

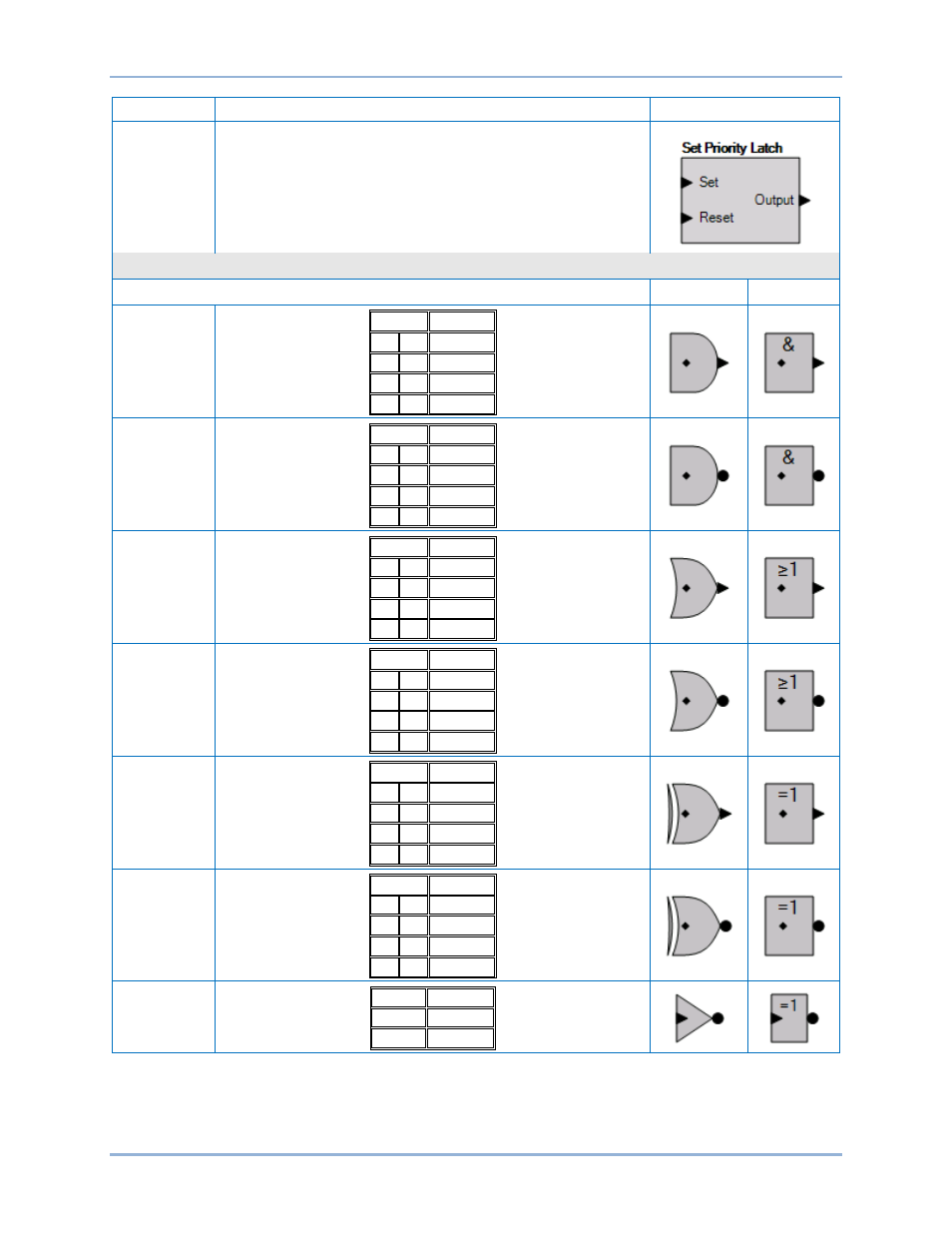

Name Description Symbol
Set Priority
Latch The latch is set when the Set input is true. The latch is cleared
when the Set input is false and the Reset input is true.
Logic Gates
ANSI * IEC *
AND Input Output
0 0 0
0 1 0
1 0 0
1 1 1
NAND Input Output
0 0 1
0 1 1
1 0 1
1 1 0
OR
Input Output
0 0 0
0 1 1
1 0 1
1 1 1
NOR Input Output
0 0 1
0 1 0
1 0 0
1 1 0
XOR Input Output
0 0 0
0 1 1
1 0 1
1 1 0
XNOR Input Output
0 0 1
0 1 0
1 0 0
1 1 1
NOT
(INVERTER)
Input Output
0 1
1 0
BESTlogic
™Plus
DGC-2020HD
