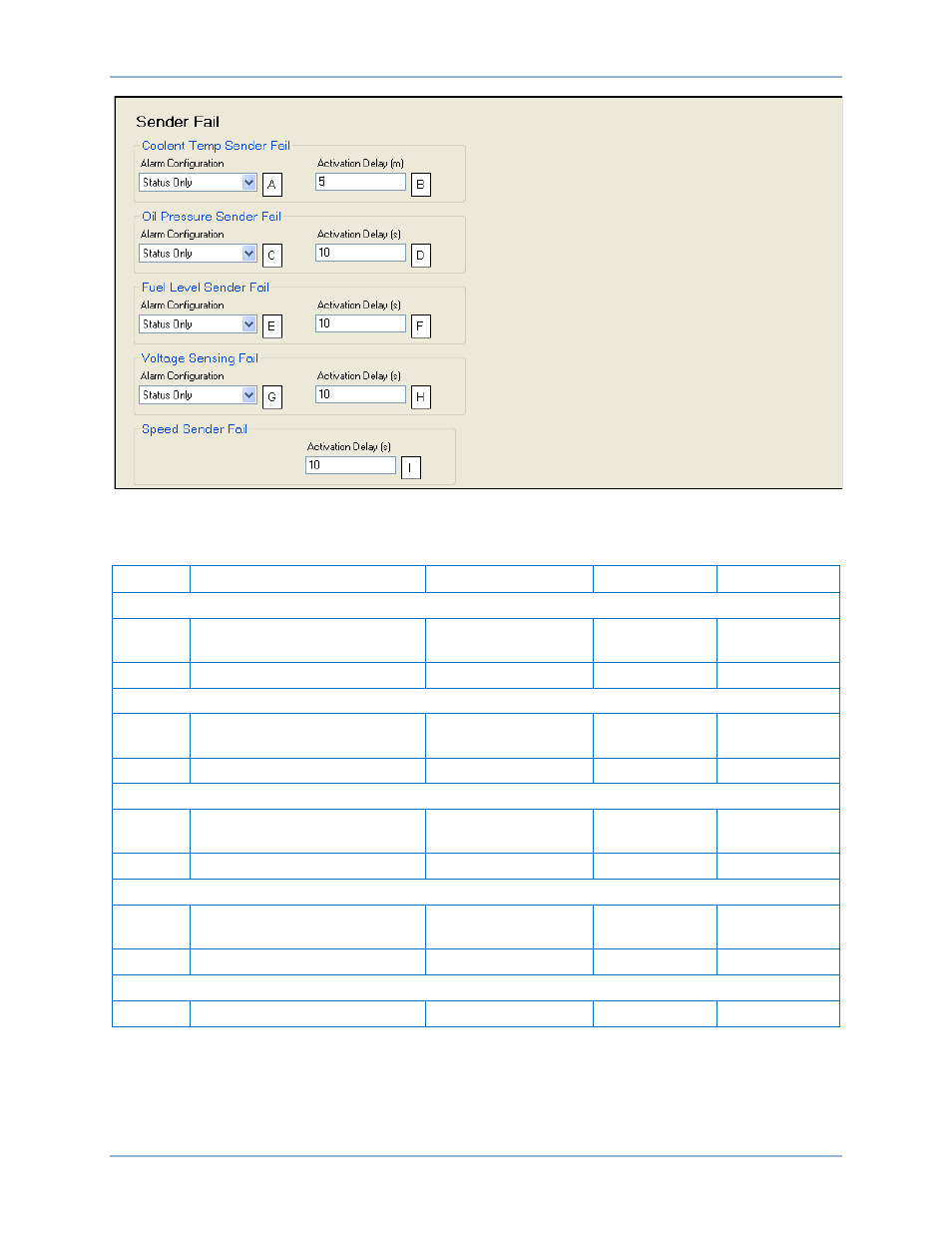

Figure 131. Settings Explorer, Alarm Configuration, Sender Fail
Table 52. Settings for Sender Fail
Locator Setting Range Increment Unit
Coolant Temp Sender Fail Settings
A Alarm Configuration
Status Only, Pre-
Alarm, or Alarm
n/a n/a
B Activation Delay 5 to 30 1 minutes
Oil Pressure Sender Fail Settings
C Alarm Configuration
Status Only, Pre-
Alarm, or Alarm
n/a n/a
D Activation Delay 0 to 300 1 seconds
Fuel Level Sender Fail Settings
E Alarm Configuration
Status Only, Pre-
Alarm, or Alarm
n/a n/a
F Activation Delay 0 to 300 1 seconds
Voltage Sensing Fail Settings
G Alarm Configuration
Status Only, Pre-
Alarm, or Alarm
n/a n/a
H Activation Delay 0 to 300 1 seconds
Speed Sender Fail Settings
I Activation Delay 0 to 300 1 seconds
The speed sender fail alarm is always enabled. A user-adjustable time delay is provided for each
sender/sensing alarm/pre-alarm.
Alarm and pre-alarm annunciations for loss of engine speed signals is not user-programmable and
operates as follows. If the MPU (magnetic pickup) or generator frequency is programmed as the sole
engine speed source and that signal source fails, an alarm (and shutdown) is triggered. If the engine
