9469300990 Rev B 169
one AEM-2020. An output whose value is outside of the specified range is annunciated by the
corresponding Status, Pre-alarm, or Alarm indicator. The status is TRUE when the output indicator is lit.
See Figure 111.

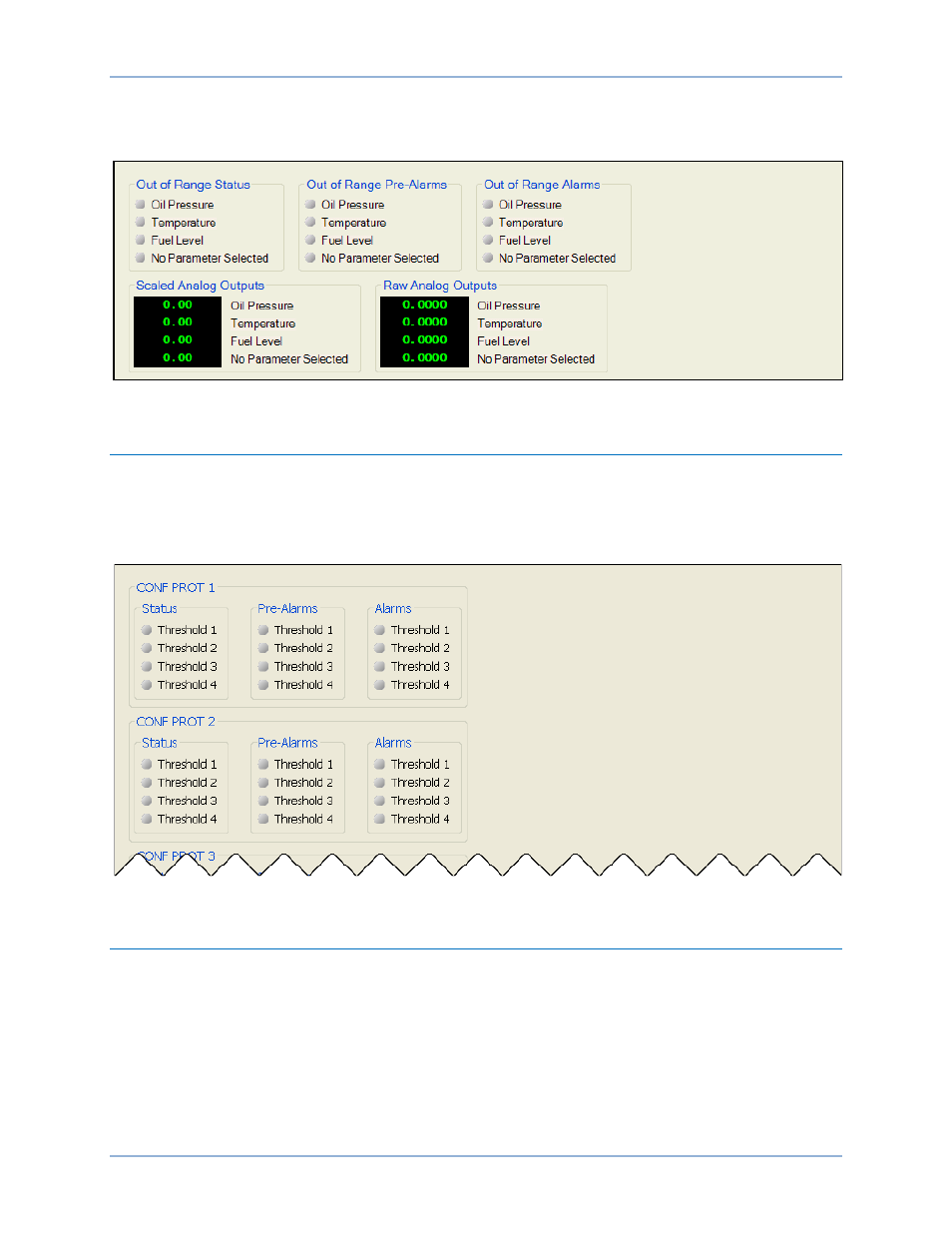

Figure 111. Metering Explorer, Outputs, Remote Analog Outputs, AEM 1 Analog Outputs Screen
Configurable Protection
BESTCOMSPlus Navigation Path: Metering Explorer, Configurable Protection
Front Panel Navigation Path: Metering > Status > Configurable Protection > Configurable Protection #
This screen displays threshold status for each configurable protection element. A lit indicator denotes that
a value has exceeded its threshold. See Figure 112.
Figure 112. Metering Explorer, Configurable Protection Screen
J1939 ECU
ECU Data
BESTCOMSPlus Navigation Path: Metering Explorer, J1939 ECU, ECU Data
Front Panel Navigation Path: Metering > J1939 ECU > J1939 Data
The ECU Data metering screen (Figure 113) provides information and metering of engine components.
Under certain circumstances, parameters may indicate one of the following codes: NA (not applicable),
NC (not connected), NS (not sent), or SF (sender fail). See the Communication chapter for their
descriptions.
DGC-2020HD Metering
