9469300990 Rev B 217

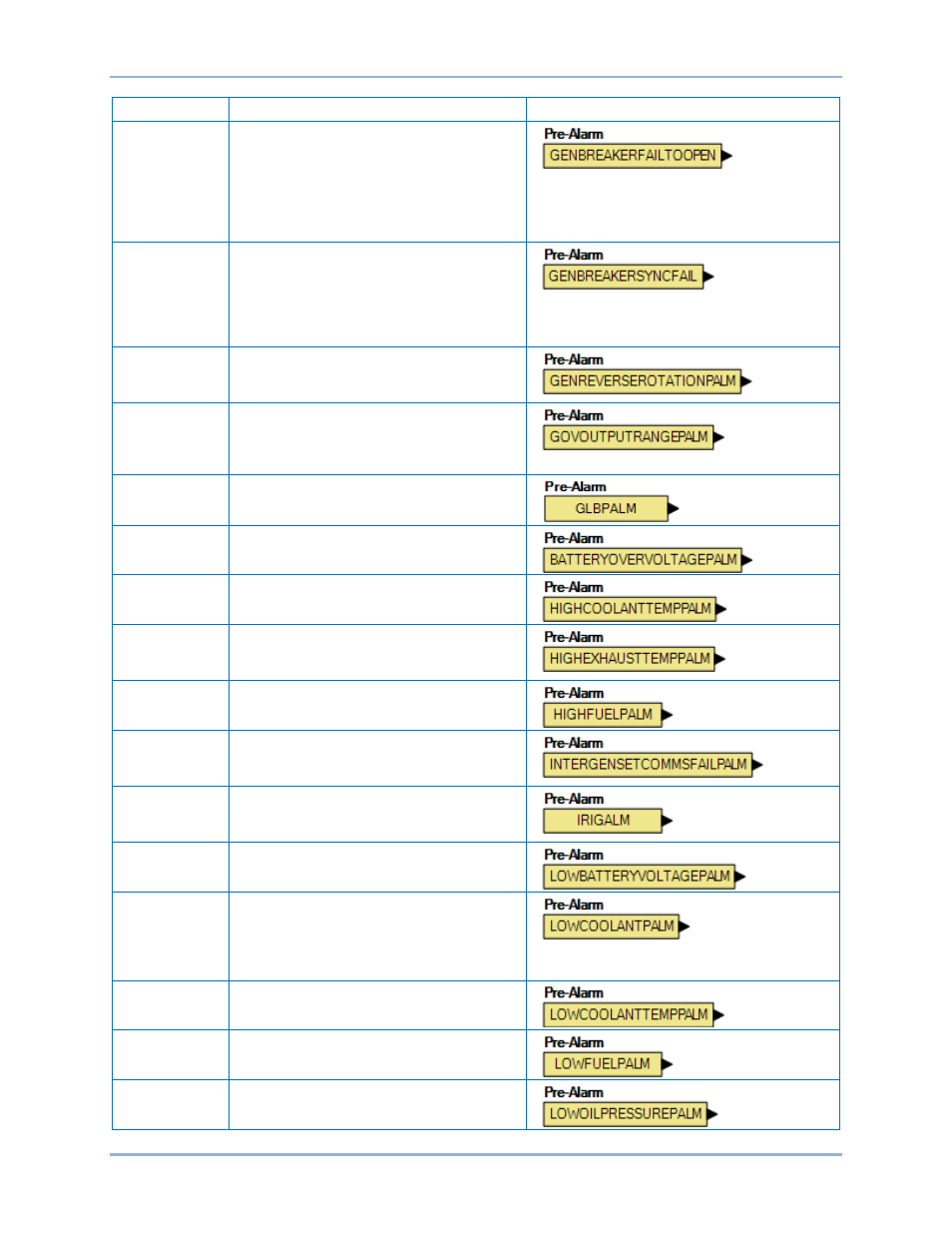

Name Description Symbol
Generator
Breaker Open
Failure True when a generator breaker open fail pre-
alarm occurs. The pre-alarm occurs when
the DGC-2020HD has issued a generator
breaker open output but does not receive a
generator breaker status input that indicates
the breaker has opened before the breaker
close wait time has expired.
Generator
Breaker Sync
Failure True when a generator breaker sync fail pre-
alarm occurs. The pre-alarm occurs when
the synchronizer is running and attempting
to close the generator breaker but the sync
fail activation delay expires prior to achieving
breaker closure.
Generator
Reverse
Rotation Status True when the Generator rotation is opposite
of the Phase Rotation setting.
GOV Output
Out of Range True when GOV Output is the selected
parameter, Out of Range Alarm Type is set
to Pre-Alarm, and the threshold has been
exceeded.
Global Pre-
Alarm True when one or more pre-alarms are set.
High Battery
Voltage True when the Battery Overvoltage Pre-
Alarm threshold has been exceeded.
High Coolant
Temp True when the High Coolant Temp Pre-
Alarm threshold has been exceeded.
High Exhaust
Temperature True when Diesel Particulate Filter (DPF)
lamp status broadcast over CAN bus
indicates high exhaust temperature.
High Fuel Level True when the High Fuel Level Pre-Alarm
settings have been exceeded.
Inter Generator
Comm Fail True when the DGC-2020HD detects that an
individual generator previously connected to
a generator network has lost connection.
IRIG Sync Lost True when the IRIG signal is lost. The pre-
alarm monitors for IRIG signal loss once a
valid signal is detected at the IRIG port.
Low Battery
Voltage True when the Low Battery Voltage Pre-
Alarm settings have been exceeded.
Low Coolant
Level True when the Low Coolant Level function is
configured as a pre-alarm and the activation
delay has expired. In addition, true when
CAN bus is enabled and the Low Coolant
Level Alarm threshold has been exceeded.
Low Coolant
Temp True when the Low Coolant Temp Pre-Alarm
threshold has been exceeded.
Low Fuel Level True when the Low Fuel Level Pre-Alarm
threshold has been exceeded.
Low Oil
Pressure True when the Low Oil Pressure Pre-Alarm
threshold has been exceeded.
DGC-2020HD BESTlogic
™Plus
