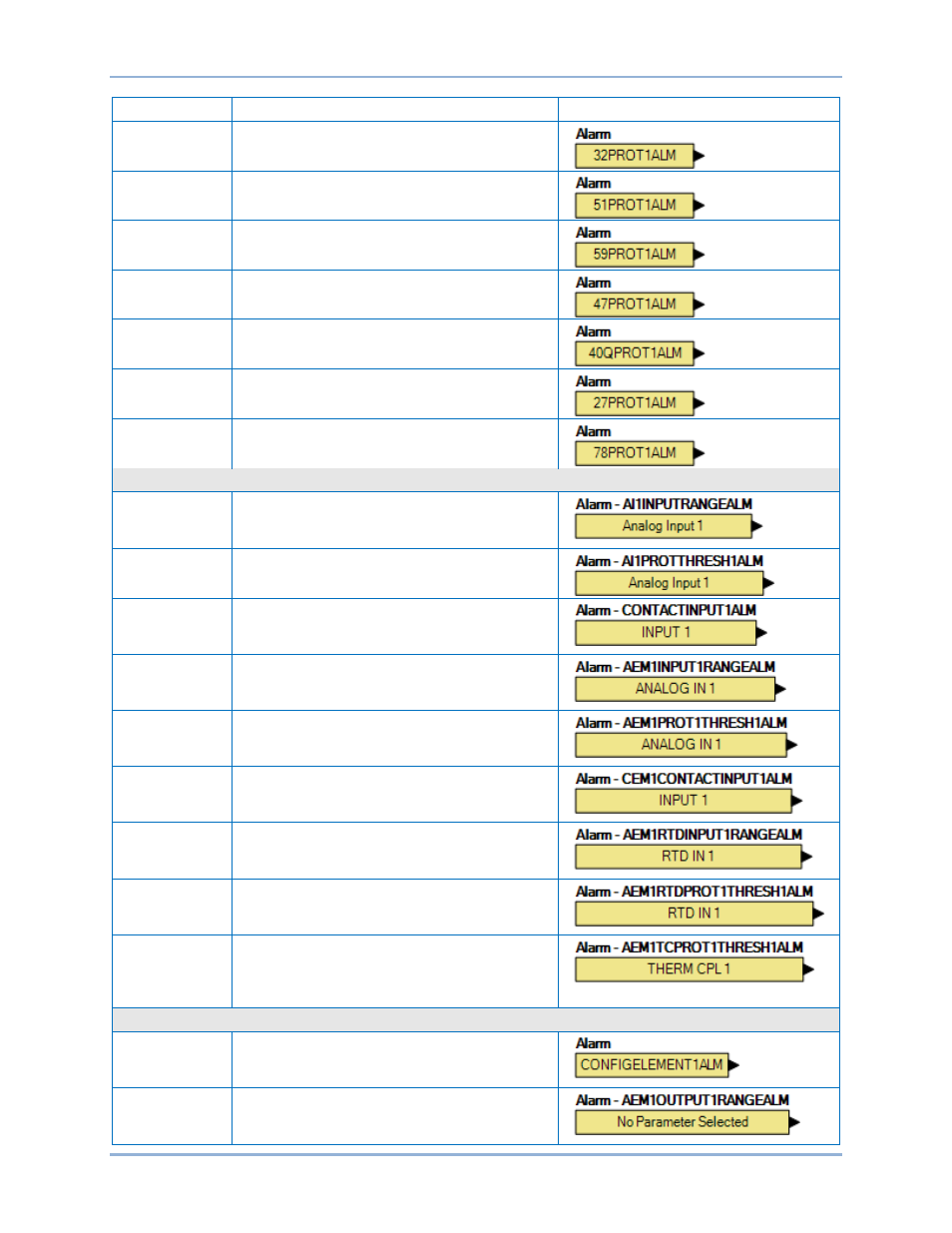

Name Description Symbol
Loss of
Excitation True when the 32-x element is configured as an
alarm and has tripped.
Overcurrent True when the 51-x element is configured as an
alarm and has tripped.
Overvoltage True when the 59-x element is configured as an
alarm and has tripped.
Phase
Imbalance True when the 47-x element is configured as an
alarm and has tripped.
Power True when the 40Q-x element is configured as an
alarm and has tripped.
Undervoltage True when the 27-x element is configured as an
alarm and has tripped.
Vector Shift True when the 78-x element is configured as an
alarm and has tripped.
Programmable Inputs
Analog Inputs
Out of Range True when the analog input connection is open
and the Out of Range Alarm Type is set to Alarm.
Analog Inputs
Threshold True when the Alarm Configuration is set to
Alarm and the threshold has been exceeded.
Contact Inputs
Input x True when Contact Input x is active, the Alarm
Configuration is set to Alarm, and the activation
delay has expired.
Remote Analog
Inputs
Out of Range True when the remote analog input connection is
open and the Out of Range Alarm Type is set to
Alarm.
Remote Analog
Inputs
Threshold True when the Alarm Configuration is set to
Alarm and the threshold has been exceeded.
Remote Contact
Inputs
Input x True when Remote Contact Input x is active, the
Alarm Configuration is set to Alarm, and the
activation delay has expired.
Remote RTD
Inputs
Out of Range True when the remote RTD input connection is
open and the Out of Range Alarm Type is set to
Alarm.
Remote RTD
Inputs
Threshold True when the Alarm Configuration is set to
Alarm and the threshold has been exceeded.
Remote
Thermocouple
Inputs
Threshold True when the Alarm Configuration is set to
Alarm and the threshold has been exceeded.
Programmable Outputs
Configurable
Elements
Element x True when the Configurable Element x logic
element is true, Alarm Configuration is set to
Alarm, and the Activation Delay has expired.
Remote Analog
Outputs
Out of Range True when the remote analog output connection
is open and the Out of Range Alarm Type is set
to Alarm.
BESTlogic
™Plus
DGC-2020HD
