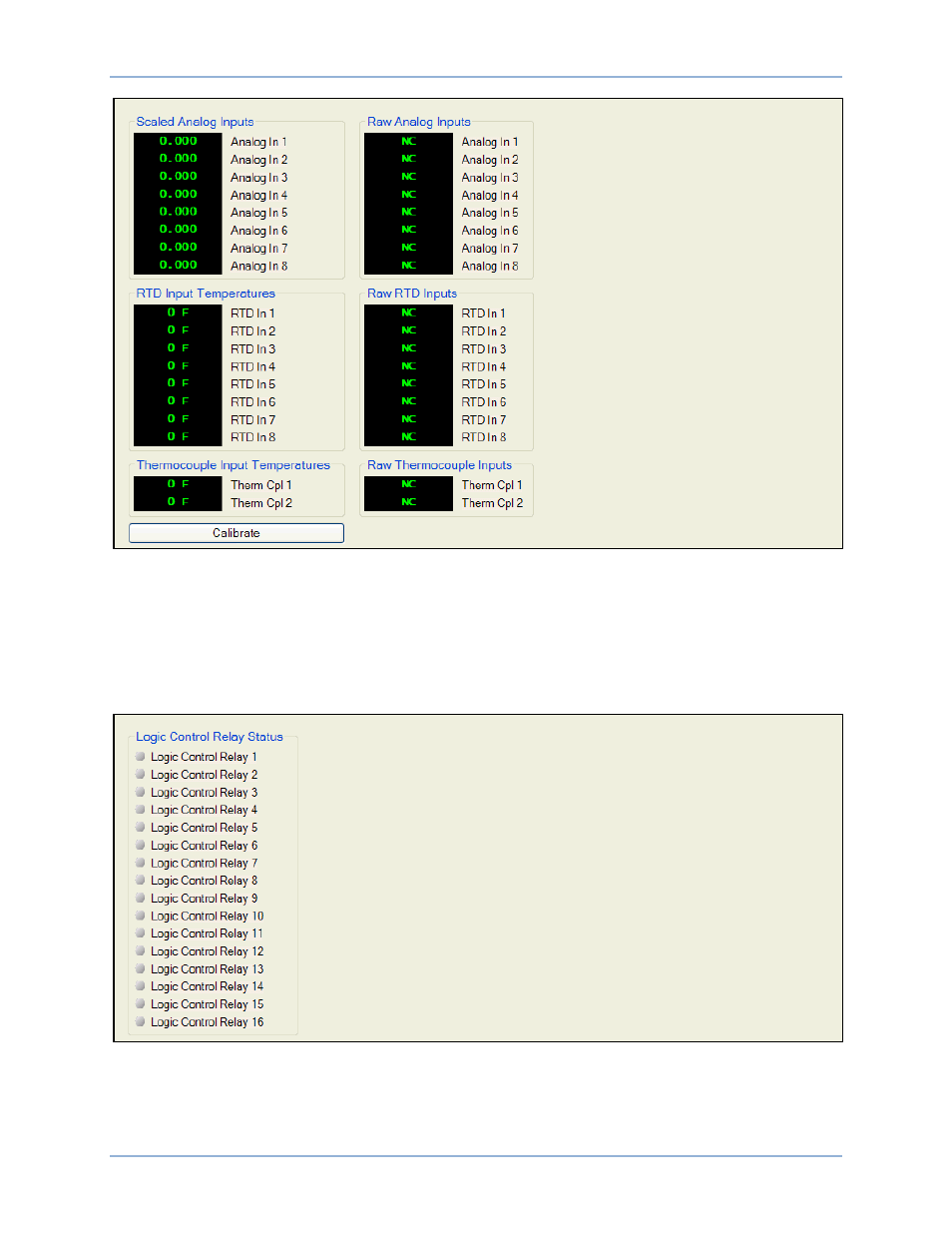

Figure 105. Metering Explorer, Inputs, Remote Analog Inputs, AEM 1 Inputs, AEM 1 Input Values
Logic Control Relays
BESTCOMSPlus Navigation Path: Metering Explorer, Inputs, Logic Control Relays
Front Panel Navigation Path: Metering > Status > Logic Control Relays
This screen displays the status of the sixteen logic control relays. A logic control relay input is true when
the corresponding indicator is lit. See Figure 106.
Figure 106. Metering Explorer, Inputs, Logic Control Relays Screen
Metering DGC-2020HD
