Multiple Generator Management
Multiple generator management settings consist of settings for AVR output, governor output, load share
output, demand start/stop, generator sequencing, and network configuration.
AVR Output
The AVR output of the DGC-2020HD is used to change the voltage setpoint of the generator. If the
response is set for increasing, an increased bias will raise the voltage. If the response is set for
decreasing, an increased bias will lower the voltage. Settings are provided for minimum output current,
maximum output current, minimum output voltage, and maximum output voltage.

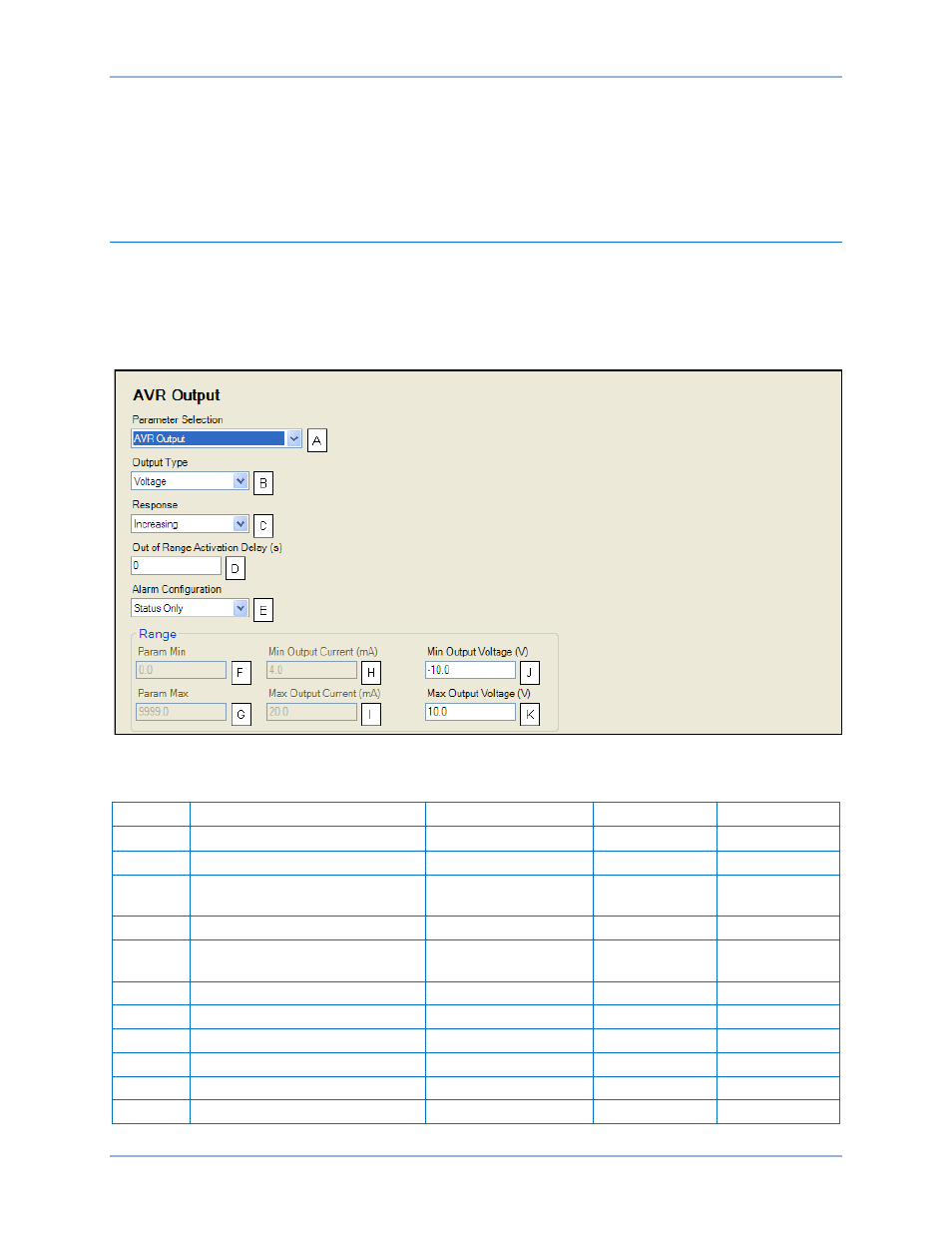

The BESTCOMSPlus ® AVR Output screen is illustrated in Figure 61. Settings are listed in Table 39.
Figure 61. Settings Explorer, Multigen Management, AVR Output
Table 39. Settings for AVR Output
Locator Setting Range Increment Unit
A Parameter Selection ∗ n/a n/a
B Output Type Voltage or Current n/a n/a
C Response
Increasing or
Decreasing
n/a n/a
D Out of Range Activation Delay 0 to 300 1 seconds
E Alarm Configuration
Status Only, Pre-
Alarm, or Alarm
n/a n/a
F Param Min –999,999 to 999,999 0.1 n/a
G Param Max –999,999 to 999,999 0.1 n/a
H Min Output Current 4 to 20 0.1 milliamps
I Max Output Current 4 to 20 0.1 milliamps
J Min Output Voltage –10 to 10 0.1 volts
K Max Output Voltage –10 to 10 0.1 volts
∗ See Parameter Selection, below.
