2-32 Installation and Wiring
ArmorConnect Cable Ratings
The ArmorConnect power media cables are rated per UL Type TC
600V 90 °C Dry 75 °C Wet, Exposed Run (ER) or MTW 600V 90 °C
or STOOW 105 °C 600V - CSA STOOW 600V FT2.
Branch Circuit Protection Requirements for ArmorConnect
Three-Phase Power Media
When using ArmorConnect three-phase power media, only fuses can
be used for the motor branch circuit protective device, for the group
motor installations. The following fuse types are recommended: Class
CC, T, or J type fuses.

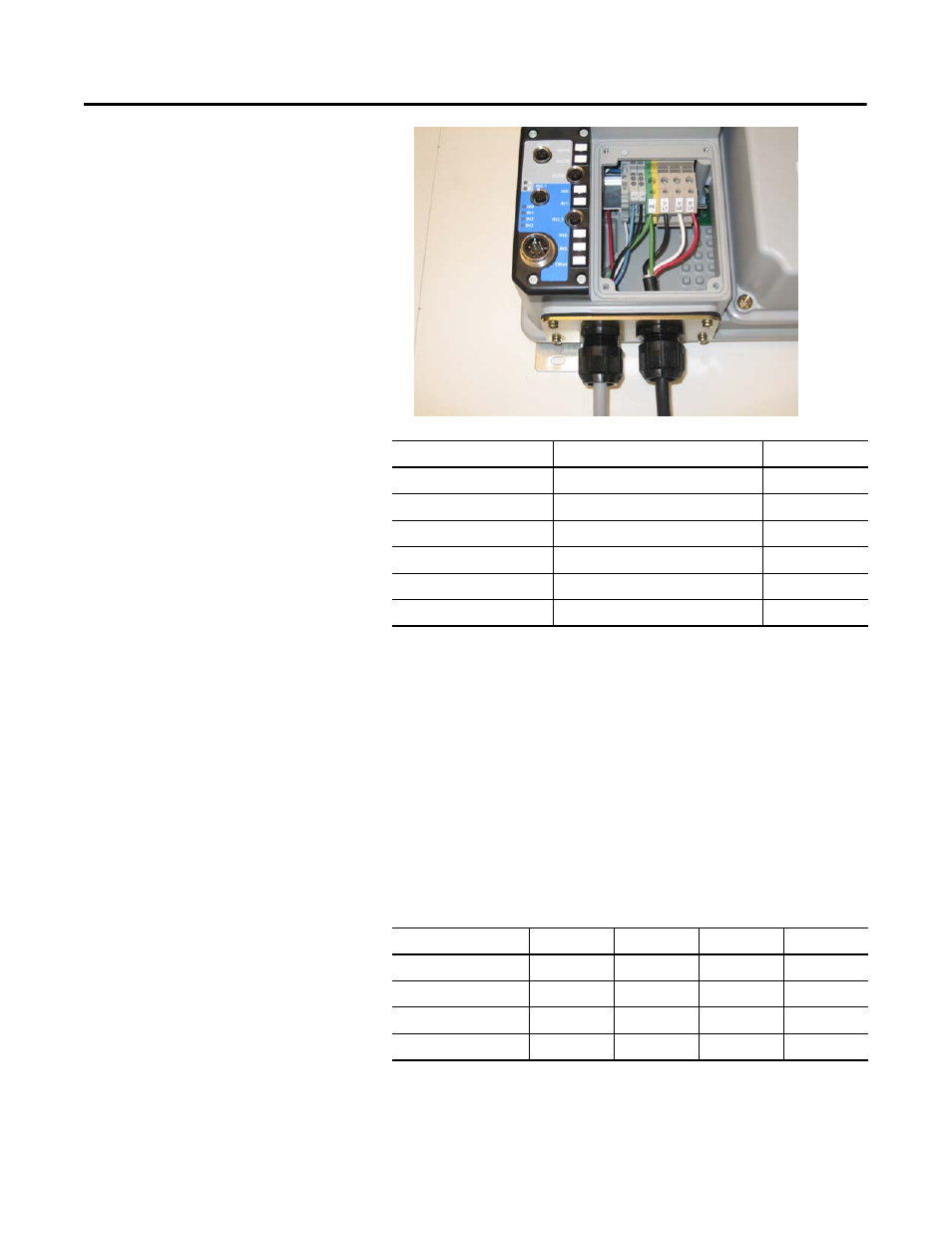

Terminal Designations Description Color Code
A1 (+) Control Power Input Blue
A2 (-) Control Power Common Black
PE Ground Green/Yellow
1/L1 Line Power - Phase A Black
2/L2 Line Power - Phase B White
3/L3 Line Power - Phase C Red
Maximum Ratings
Voltage (V) 480Y/277 480/480 600Y/347 600/600
Sym. Amps RMS 65 kA 65 kA 65 kA 65 kA
Time Delay Fuse 50 A 30 A 30 A 30 A
Non-Delay Fuse 100 A 60 A 60 A 60 A
