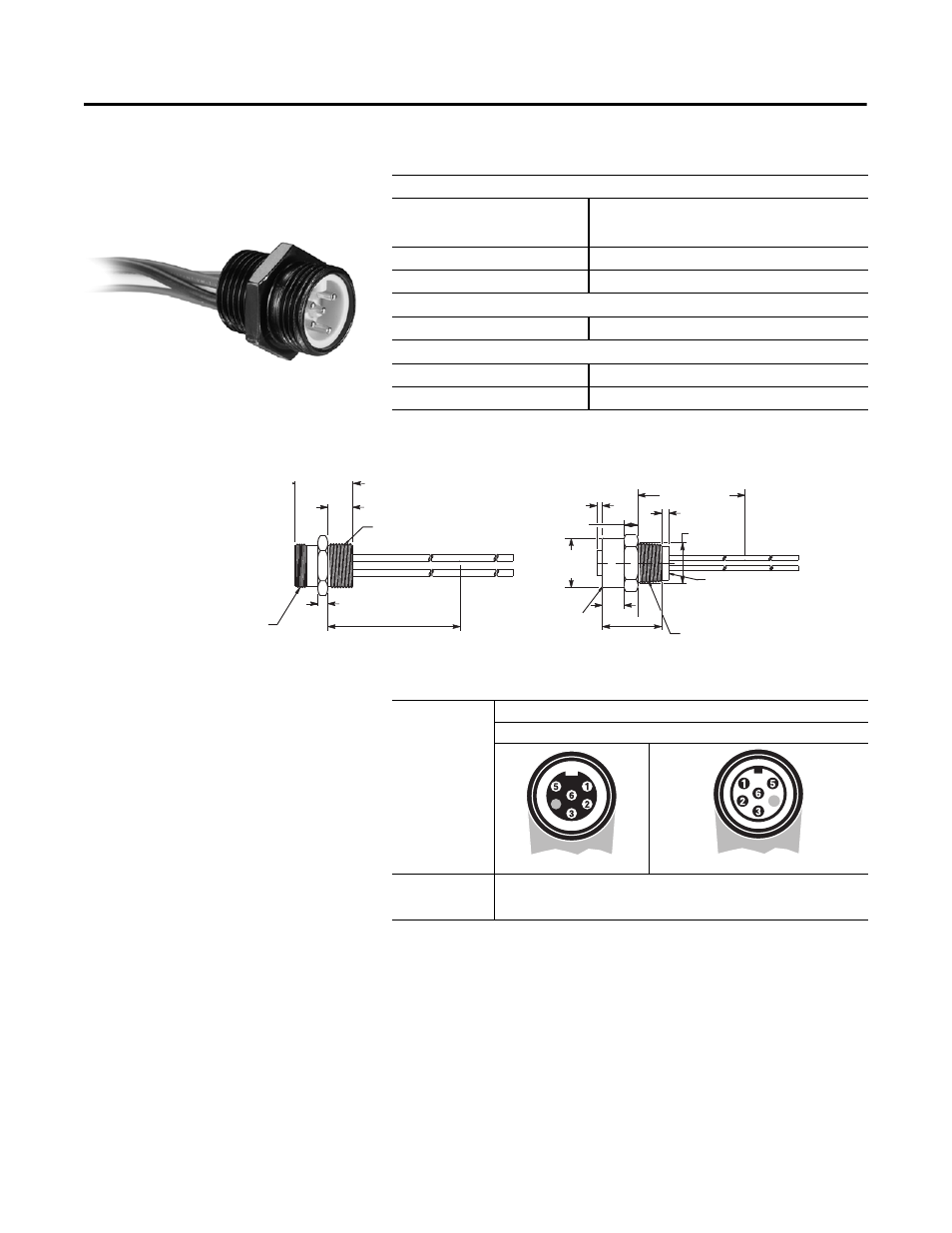

A-22 Specifications
Receptacles
Specifications
Dimensions
Dimensions are approximate. Illustrations are not drawn to scale.
Pinout and Color Code
Mechanical
Receptacle Shell
Male: Black epoxy coated zinc diecast or
316 Stainless Steel
Female: Black anodized Aluminum or 316 Stainless Steel
Insert Yellow PVC
Contacts Brass / gold over palladium Nickel
Electrical
Assembly Rating 600V, 10 A
Environmental
Enclosure Type Rating IP67, IP69K 1200 psi washdown
Operating Temperature -20…90°C (-4…194°F)
25.07
(0.98) Dia.
3.81 (0.15)
28.1 (1.11)
12.2 (0.48)
4.78 (0.18)
1/2 in. 14 NPT thread
7/8 in. 16 UNS-2A
thread
152.4/203.2 (6.0/8.0)
7.32 (0.28)
177.8 (7.0)
3.81 (0.15)
21.3 (0.84)
Dia.
Epoxy Filled
7/8 in. 16 UNS-2A
thread
11.1
(0.44)
30.5 (1.2) 1/2 in. 14 NPT
Face View Pinout
6-pin/5 used
Female Male
Color Code
1Red/Not used 4 Blank/Not used
2 Black (-) 5 Blue (+)
3 Green (GND) 6 White (S2)
