Specifications A-7

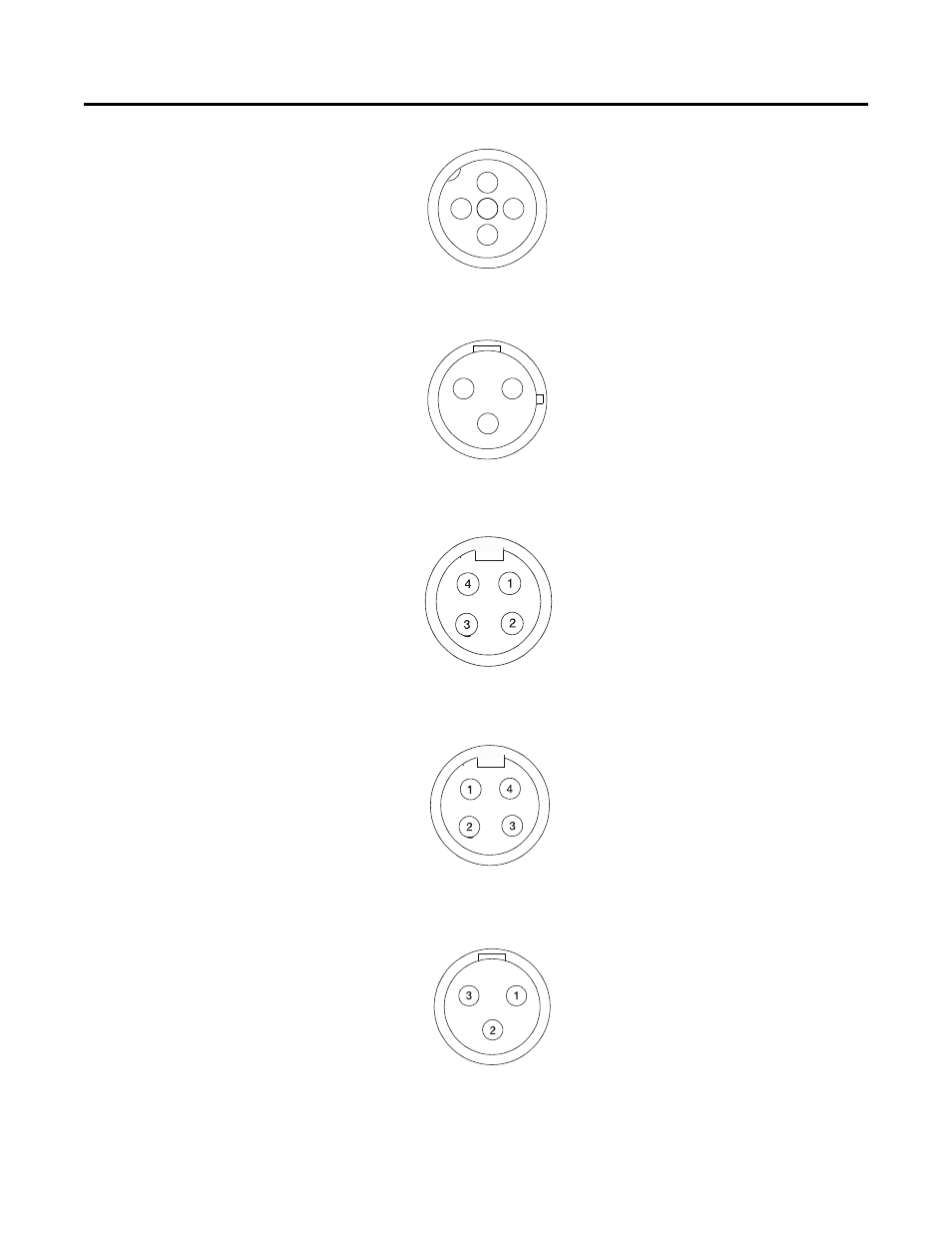

Bulletin 283, Continued Figure A.9 External Connections for Input Connector
Figure A.10 External Connections for Output Connector
Figure A.11 External Connections for Motor Connector (
≤
5 Hp @ 460V AC)
Figure A.12 External Connections for Motor Connector (
>
5 Hp @ 460V AC)
Figure A.13 External Connections for Source Brake Connector
Pin 1: +V Out
Pin 2: Input
Pin 3: Comm
Pin 4: Input
Pin 5: NC (No Connection)
Pin 1: PE
Pin 2: Return
Pin 3: Relay Out
Pin 1: T1 - Black
Pin 2: T2 - White
Pin 3: T3 - Red
Pin 4: Ground - Green/Yellow
Pin 1: T1 - Black
Pin 2: Ground - Green/Yellow
Pin 3: T3 - Red
Pin 4: T2 - White
Pin 1: L1 - Black
Pin 2: Ground - Green/Yellow
Pin 3: L2 - White
2
3 5
4
1
1
3 2
