5-44 Bulletin 284 Programmable Parameters for Volts per Hertz Controllers

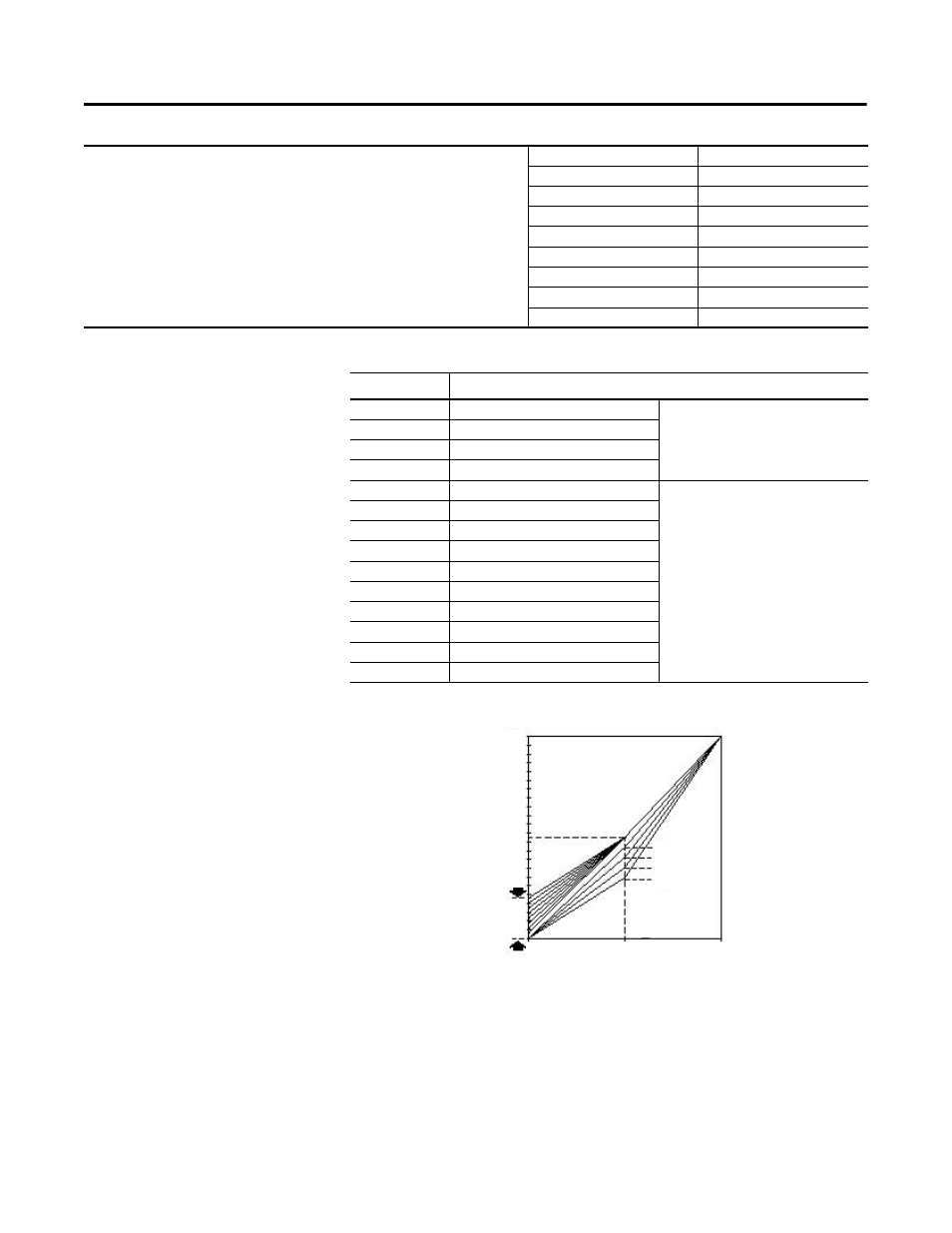

Figure 5.2
Boost Select
Sets the boost voltage (% of Parameter 131 [Motor NP Volts]) and redefines the Volts
per Hz curve. Active when Parameter 225 (Torque Perf Mode) = 0V/Hz Drive may
add additional voltage unless Option 5 is selected.
See Table 5.E for details
Parameter Number 184
Related Parameters 104, 131, 132
Access Rule GET/SET
Data Type UINT
Group Advanced Program Group
Units —
Minimum Value 1
Maximum Value 14
Default Value 8
Table 5.E Boost Select Options
Options Description
1 30.0, VT
Variable Torque (Typical fan/pump
curves)
2 35.0, VT
3 40.0, VT
4 45.0, VT
5 0.0 no IR
Constant Torque
6 0.0
7 2.5, CT (Default for 5 Hp/3.7 kW Drive)
8 5.0, CT Default
9 7.5,CT
10 10.0,CT
11 12.5,CT
12 15.0,CT
13 17.5,CT
14 20.0,CT
% Parameter 132 (Motor NP Hertz)
% Parameter 131 (Motor NP V
olts)
1/2 (Motor NP Volts)
Settings
5...14
0 50 100
50
100
4
1
2
3
1/2
(Motor NP Hertz)
