Specifications A-15
Pinout and Color Code

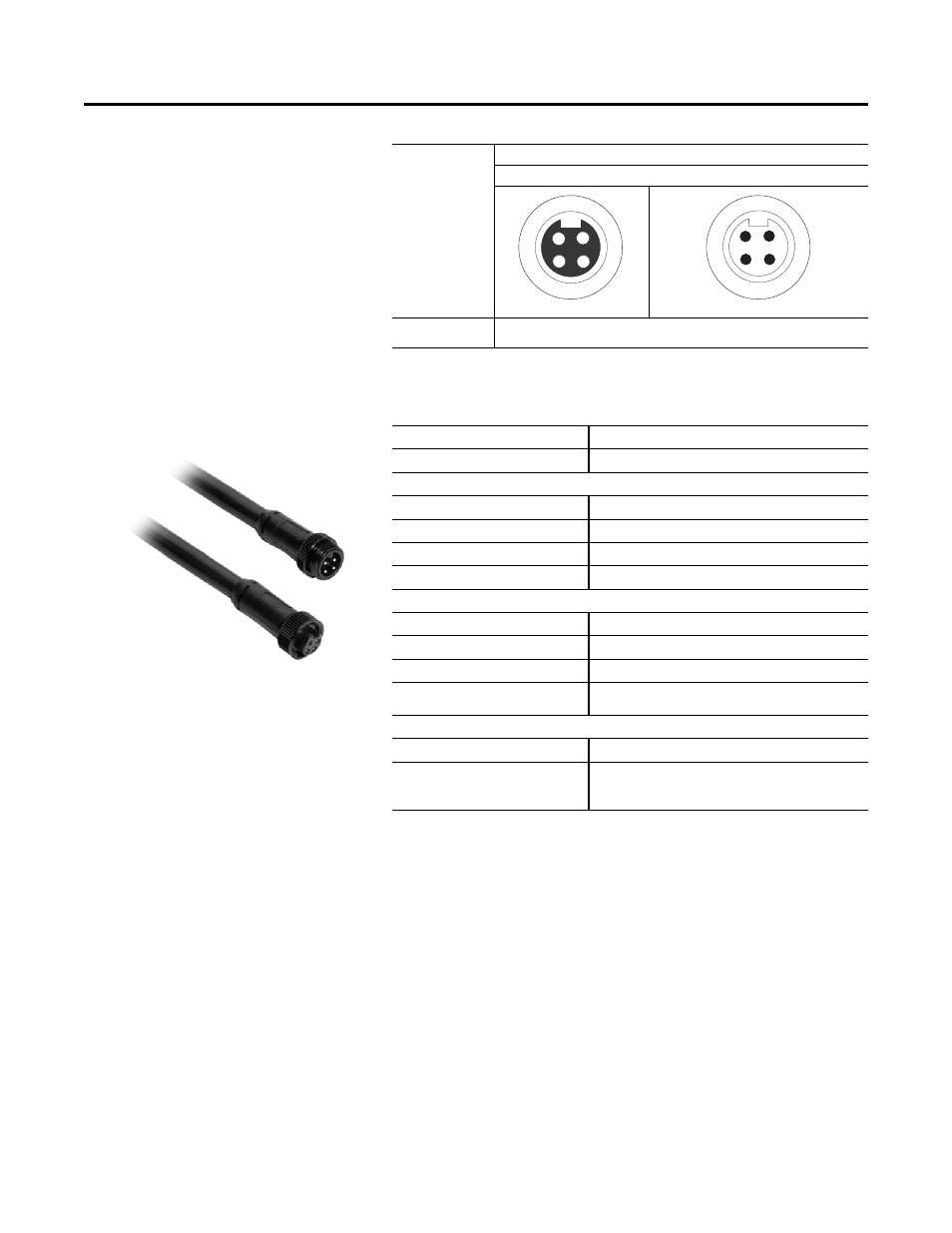

Drop Cables
Specifications
Face View Pinout
4-pin
Female Male
Color Code
1 Black 3 Red
2 Green/Yellow Extended PIN 4 White
4 1
3 2
4
3
1
2
Certifications UL
Standards Compliance UL 2237
Mechanical
Coupling Nut Black Anodized Aluminum or 316 Stainless Steel
Housing Black PVC
Insert Black PVC
Cable Diameter 0.43 in. +/- 0.12 in. (10.9 mm +/- 0.5 mm)
Electrical
Contacts Brass with Gold over Nickel Plating
Cable Black PVC, dual rated UL TC/Open Wiring and STOOW
Cable Rating 600V AC/DC
Assembly Rating
600V @ 10 or 15 A, Symmetrical Amps RMS Fault: 65 kA
when used with Class CC, T, or J type fuses
Environmental
Enclosure Type Rating IP67, NEMA 4; IP69K 1200 psi washdown
Operating Temperature
UL Type TC 600V 90 °C Dry 75 °C Wet, Exposed Run (ER) or
MTW 600V 90 °C or STOOW 105 °C 600V -
CSA STOOW 600V FT2
