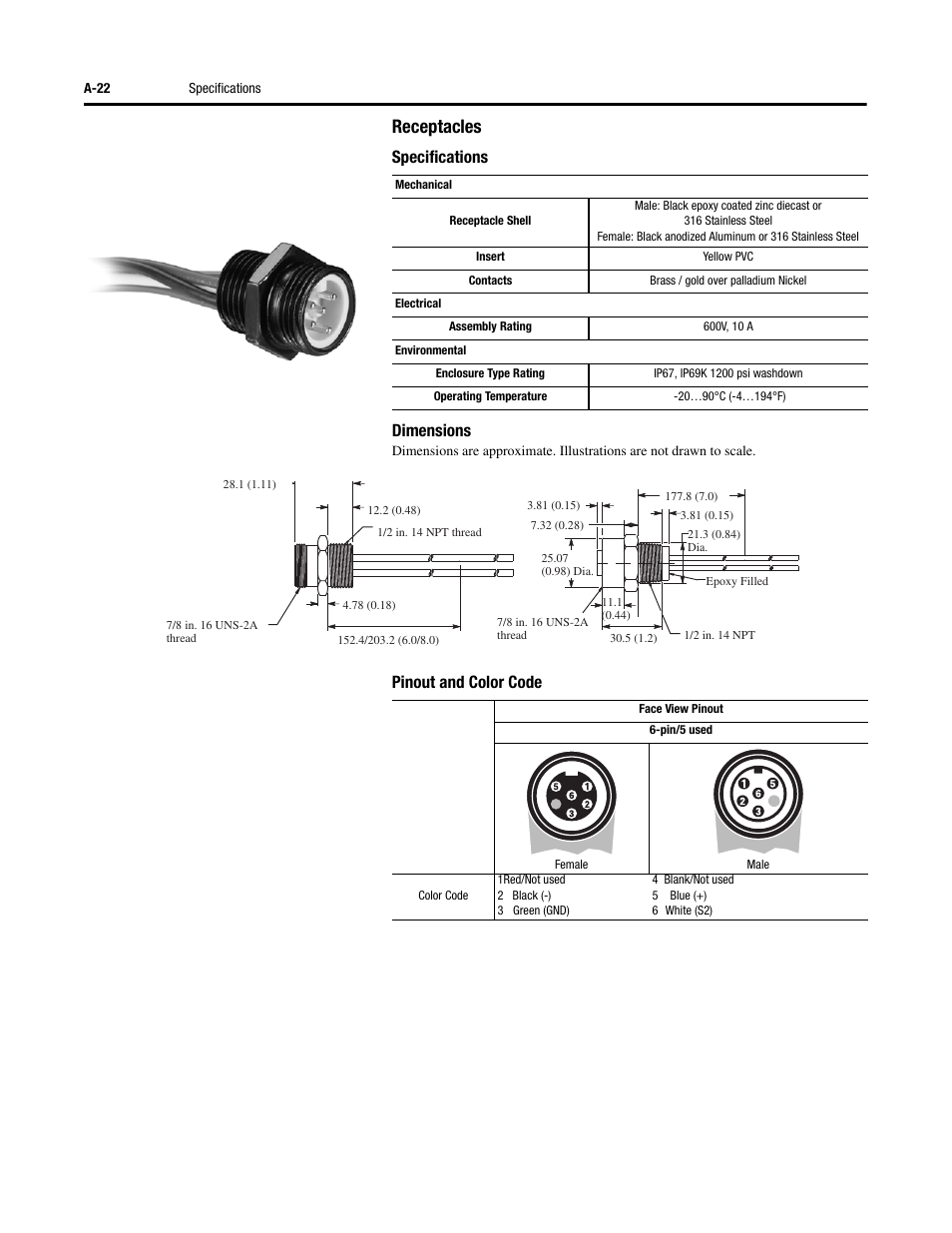

Receptacles, Specifications dimensions, Pinout and color code – Rockwell Automation 284 ArmorStart User Manual User Manual
Page 342
