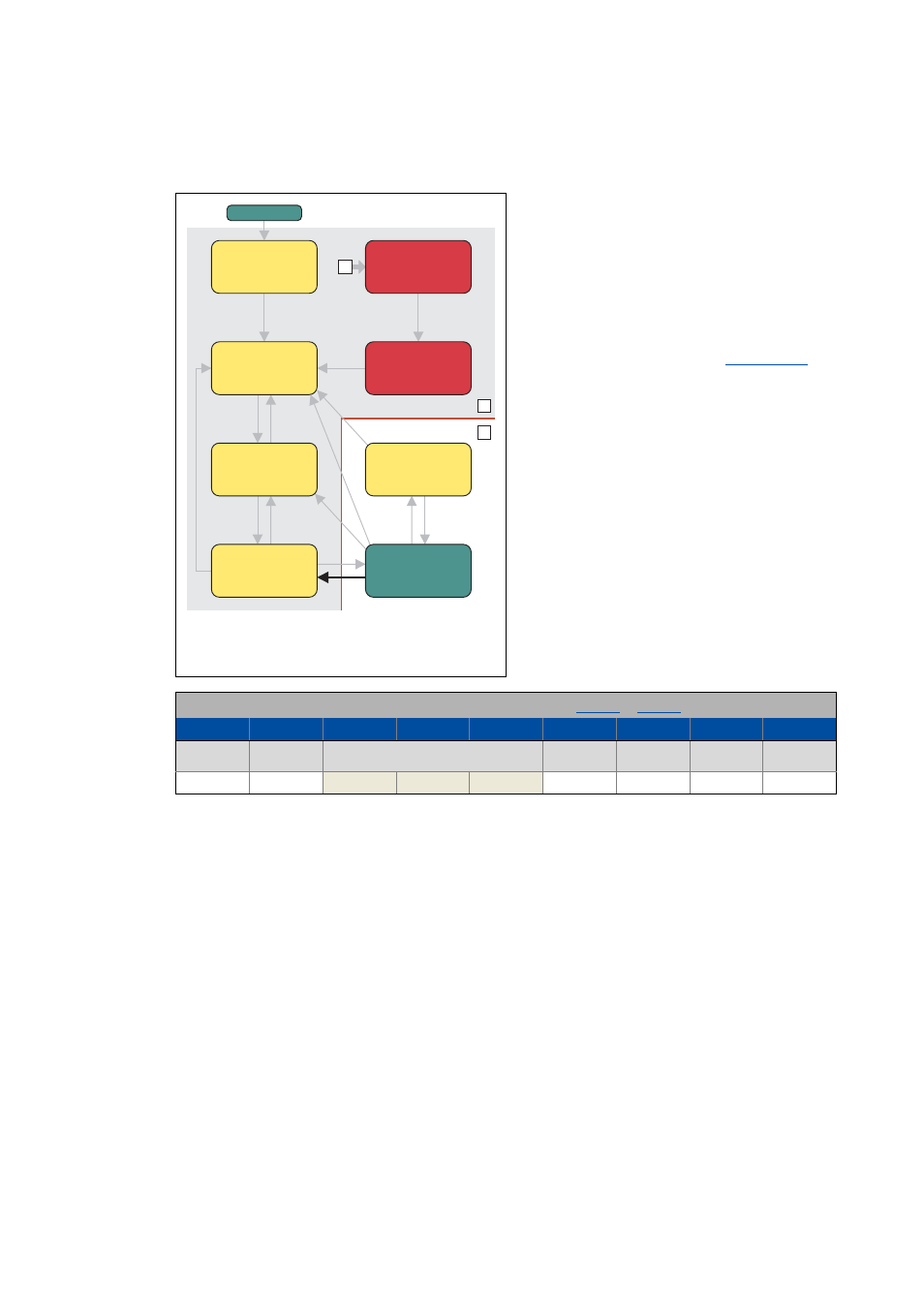

7.4.1.5
Disable operation
From all states
Power section inhibited (pulse inhibit)
Power section enabled
This command serves to inhibit the enabled
operation again.
• The pulse inhibit is set.
• If automatic brake operation is activated,
the parameterised brake closing time is
observed: The system waits until the brake
is applied before the pulse inhibit is set.
• A changeover back to the "
"
device status takes place.
Bit pattern for the "Disable operation" command in the Controlword (
Bits 15 - 8
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Fault reset
Control bits depending on the operating mode
Enable
operation
Activate quick
stop
Enable voltage
Switch on
X
0
X
X
X
0
1
1
1
1
2
0
Ready to
switch on
Not ready to
switch on
Switched
on
Operation
enabled
Fault reaction
active
Fault
Switch-on
disabled
Quick stop
active
Power-on
