Diagnostics
Diagnostics with Global Drive Oscilloscope (GDO)
Diagnostics with GDO
l
329
EDBCSXP064 EN 8.0

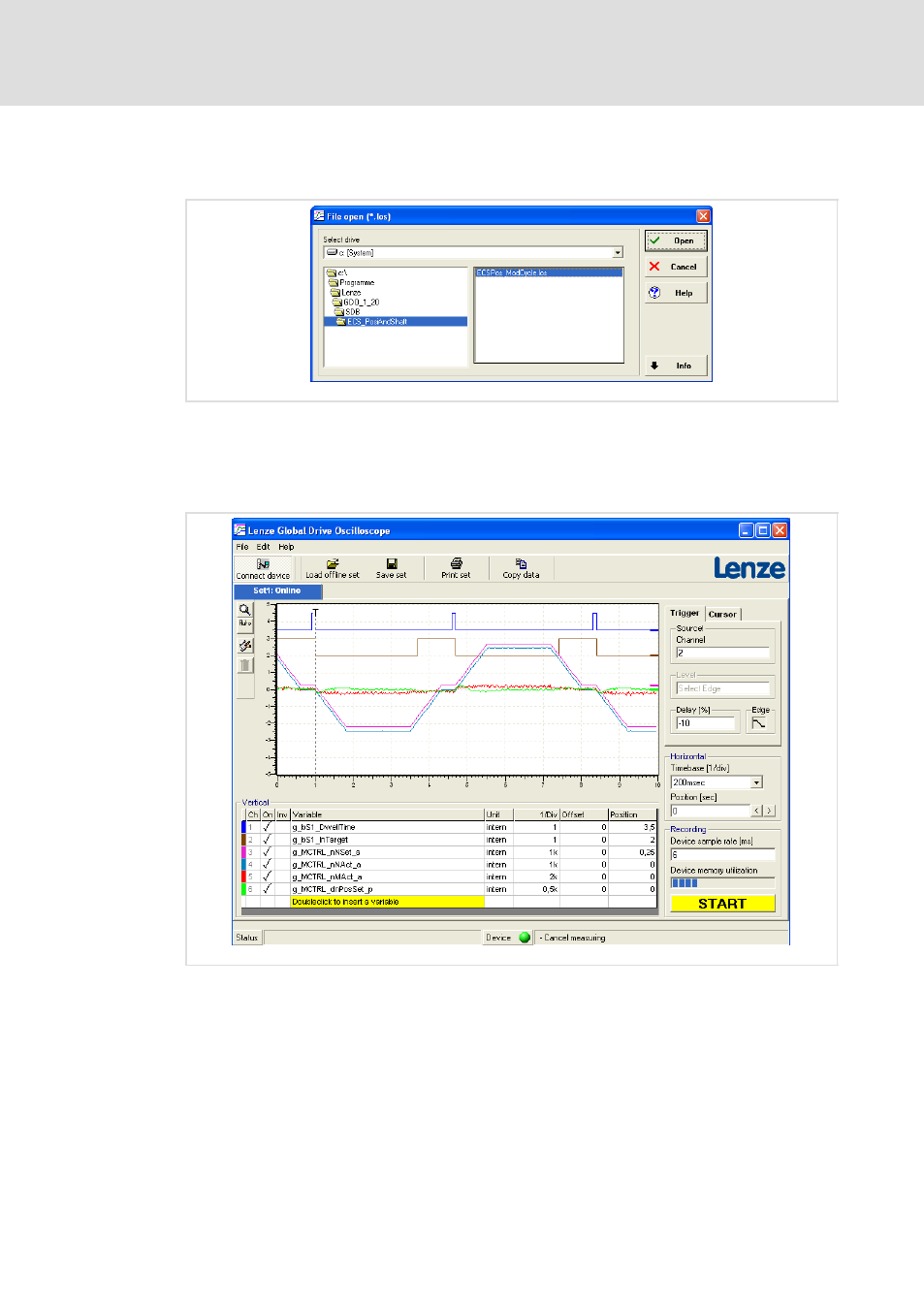

7. Select the file ECSPos_ModCycle.los in the menu list under File
W Open Online Set
and press the button OK.
ECSXA483
Fig. 10−7
GDO view: dialog "File open (*.los)"
8. Press Start button.
9. Position the drive (
^ 123).
– The profile mode C3095 = 251 enables simple cyclic positioning of the drive.
ECSXA484
Fig. 10−8
GDO view: performing a positioning process
10. Double−click on the last line of the "Variable" column to delete variables from or
add variables to the list.
– The graph display field can display up to eight channels.
