Configuring MotionBus/system bus (CAN)
Monitoring of the synchronisation (sync time slot)
l
281
EDBCSXP064 EN 8.0
8.1.8
Monitoring of the synchronisation (sync time slot)
Sync-window
Sync cycle
Sync cycle
Sync-signal
ECSXA474

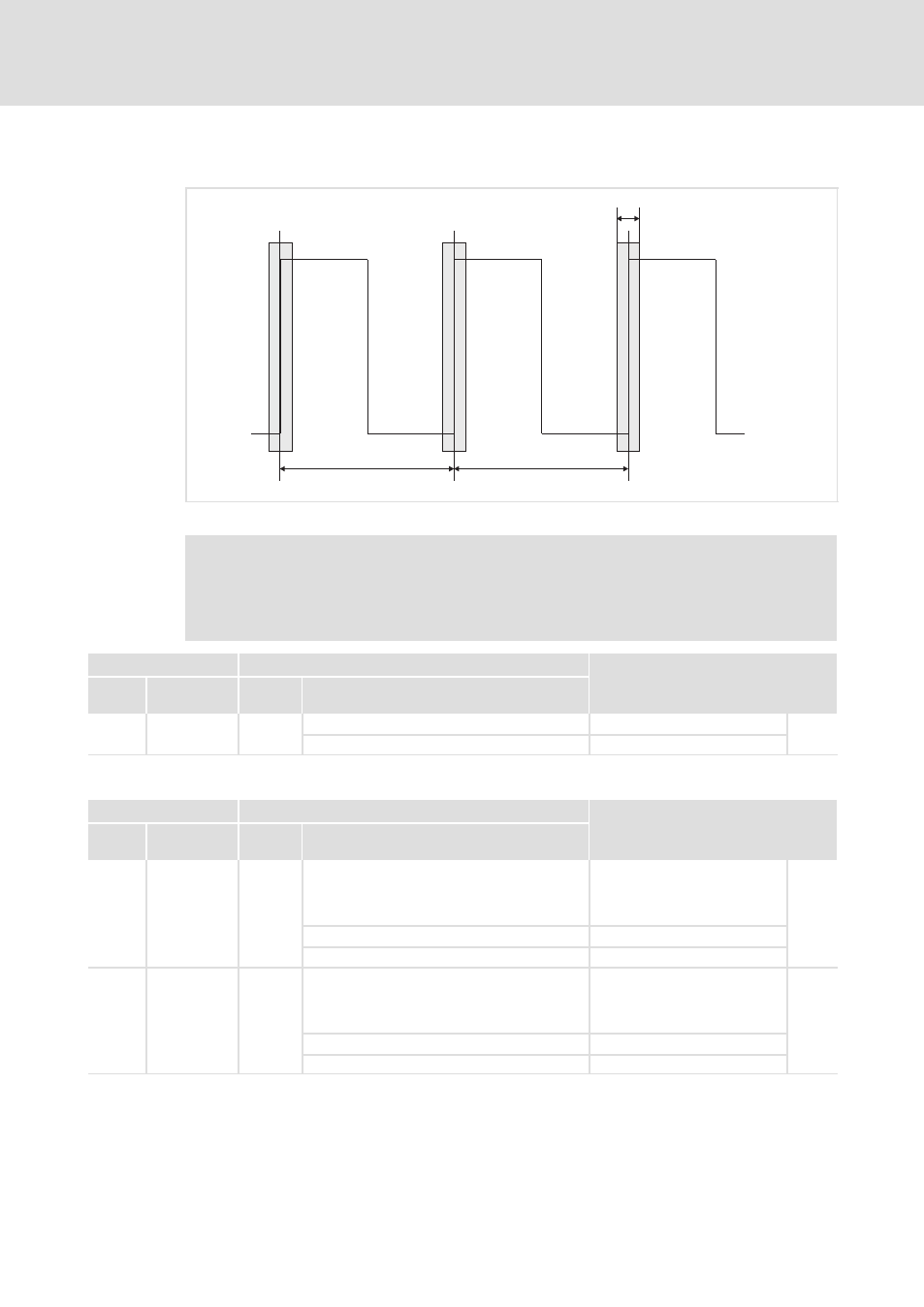

Fig. 8−3
"Time slot" for the LOW−HIGH edges of the sync signal
)
Note!
A jitter (
¶ 278) up to ±200 ms on the LOW−HIGH edges of the sync signal is
permissible. The amount of the jitter has an impact on the parameterisation of
the "time slot".
Code
Possible settings
IMPORTANT
No.
Designation
Lenze/
{Appl.}
Selection
C1123 Sync window
0.010
Synchronisation window
^ 281
0.000
{0.001 ms}
6.500
CAN sync response
Code
Possible settings
IMPORTANT
No.
Designation
Lenze/
{Appl.}
Selection
C0366 Sync Response
1
CAN sync response for interface
X4 (CAN)
The value "1" should always be
set!
^ 281
0
No response
1
Response
C2466 Sync Response
1
CAN sync response for interface
X14 (CAN−AUX)
The value "1" should always be
set!
0
No response
1
Response
