Commissioning
Setting of manual control parameters
l
173
EDBCSXP064 EN 8.0
6.15
Setting of manual control parameters
(
Stop!
Machine parts can be damaged or destroyed!
The drive can travel into a mechanical limit during manual jog if
ƒ
no reference is known (status bit Stat1.HomePosAvailable = 0,
^ 161).
ƒ
no software limit positions are set (
¶ 237).
The "manual jog" function is used to run the drive in inching mode, e. g. for cleaning or
changing the tool. The function is activated by setting the control bits Ctrl1.JogCW = 1 or
Ctrl1.JogCCW = 1 (
^ 158).
The control signals for "manual jog" can be linked to the digital input terminals to activate
the manual jog, for instance, via pushbuttons (
^ 168).
The GDC includes the codes for setting the manual control parameters in the parameter
menu under Positioning/E−Shaft
W Manual jog.
ECSXA446

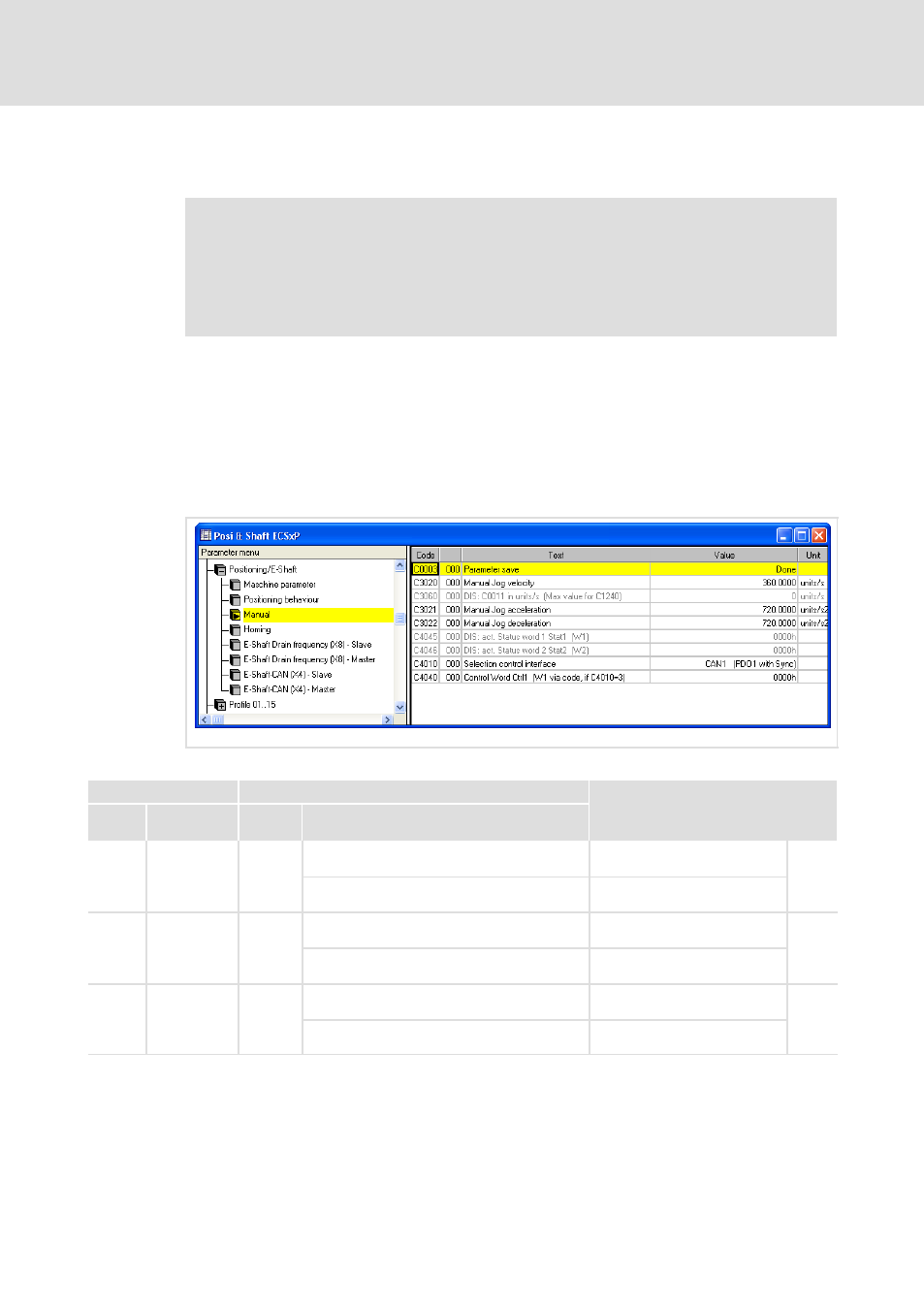

Fig. 6−32
GDC view: Short setup − entry of manual control parameters
Code
Possible settings
IMPORTANT
No.
Designation
Lenze/
{Appl.}
Selection
C3020 ManualVel
360.0
Traversing speed for manual jog
(inching mode)
^ 173
0.0001
{0.0001
units/s}
214000.0000
C3021 ManualAcc
720.0
Acceleration for manual jog
(inching mode)
^ 173
0.0001
{0.0001
units/s
2
}
214000.0000
C3022 ManualDec
720.0
Deceleration for manual jog
(inching mode)
^ 173
0.0001
{0.0001
units/s
2
}
214000.0000
