Commissioning
Configuring the electrical shaft ("E−Shaft")
Setting the stretch factor (C3097 / C3098)
l
213
EDBCSXP064 EN 8.0
Formulas for setting the stretch factor
Requirements:
ƒ
The circumferential speeds of both rolls are to be the same.
ƒ
Both rolls have the same diameter so that they must have the same speed too.
roll 1
roll 2
ratio i1
ratio i2
motor 1
(Master)
motor 2
(Slave)
stretch
factor
ECSXP004

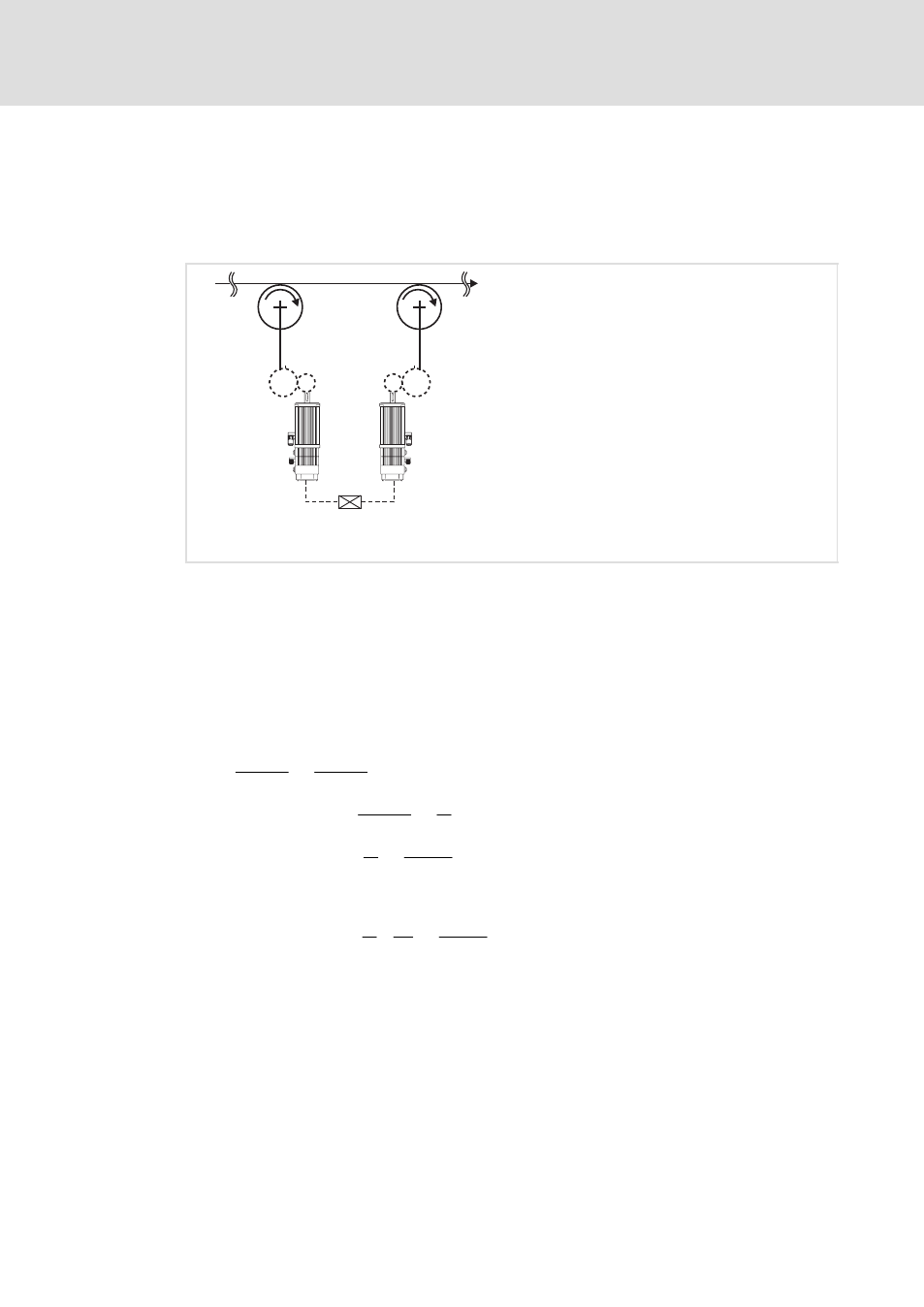

Fig. 6−50
Electrical shaft: Master and slave roller drives affect the same web.
roll 1
Roll 1
roll 2
Roll 2
ratio i1
Mechanical gearbox ratio − master
ratio i2
Mechanical gearbox ratio − slave
stretch factor
Stretch factor
Requirement: Synchronism of the rolls
n
roll 1
+ n
roll 2
n
motor 1
i1
+
n
motor 2
i2
stretchfactor
+
n
motor 2
n
motor 1
+ i2
i1
stretch factor
+ i2
i1
+ C3097
C3098
Different roll diameters (d1, d2) must be considered for the stretch factor as follows:
stretch factor
+ i2
i1
@ d1
d2
+ C3097
C3098
