Page 101: Homing, Commissioning

Commissioning
Basic terms of positioning
Setting of manual jog (inching mode)
l
101
EDBCSXP064 EN 8.0
6.1.7
Setting of manual jog (inching mode)
"Manual jog" means running the drive by manual operation.
и
з
ECSXA419

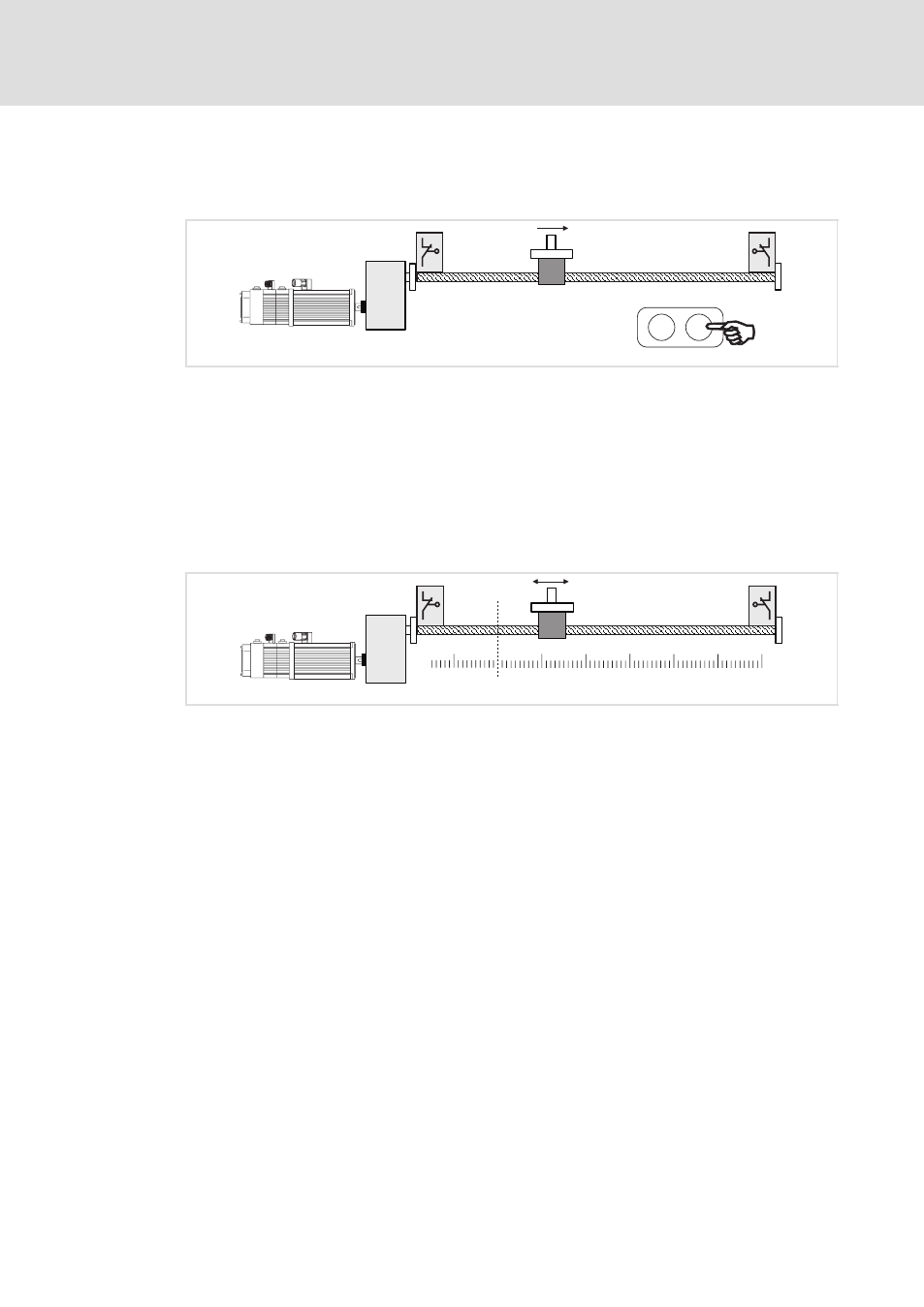

Fig. 6−9
Manual jog (inching mode)
ƒ
The parameters "traversing speed", "acceleration" and "deceleration" can also be set
for manual jog. (
¶ 173)
6.1.8
Homing
By means of homing, the zero position is defined within the physically possible traversing
range of the machine. Thus, the reference of the measuring systems to the machine is
established.
0-Position
10
20
30
40
50
60
-10
ECSXA418
Fig. 6−10
Homing (defining the zero position)
The zero position (home position) can be defined by homing or by setting a reference:
ƒ
During homing the drive traverses in a defined mode (homing mode) to detect the
zero position on its own and in a reproducible manner.
ƒ
When homing is carried out, the current position is defined as zero position (home
position).
