Commissioning
Setting of the feedback system for position and speed control
l
132
EDBCSXP064 EN 8.0
6.9
Setting of the feedback system for position and speed control
The following feedback systems can be selected for position and speed control:
ƒ
Resolver (
¶ 133)
ƒ
TTL incremental encoder/SinCos encoder without serial communication (
¶ 136)
– as position and speed encoder (
¶ 136)
– as position encoder and resolver as speed encoder (
¶ 140)
ƒ
Absolute value encoder (Hiperface®, single−turn/multi−turn)
– as position and speed encoder (
¶ 145)
– as position encoder and resolver as speed encoder (
¶ 150)
The GDC includes the parameters or codes to be set in the parameter menu under
Short setup
W Feedback system:
ECSXA441

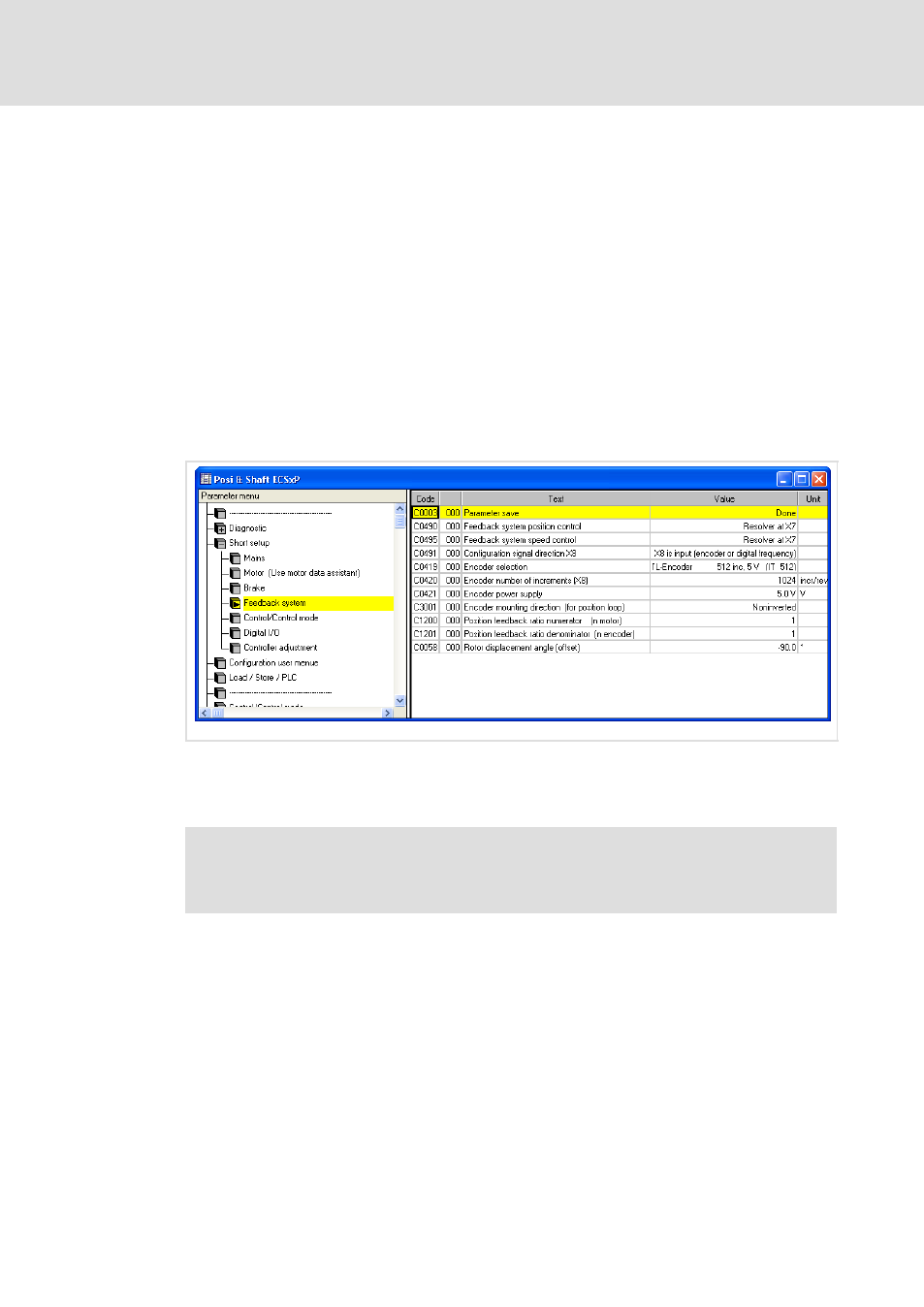

Fig. 6−24
GDC view: Commissioning of the feedback system
More parameters or codes for setting the feedback system can be found in the parameter
menu under Motor/feedback system
W Feedback system.
)
Note!
If the Lenze setting has been loaded via C0002, the feedback system must be
reset.
