Commissioning
Entry of machine parameters
l
165
EDBCSXP064 EN 8.0
6.13
Entry of machine parameters
In GDC you will find the codes for machine parameters, like for example the deceleration
time for quick stop (QSP) or maximum speeds in the parameter menu under
Positioning/E−Shaft
W Machine parameters.
ECSXA443
Fig. 6−27

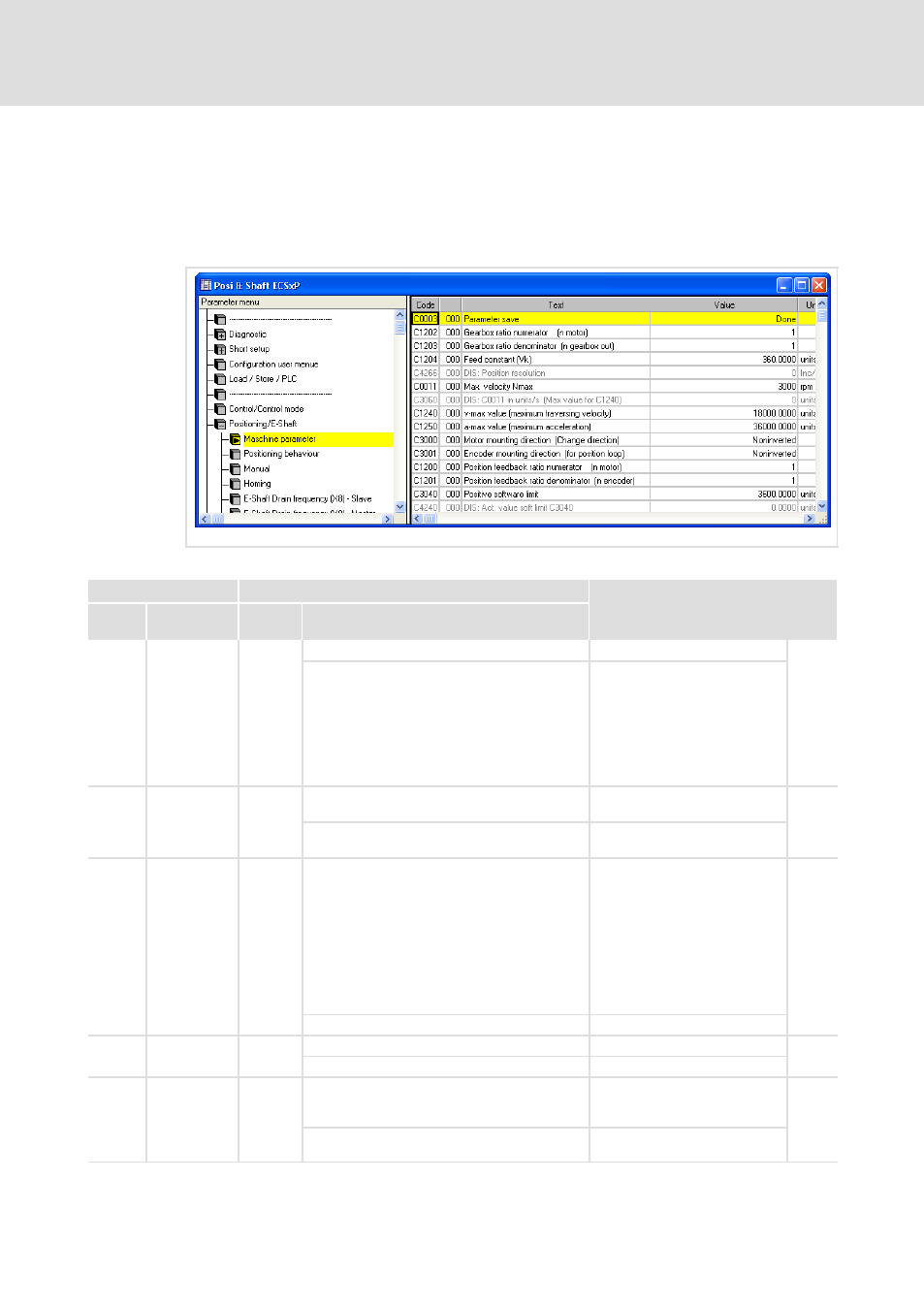

GDC view: Short setup, entry of machine parameters
Code
Possible settings
IMPORTANT
No.
Designation
Lenze/
{Appl.}
Selection
C0011 Nmax
3000
Maximum speed
500
{1 rpm}
16000 Reference value for the absolute
and relative setpoint selection
for the acceleration and
deceleration times.
For parameter setting via
interface: greater changes in one
step should only be made when
the controller is inhibited (CINH)!
C0105 QSP Tif
0.0
Deceleration time for quick stop
(QSP)
^ 243
0.000
{0.001 s}
999.999 Relating to speed variation n
max
(C0011) ...0 rev./min.
C1202 Gear num
1
Gearbox factor numerator
The gearbox ratio specifies the
number of revolutions of the
motor axis at which the load
revolves exactly once.
l
i = Z2 / Z1 (ratio of the
number of teeth or
circumferences)
l
i = n1 / n2 (ratio of the
speeds)
^ 103
1
{1}
65535
C1203 Gear denom
1
Gearbox factor denominator
^ 103
1
{1}
65535
C1204 Feed const
360.0
The feed constant specifies the
path (in units) which the load
(slide) covers in one revolution.
^ 103
0.0001
{0.0001
units/rev}
214000.0000
