Diagnostics
Diagnostics with Global Drive Oscilloscope (GDO)
Diagnostics with GDO
l
328
EDBCSXP064 EN 8.0
10.2.2
Diagnostics with GDO
1. Connect controller via terminal X4 (CAN) or X14 (CAN−AUX) with PC system bus
adapter to PC/laptop.
2. Supply controller with a control voltage of 24 V (
^ 64).
3. Start the GDO on the PC/Laptop.
4. Press the button Connect device.

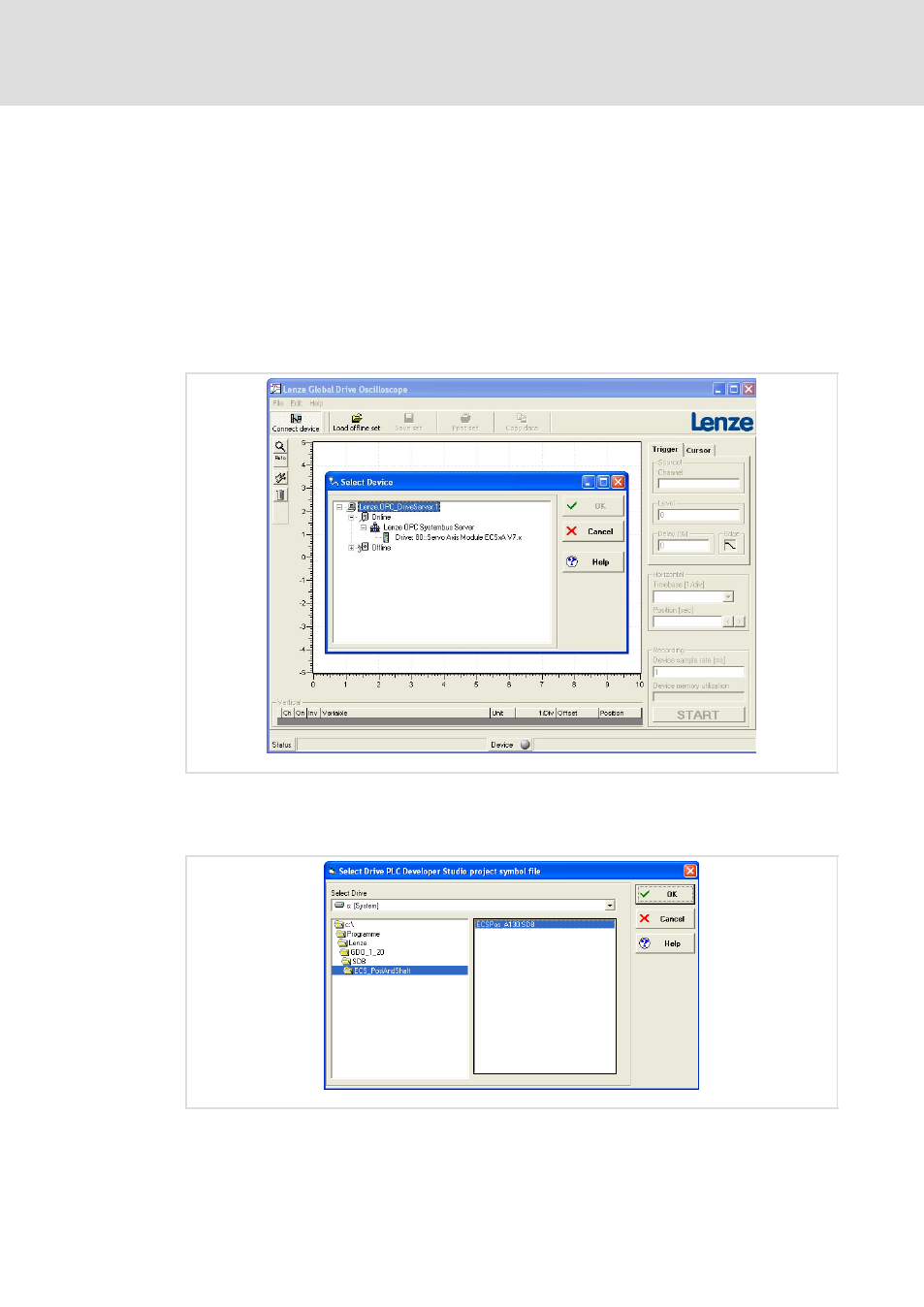

– The dialog "Select device" opens (Fig. 10−5).
– The devices connected to the bus are listed under "Online".
ECSXA481
Fig. 10−5
GDO view: dialog "Select device"
5. Select the corresponding device under Online and click on the OK button.
– The dialog "Select DDS project symbol file" opens:
ECSXA482
Fig. 10−6
GDO view: dialog "Select DDS project symbol file"
6. Select symbol file ECSPOS_Axxx.SDB (xxx = version number) and press button OK .
