Commissioning
Setting the positioning profile
Selecting a positioning profile mode
l
191
EDBCSXP064 EN 8.0
6.17
Setting the positioning profile
Up to 15 positioning profiles can be set in the ECSxP axis module to execute the different
positioning tasks required for a machine.
For setting a positioning profile, carry out the following steps:
ƒ
Select the positioning profile mode via C3095. (
¶ 191)
ƒ
Set positioning profile parameters. (
¶ 201)
ƒ
Configure the additional functions of the positioning profile. (
¶ 204)
The Global Drive Control (GDC) contains the corresponding codes in the parameter menu
under Profile 01..15.
ECSXA445

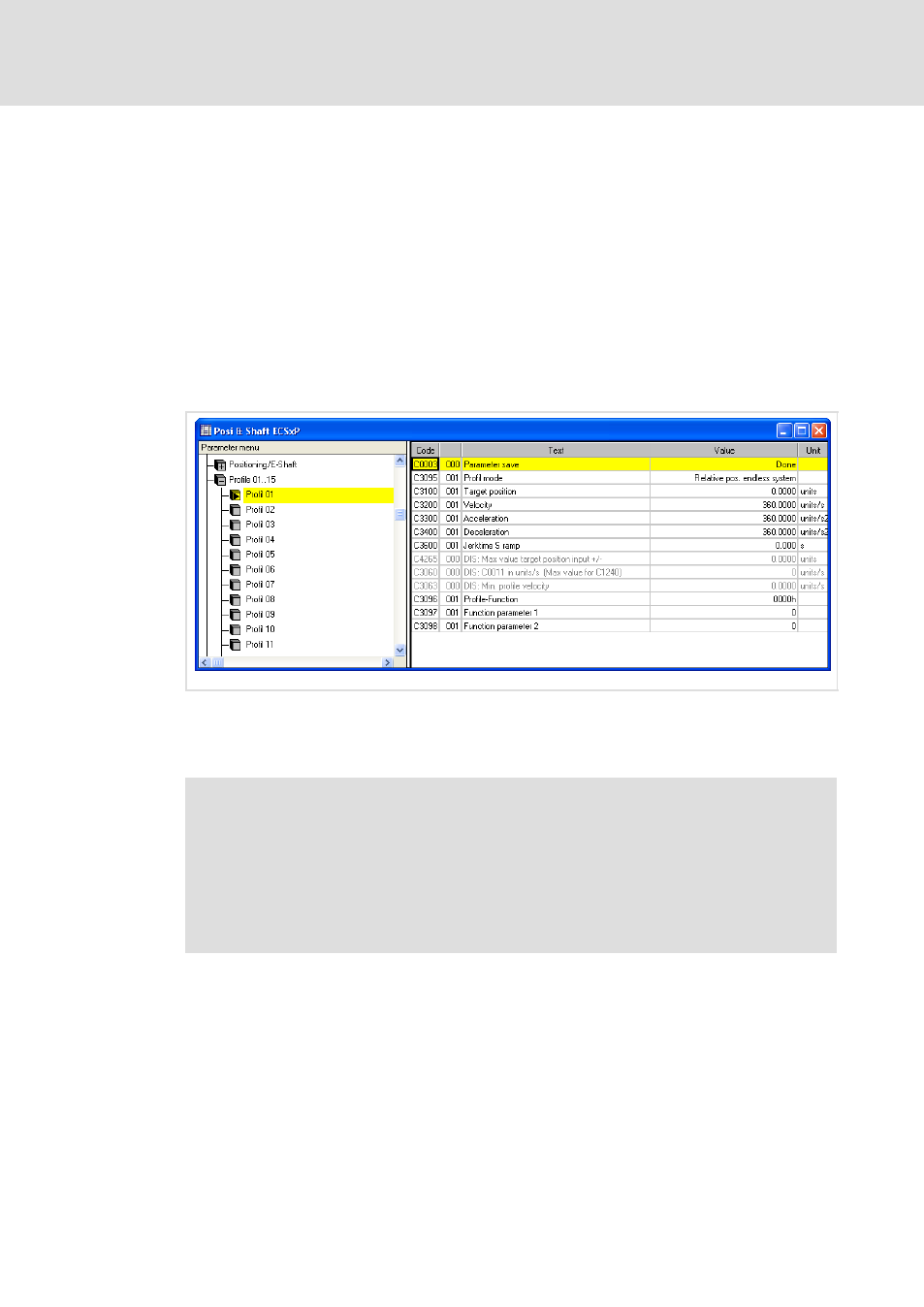

Fig. 6−45
GDC view: Setting of positioning profiles
6.17.1
Selecting a positioning profile mode
)
Note!
ƒ
The target position in C3100 must be between the positive and negative
value from C4265 (max. target position selection).
– Example: C4265 = 10000
ð C3100 = −10000 ... +10000
ƒ
The maximum traversing range amounts to 2147483649 increments for all
positioning profile modes (2
31
− 1).
ƒ
The position display C3051 is limited to ± 214000,0000 units.
