Appendix
Code−oriented transfer mode
13
13.1
l
13.1−1 EDSVS9332K EN 8.0−07/2013
13.1 Code−oriented transfer mode
The mode is suitable for changing single codes. In contrast to the
interpolation−point−oriented mode only incremental values are assigned.
You can access the data stored in the controller online. Carry out the
following steps:
1. Select a profile with the absolute data model.
2. Activate the online access with C0389 = 1.
– Online access can only be activated if the controller is inhibited
(X5/28 = HIGH).
Y
X
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
Y10
Y11
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11
X
X1
X2
X3
…
…
…
X11
Y
Y1
Y2
Y3
…
…
…
Y11
9300kur060

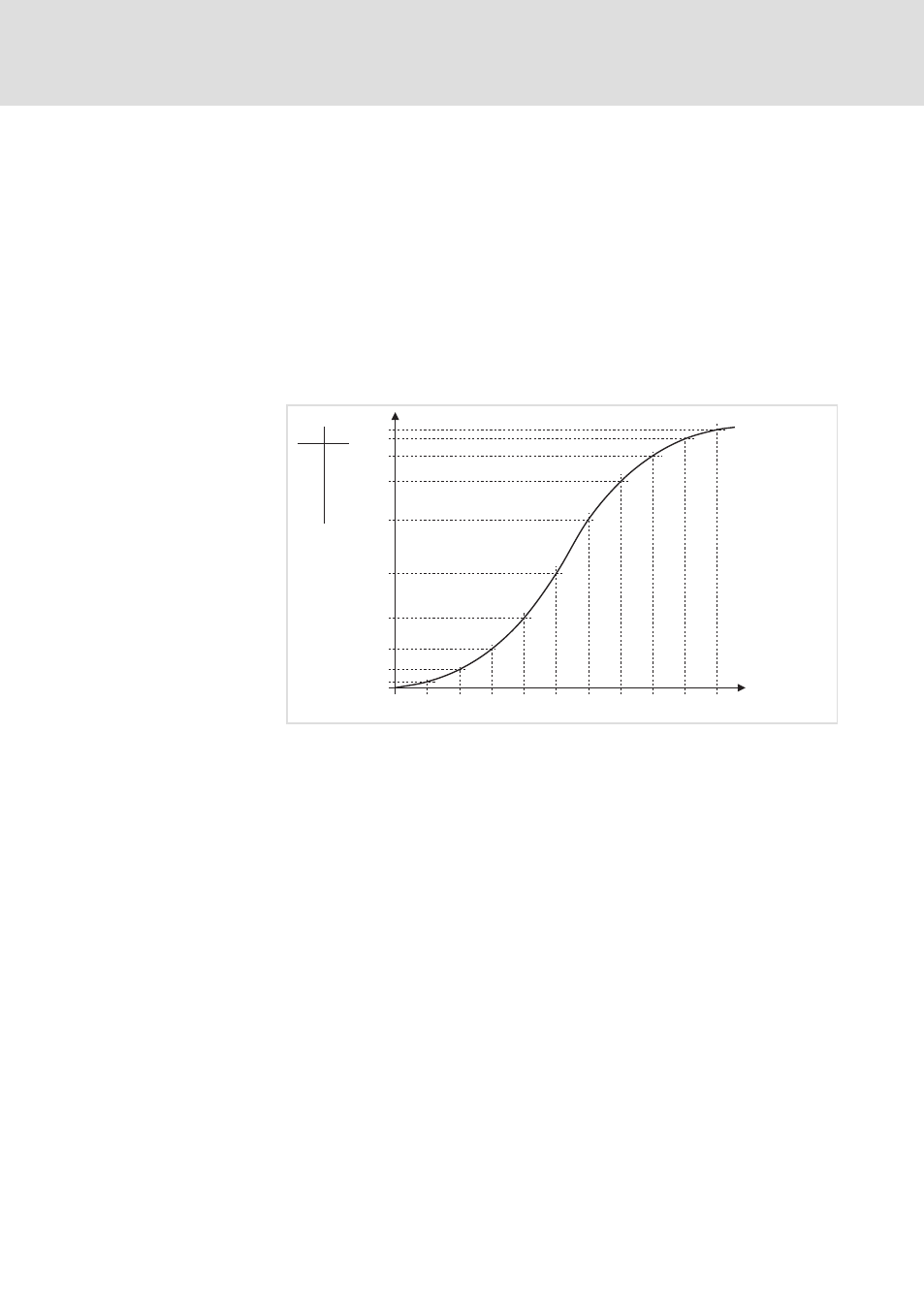

Fig. 13.1−1 Example of a profile with absolute data model (assignment of the X/Y value pairs)
Condition for online access
