78
• Planter Row Shutoff functions
beginning on
“Row Shutoff” on page 81
• Hydraulic Seed Rate Control functions
beginning on
“Hydraulic Seed Rate Control” on page 84 .
• Stepper Seed Rate Control functions
beginning on
“Stepper Seed Rate Control” on page 89 .
Note: For information on AutoSwath functionality, see the pages beginning at “AutoSwath” on page 71 of the
Planting section.
Note: Additionally, consult “Auxiliary Input Settings (Switch Mapping)” on page 70 of the Planting section for
information on the Auxiliary Input Settings (Switch Mapping) feature.
M
AP
S
CREEN
: Z
OOM TO
E
XTENT

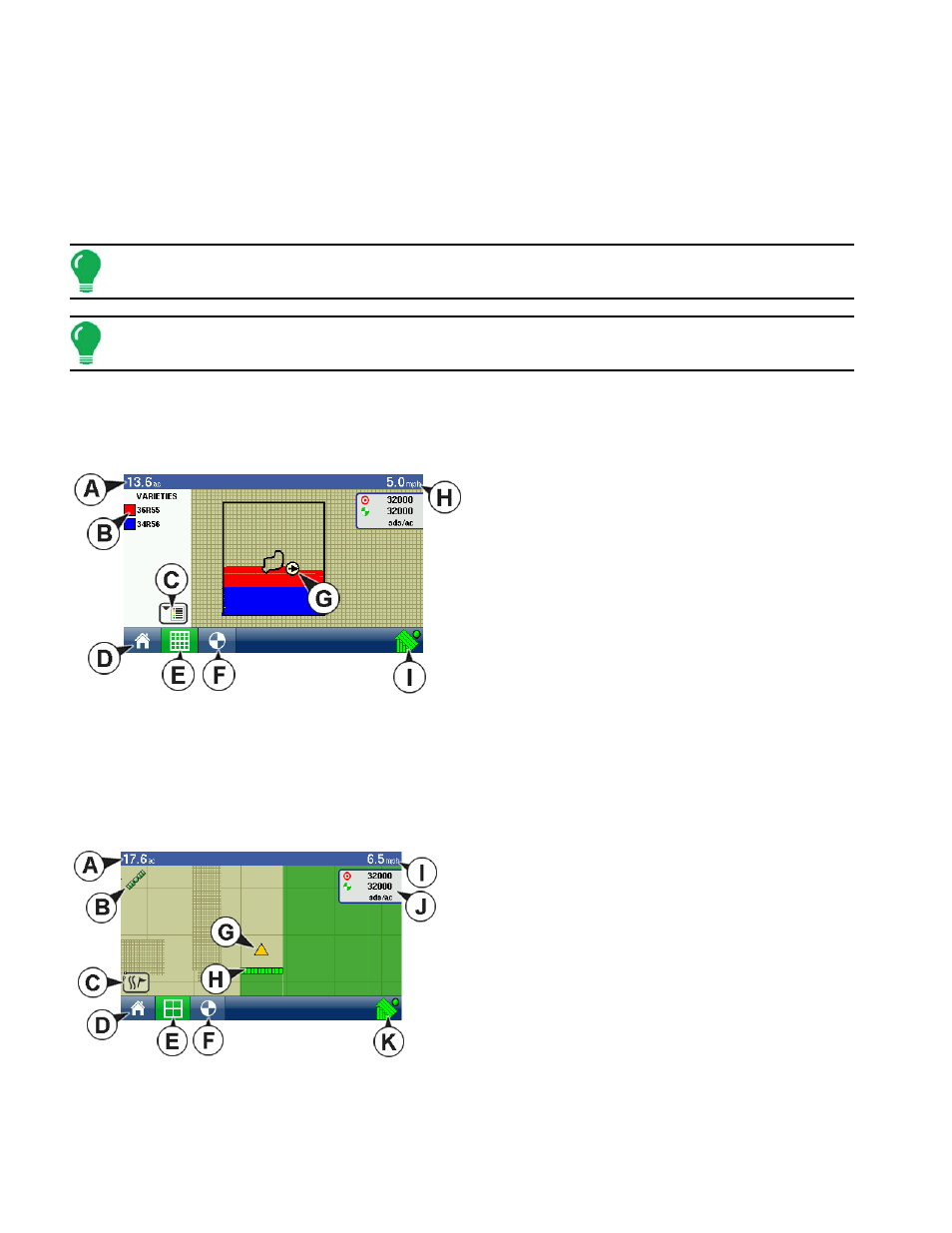

The map is shown for a SeedCommand configuration running a Row Shutoff Module and Planter
Hydraulic Drive Control.
• (A) Total Acres
• (B) Legend
• (C) Display Legend Button
• (D) Home
• (E) Map View
• (F) Rate button (Only appears on hydraulic
drive configuration)
• (G) Vehicle Icon
• (H) Ground Speed
(I) Logging Status (shown for Clutch Control and Hydraulic Drive Configuration)
M
AP
S
CREEN
: Z
OOM
D
ETAIL
The map is shown for a Planter with SeedCommand features. This planter includes 12 sections, and
these sections are shown as individual boxes on the Implement Icon behind the Vehicle Icon.
