3. Make sure there is not a gap between the boundary and the first pass of the headlands.
Note: For best results, run a new boundary when spraying the first pass of the headlands.
Problem: Booms turn on for a split second in the headlands.
Solution:
1. Make sure that the Turn On Look Ahead is greater than the Turn Off Look Ahead.
2. Make sure GPS Offsets are correct.
3. Make sure look aheads are less than three seconds each.
T
ROUBLESHOOTING
D
IRECT
I
NJECTION
C
ONFIGURATIONS
When controlling a chemical injection pump using the
Injection Module PN: 4000896 the configuration requires the use of a Liquid Module PN: 4000394.
The injection control is based off of the vehicle that has been configured for the liquid DirectCommand
control channel. Once configured, the Injection pump uses the same switch inputs and ground speed
input that has been configured for the liquid system.

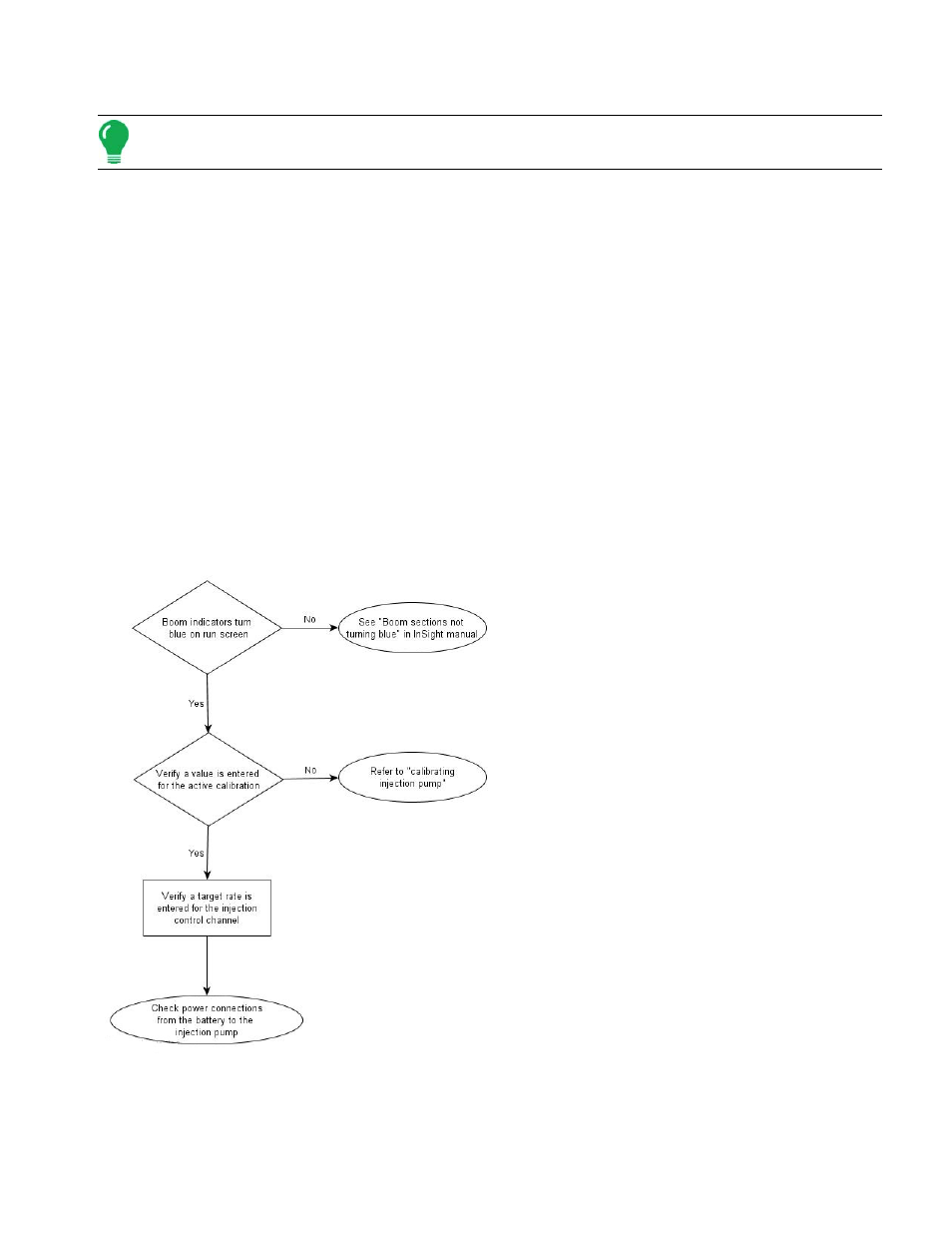

Direct Injection: Pump Doesn’t Run
Power can be checked at multiple locations. First
is the connection at the Injection module where
the battery power cable plugs in. The second
location is the output connection found on the
injection module. The third is found at the 2 pin
weather-pak tower found on the injection cable
PN: 4000851-3. See table below.
