The screens shown in this section are for a Planting configuration. In order for you to view the Map
Screen, you must first select a Grower, Farm and Field at the Start Field Operation portion of the Home
Screen.
For more information, see “Management” on page 10.
Once a configuration has been completed, the Map View button appears at the bottom of the
Home Screen. Press the Map View button, and the Map Screen appears.
M
AP
S
CREEN
: Z
OOM TO
E
XTENT

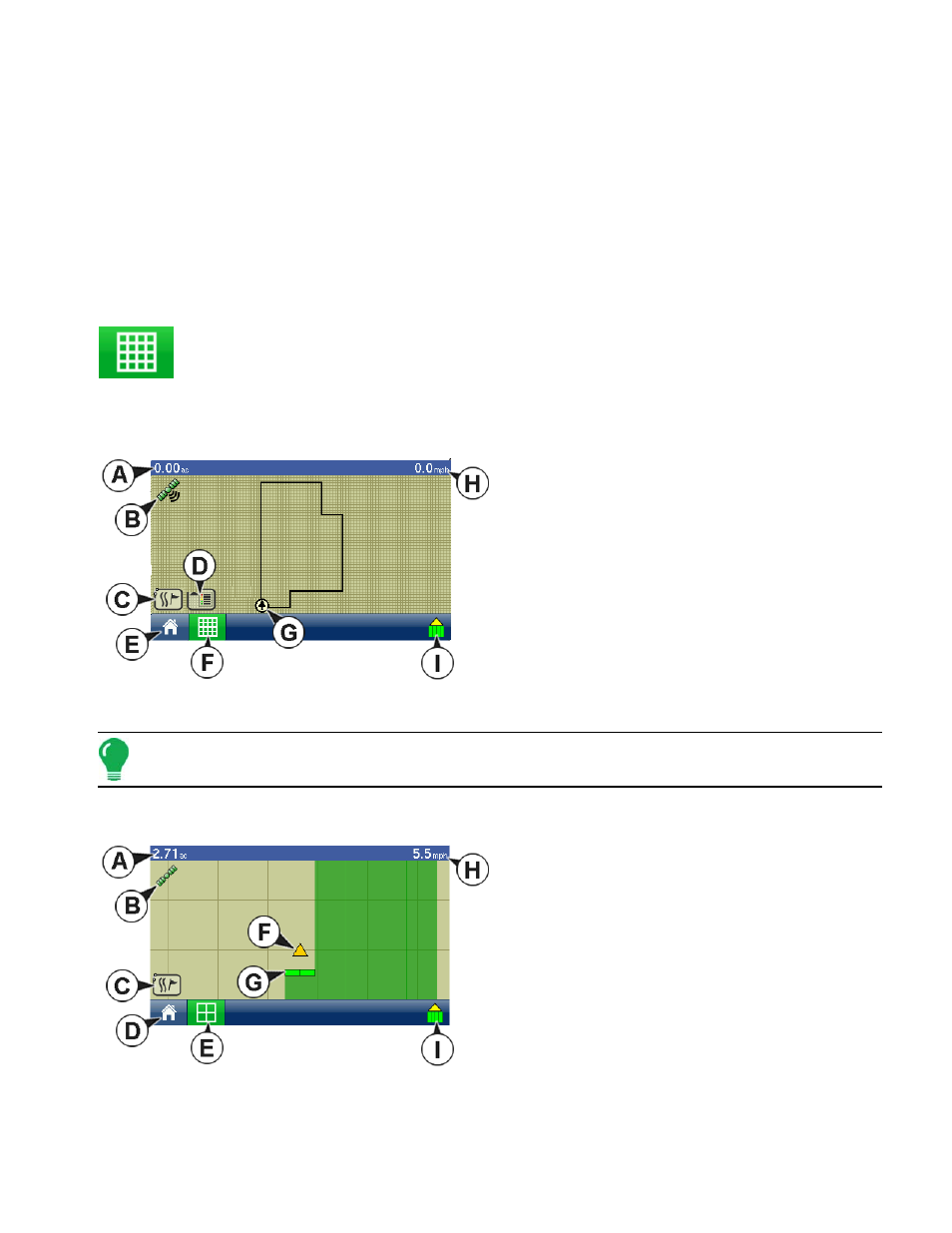

The map shows a Planting Area Logging configuration, displayed in Zoom to Extent view
• (A) Total Acres
• (B) GPS Status
• (C) Map Options
• (D) Display Legend button
• (E) Home
• (F) Map View
• (G) Vehicle icon
• (H) Ground Speed
• (I) Logging Status (shown for area logging Planting Configuration)
Note: Pressing the Map View button will cycle between the available map screen views, and the appearance
of the Map View button changes.
M
AP
S
CREEN
: Z
OOM
D
ETAIL
When the Map Screen is shown in Zoom Detail,
the Vehicle Icon appears as a gold triangle, rather
than an arrow.
