Press Conveyor Rate button

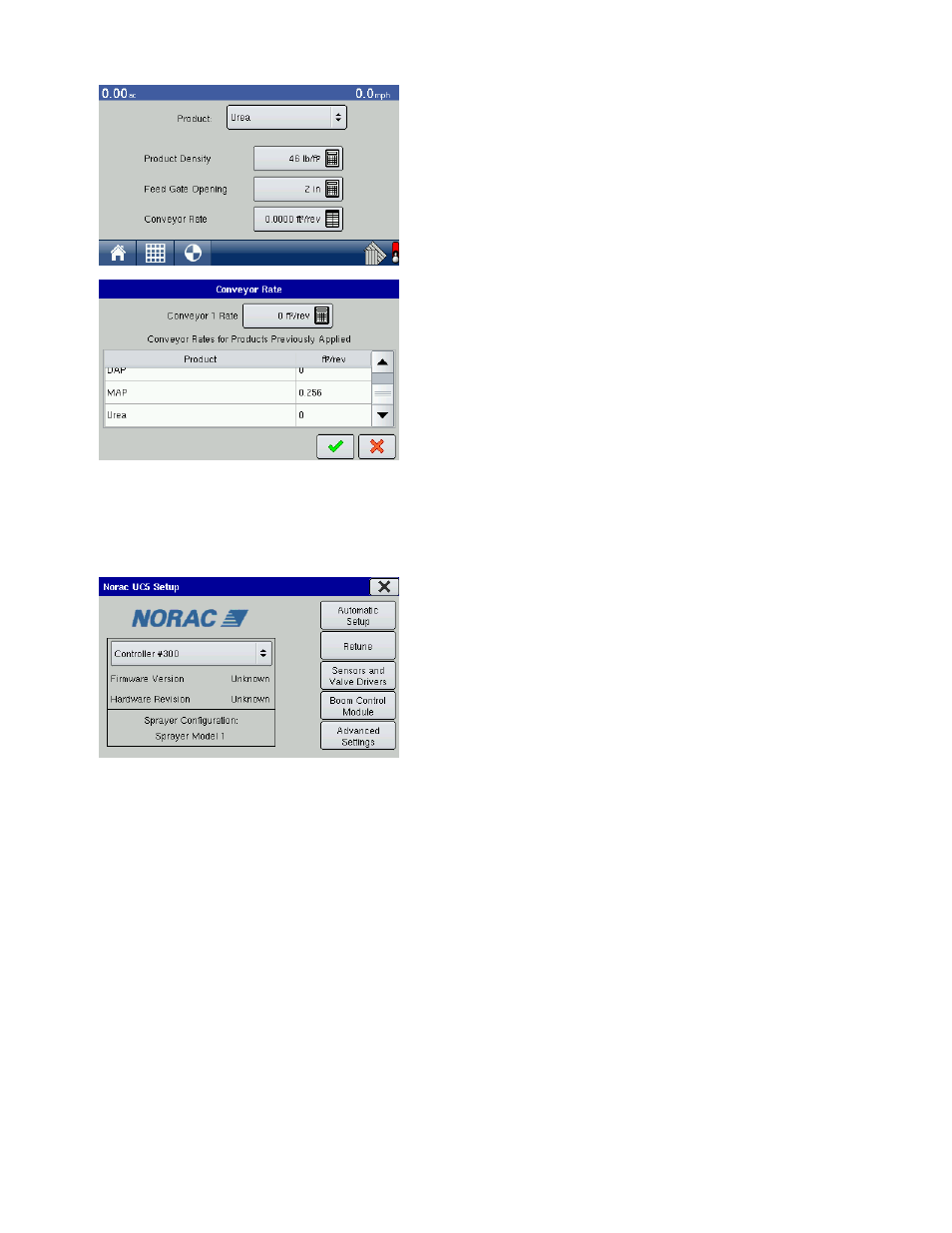

Conveyor Rate screen shows rates for previously applied
products to use as a reference.
Press and highlight product to enter conveyor rate.
Press Conveyor Rate button.
Using numeric keypad, enter desired rate.
Press checkmark button to exit screen.
Press checkmark button to accept new rate.
NORAC UC5 S
ETUP
N
ORAC
UC5 S
ETUP
S
CREEN
To view the NORAC UC5 Setup screen, go to the Implement
Tab in Application setup, select the desired sprayer from the
Implement list, check the Enable Boom Height Control check
box and press the NORAC UC5 Setup button. The NORAC
UC5 setup screen appears, as shown.
• Automatic Setup
Loads the Select Sprayer screen, which starts the Automatic Setup process. For more information, see
“Automatic Setup” on page 151.
• Retune
Retunes the UC5 electronics to your sprayer’s hydraulics. For more information, see
“Retune” on page 152.
• Sensors and Valve Drivers
Loads the Sensor and Valve Driver Settings window, where users can set minimum height mode; adjust
minimum height settings and manually edit sensor, valve and input settings. For further information, see
“Minimum Height Settings” on page 152 . Also, consult the NORAC UC5 manual for more information.
• Advanced Settings
NORAC non-user menu.
Automatic Setup
Automatic Setup walks through a series of steps that configures the NORAC UC5 electronics to the
sprayer hydraulic functions. You must perform an Automatic Setup routine after the NORAC UC5
system is installed. The following items are configured during an Automatic Setup routine:
