D
IAGNOSTICS
Pressing the Harvest Display Item on the Harvest Screen
summons the Harvest Diagnostics screens that pertain to your
configuration (For an example, see illustration at
Screen - Active Display Items” on page
). Technical support
may request that you look at these screens for help in
diagnosing a problem. When performing a Harvest operation,

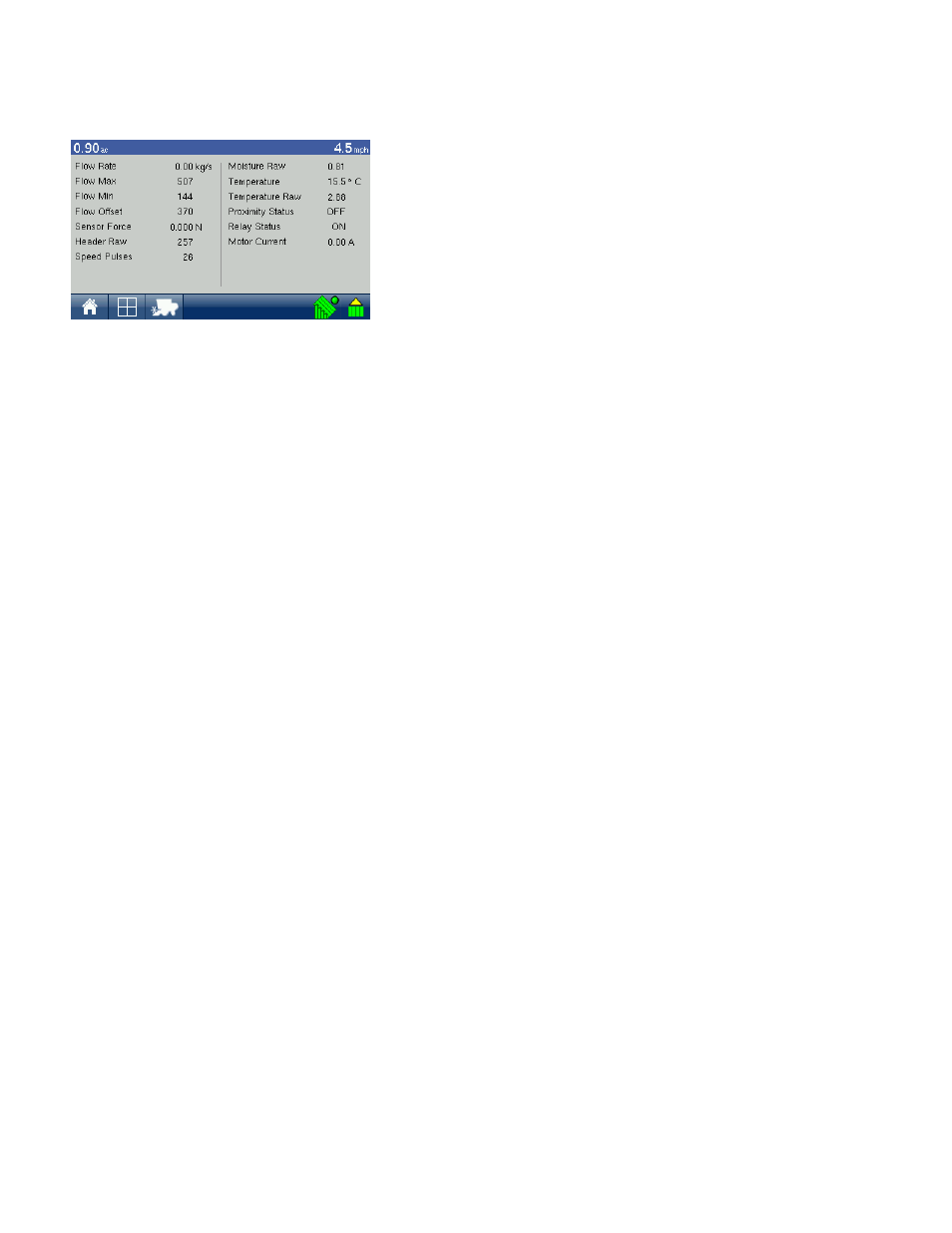

you can access the Harvest Diagnostic screen, as shown.
The Harvest Diagnostic Tab includes the following information:
• Flow Rate
Grain flow rate, shown in kilograms per second.
• Flow Max, Flow Min and Flow Offset
Raw flow values used for diagnostic purposes.
• Sensor Force
Force of grain flow, shown in Newtons.
• Header Raw
Raw value of header sensor.
• Speed Pulses
Shows the number of ground speed pulses from the combine.
• Moisture Raw
Raw value of moisture sensor.
• Temperature
Air temperature, shown in Celsius.
• Temperature Raw
Raw value of temperature sensor.
• Proximity Sensor
Shows if Elevator Mount Unit sensor is covered with grain.
• Relay Status
Shows on or off.
• Motor Current
Measure of Elevator Mount Unit (EMU) current, shown in amps.
Harvest Diagnostic Notes
• For generalized Diagnostic information, such as memory, display, CAN device and firmware version
• For more information on LED diagnostic states, see
