97
P
LANTING
Possible Cause: The hydraulic drive motor has stopped rotating.
Solution: Check the stepper seed motor to see if it is restricted from turning, and that the
hydraulic drive is working.
Error Message: “Meter Not Moving - Drive #”
Possible Cause: Either the Seed Meter Calibration failed, or the Seed Meter Prime failed
Solution: Make sure that the tractor’s hydraulic outlet is turned on.
Error Message: “Seed Drive at Maximum RPM Drive #”
Possible Cause: If you start the priming routine and the hydraulic motor is not on
Solution: - Slow the planter unit’s ground speed. - Reduce the Planting Target Rate.
D
IAGNOSTICS
Specific diagnostics information which pertain to planting functions can be viewed when you
press the Diagnostics button on the Home Screen. For planting operations, this diagnostic
information includes Clutch Diagnostics and Input Diagnostics. Technical support may
request that you look at this screen to help in diagnosing a problem. For generalized
diagnostic information, such as memory, display, CAN device and firmware version
information, see “Diagnostics” on page 24.
C
LUTCH
D
IAGNOSTICS
(
FOR
R
OW
S
HUTOFF
)

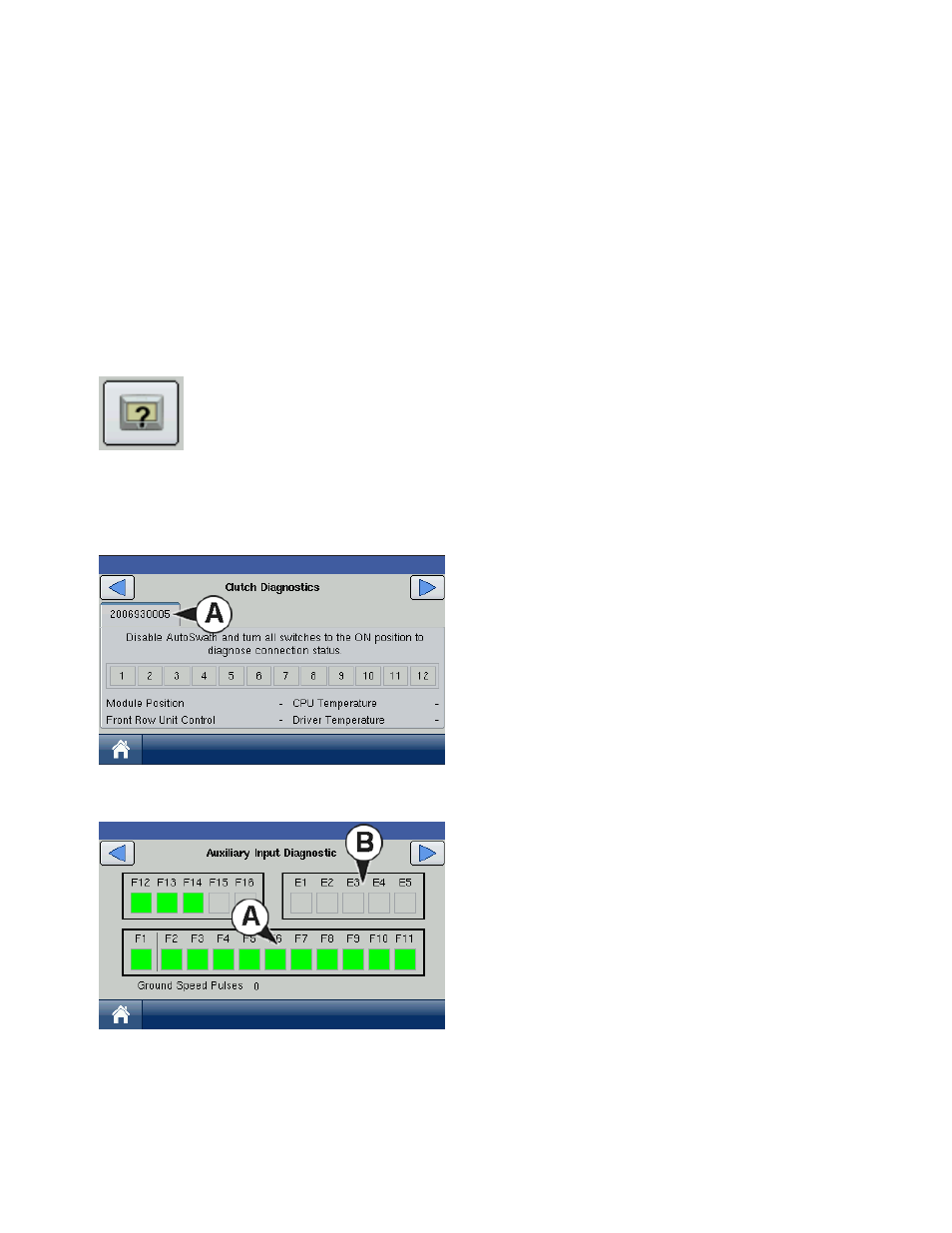

The Clutch Diagnostics Tab shows the voltage flowing
from each of the 12 pins in the Row Shutoff module.
• (A) Module Serial Number
I
NPUT
D
IAGNOSTICS
The Input Diagnostic Tab lists the number of Ground
Speed Pulses coming in from the radar to the Auxiliary
Module.
Additionally, the bottom row of boxes lists the active
switches on the switch box.
• (A) Switch box
• (B) Foot box
These color coded boxes display the following
diagnostics:
• Green: The switch box is connected to the Auxiliary Module in the On position.
• Black: The switch box is connected to the Auxiliary Module, but is in the Off position.
• Grey: The switch box is not connected to the Auxiliary Module.
