2. Press Edit

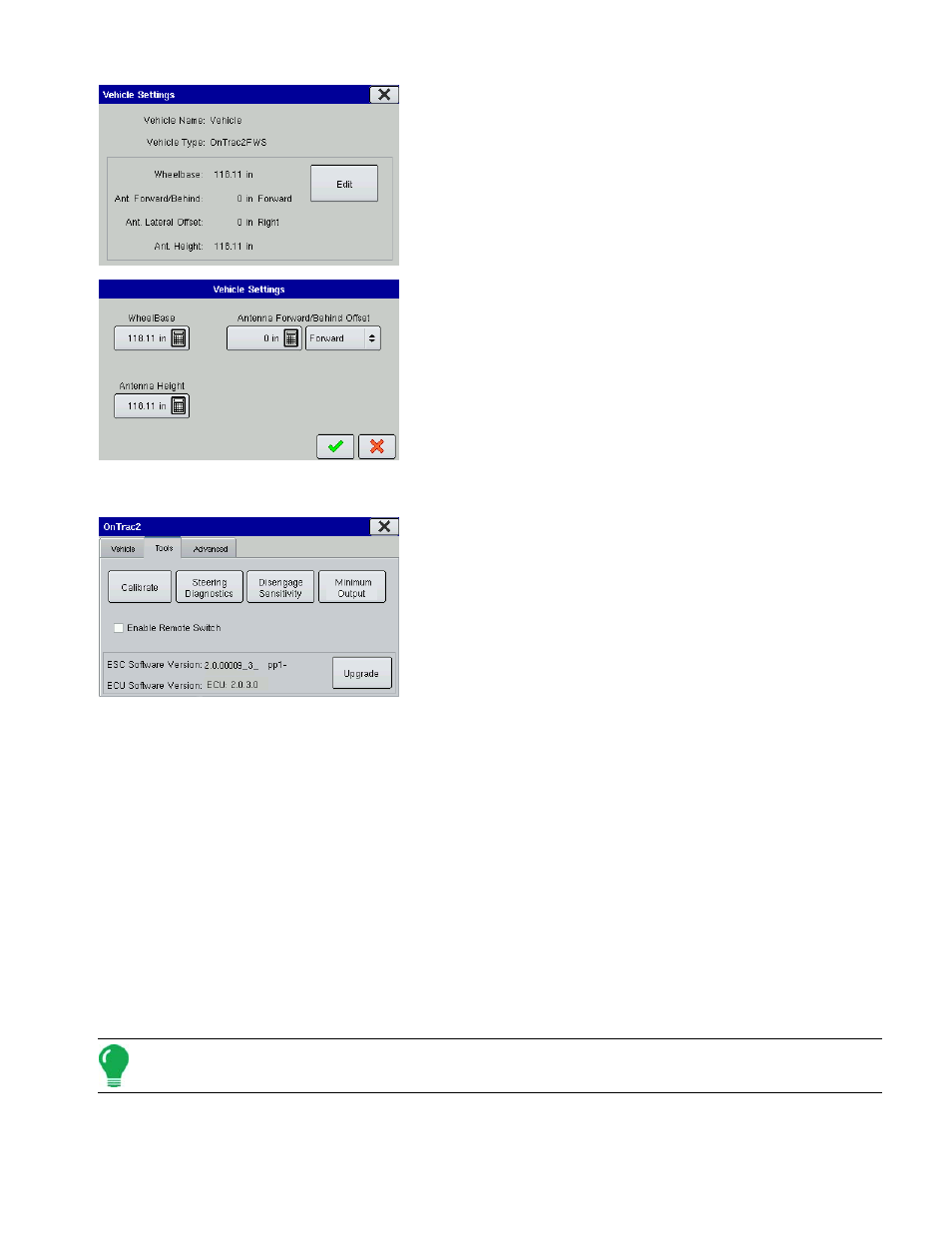

Press the Edit button, and a second Vehicle Settings screen
appears, as shown.
3. Adjust Settings, if necessary
At the Vehicle Settings screen, you can adjust the following
settings:
• Wheel Base
• Antenna Forward/Behind Offset
• Antenna Height
Press the green check mark box when finished.
O
N
T
RAC
2 T
OOLS
T
AB
The OnTrac2 Tools Tab is where you can calibrate OnTrac2,
perform a Vehicle Steering Diagnostics check, perform a
Steering Tuning Adjustment, enable a Remote Engage Switch,
and upgrade ESC firmware.
• Calibrate
Starts the procedure to calibrate OnTrac2. For more information,
see
“Calibrating OnTrac2” on page 52.
• Steering Diagnostics
Performs a Vehicle Steering Diagnostics check. For more
information, see “OnTrac2 Steering Diagnostics” on page 53.
• Disengage Sensitivity
The Disengage Sensitivity adjusts how hard you have to turn the wheel to get the OnTrac2 guidance to
disengage and return to manual steering. For more information, see
“Adjust Disengage Sensitivity” on
page 54.
• Enable Remote Switch check box
Enables the OnTrac2 operation to use a Remote Engage Switch.
• Minimum Output
Allows the operator to adjust how aggressively OnTrac2 will turn the wheel when it engages. See
“Minimum
Output” on page 54.
• Upgrade
Upgrades the ECU firmware.
Note: The Remote Engage Switch is an optional feature. Contact a sales representative for details.
