181
H
ARVEST

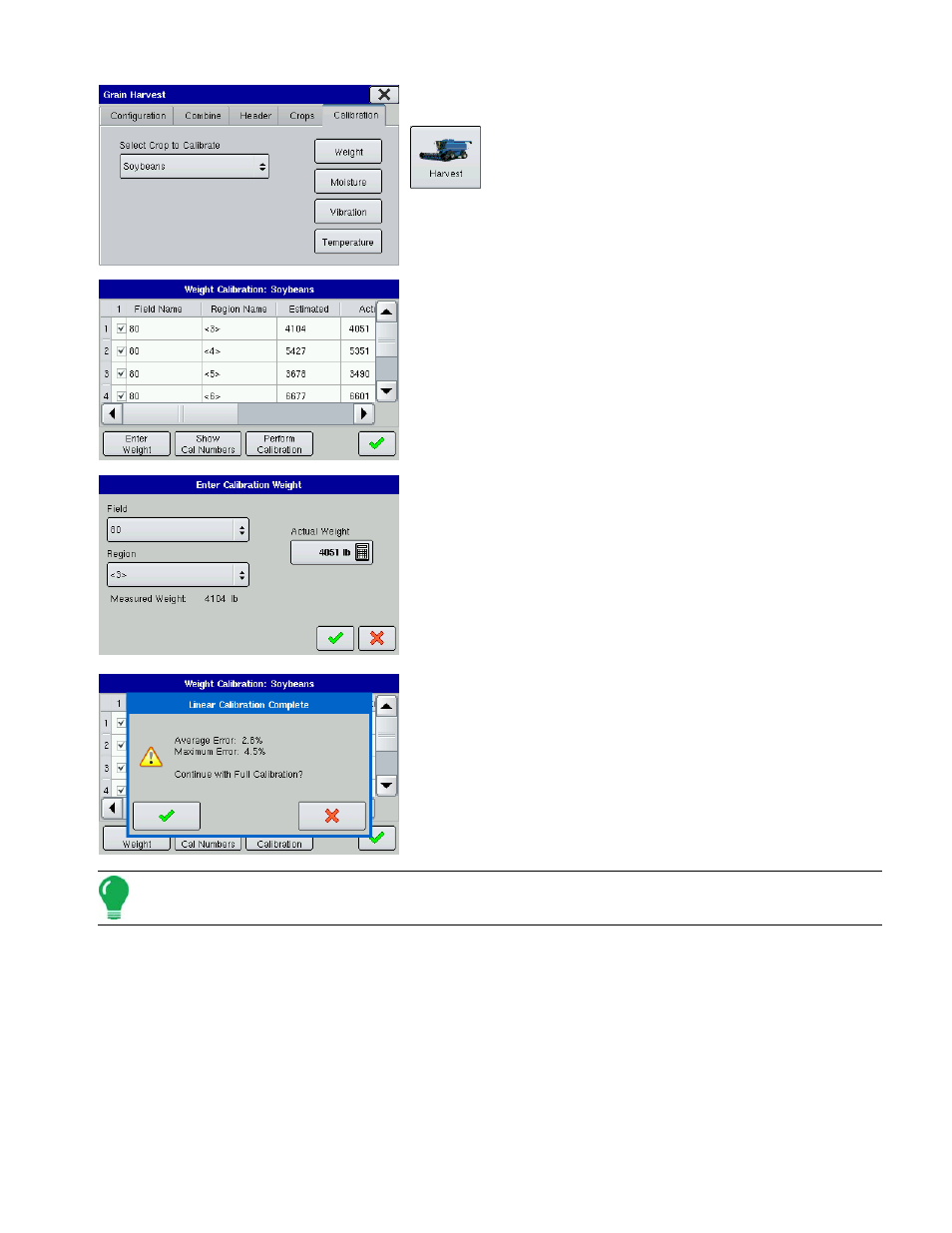

12. Select Crop to Calibrate
Press the Grain Harvest button
and then go to the Calibration Tab, as shown. Use the drop-down
menu to select the crop to calibrate.
13. Press Weight Button
Press the Weight button, and the Weight Calibration Screen
appears, as shown.
14. Press Enter Weight
By default, all Field Names are checked. Uncheck any regions that
you do not wish to include in the weight calibration, and press the
Enter Weight button.
15. Select Region and Enter Actual Weight
The Enter Cal Weight screen appears, as shown. Select the
Region and use the numeric keypad to enter the Actual Weight for
those regions. Repeat this step for each calibration load. When
finished, press the checkmark button.
16. Press Perform Calibration
When the Weight Calibration Screen reappears, press the Perform
Calibration button.
17. (Optional Step) Continue with Full Calibration
A message appears, stating “Linear Calibration Complete”, as in
the example shown. From here, you can continue with a Full
Calibration, which is more accurate than the Linear Calibration that
you just performed.
Note: A full calibration requires four or more loads; as compared to the Linear Calibration that you just
performed, which can be performed with three loads or less.
