22
• Color Scheme
The color scheme can be modified by using the drop down list.
• Reset Legend
Resets the legend to the default settings.
• Automatic Legend
If the Automatic Legend checkbox is selected, the average automatically sets itself to the field average and
updates as the field average changes
• Save as Product Legend
Select the Save as Product Legend checkbox if you wish to set the current legend as the default legend for
all regions of the same product.
C
REATE A
B
OUNDARY

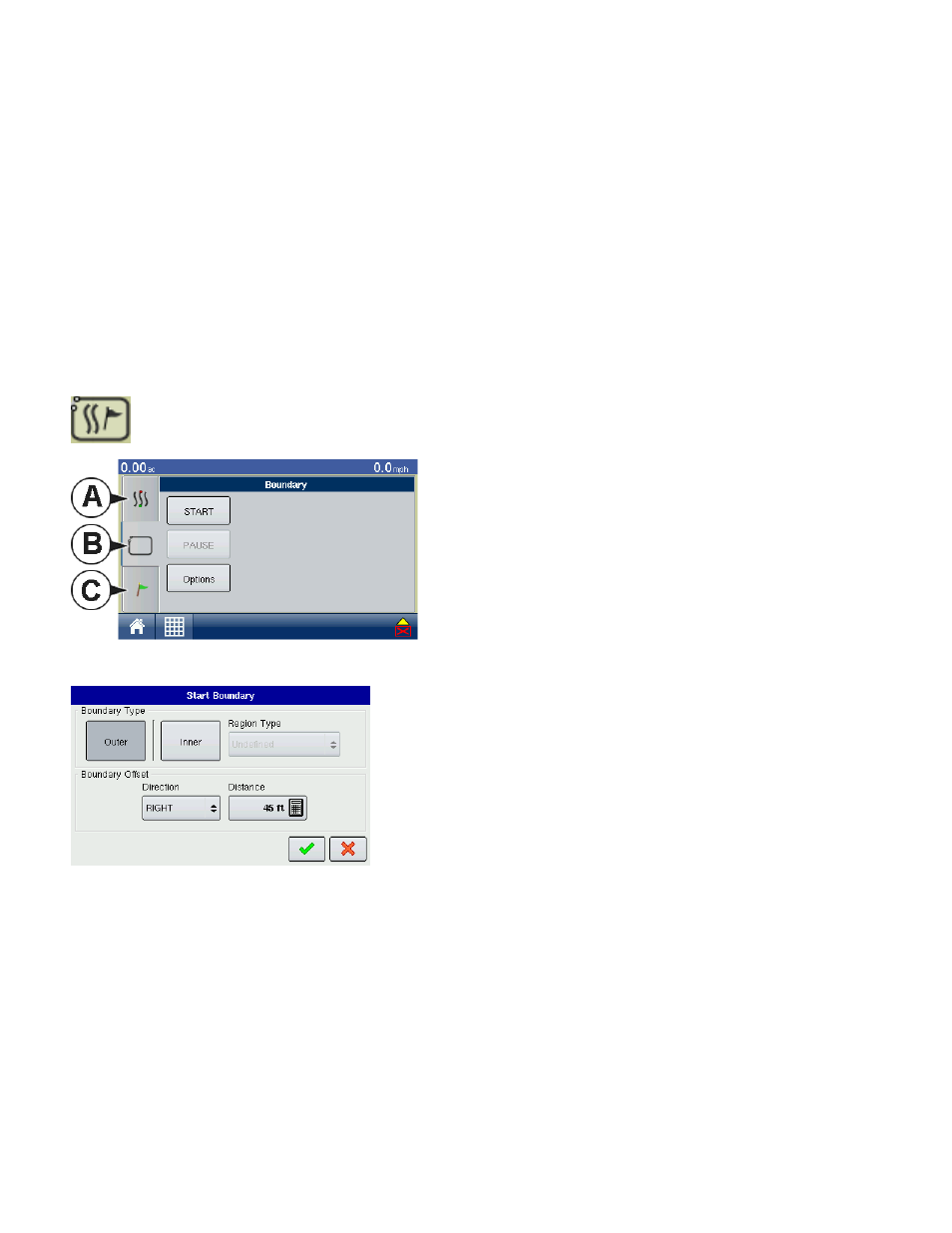

To begin creating a Map boundary, press the Map Options icon on the Map Screen. The
Boundary Creation screen appears, as shown.
Press the Start button to start creating a boundary. The
Start Boundary screen appears, as shown.
• (A) View Guidance
• (B) View Boundary
• (C) View Map Markers
Start Boundary
1. You can create two types of Map Screen boundaries in the
display: Outer boundaries delineate the borders of an entire
field; inner boundaries mark specific features within that field,
such as waterways or buildings. Choose whether to create
either an Outer boundary or Inner boundary by pressing one of
the two Boundary Type buttons.
2. If you are creating an Inner Boundary, choose either
Roadway, Body of Water, Waterway, Buildings or
Undefined.
3. The Boundary Offset feature enables mapping a boundary at a user-defined distance to the left or right
of the GPS antenna centerline. If desired, specify a Boundary Offset distance by choosing a direction and
distance from the GPS antenna centerline.
4. Press the checkmark box to start the boundary.
P
AUSE
B
OUNDARY
When creating a boundary, you can use the Pause Boundary button to create a straight line between
two points. To do this, drive the vehicle to a point, press the Pause Boundary button, then drive to the
second point. When you resume boundary creation, a straight line is created between your current point
and your pause location.
