19
S
ETUP

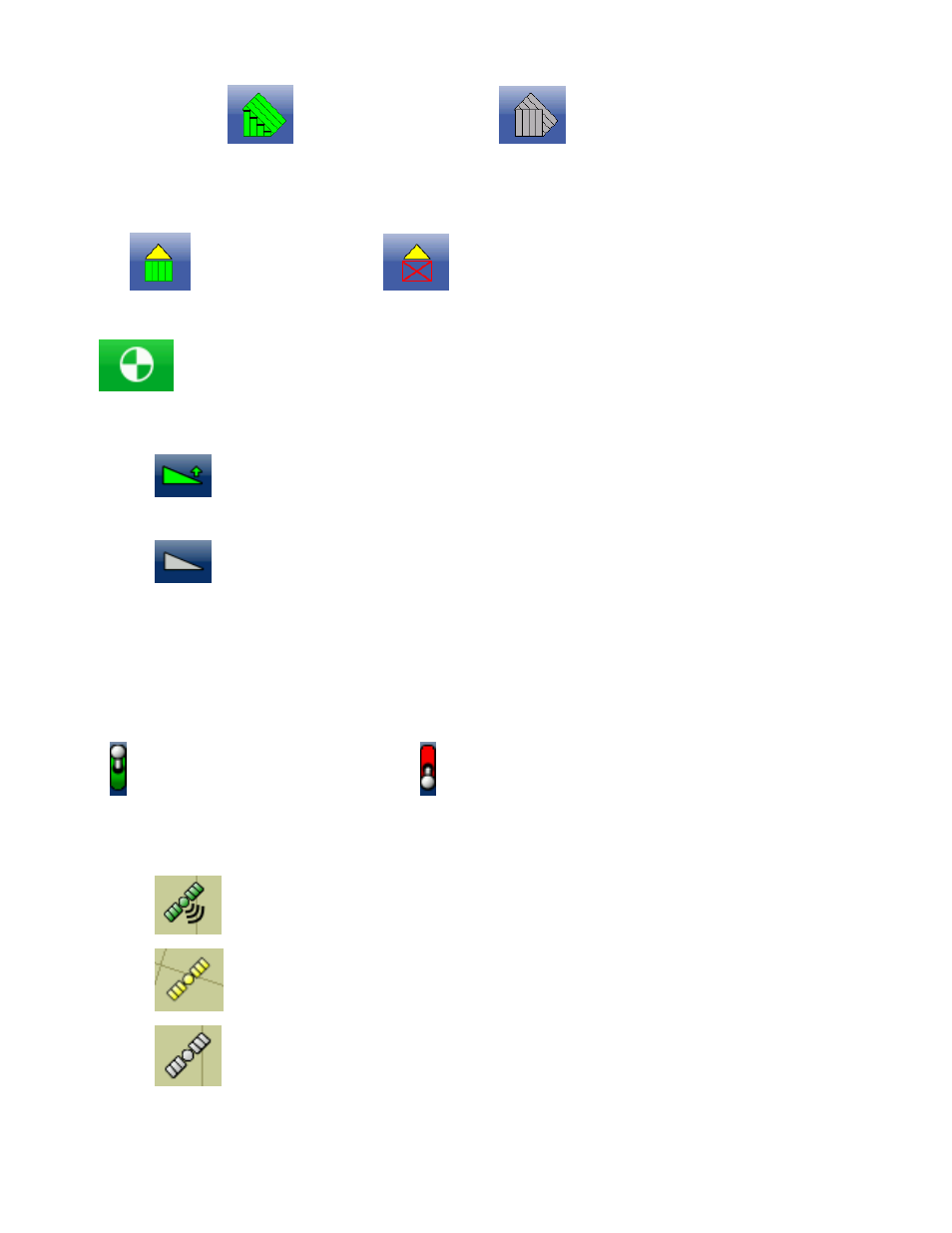

AutoSwath - ON AutoSwath - OFF
Area Logging Status Button. This button appears for configurations that do not use rate control, such
as Tillage, Harvest, Planting operations that do not use SeedCommand, and Application operations that
do not use DirectCommand. Pressing this button turns logging on and off.
ON OFF
Rate Control Button. Pressing this button takes you to the Rate Control screen, which is
shown for both Planting and Application.
The NORAC Engage button enables boom height control. This button can toggle back and forth
between Automatic Mode and Manual Mode.
• NORAC Engage - Enabled
When you enable Automatic Mode, this button turns green and an arrow appears above the
triangle. At the same time, the display beeps three times.
• NORAC Engage - Disabled
When you disable Automatic Mode on any part of the boom and the display switches to
Manual Mode, this button turns grey and the display beeps twice. If less than the full boom
remains in Manual Mode, the display will continue beeping twice every three seconds.
The Master Switch Indicator, shown for SeedCommand or DirectCommand functions, shows if the
master switch is on (green) or off (red). The master switch is shown in the F1 position on the Auxiliary
Input Settings screen.
Master Switch - ON Master Switch - OFF
Map Screen Icons
The GPS button in the upper left-hand corner of the Map screen, displays the following colors:
• Differential GPS
Green if you are receiving a differential GPS signal
• GPS - No differential
Yellow if you are receiving GPS, but no differential signal
• No GPS
Grey if you are receiving no GPS signal.
