Note: You may press the Reset button if you wish to start the calibration procedure over.
7. Enter Actual Dispense Amount
Enter in the actual amount of the product that was dispensed. Press the blue right-arrow button to continue.
8. Calibration Complete

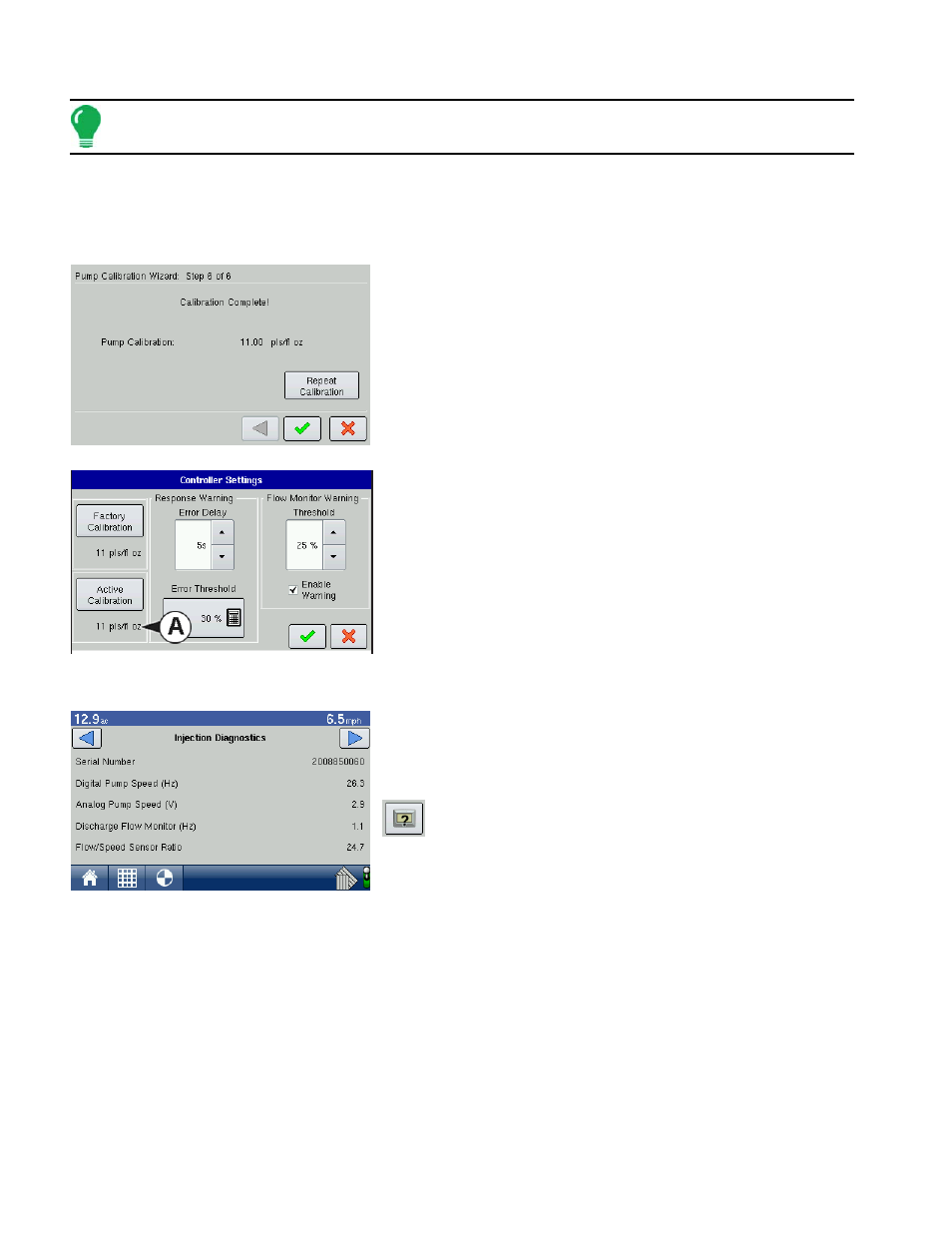

The Pump Calibration number appears. The New Injection Pump
Calibration Number now appears in the Pump Calibration screen.
From this point, you may either:
• Repeat the calibration by pressing the Repeat Calibration
button.
• Press the green check mark button to complete the calibration
and exit the Pump Calibration Wizard.
9. Calibration Displayed on Controller Settings screen
The new Injection Pump Calibration Number (A) now appears
in the Pump Calibration screen, as shown.
I
NJECTION
D
IAGNOSTICS
The Injection Diagnostic Tab provides raw values from sensors
verifying that the pump’s output is working. To go to the
Injection Diagnostics screen, press the Diagnostics button, as
shown.
• Digital Pump Speed
Displays volume information, shown in Hz.
• Analog Pump Speed
Displays varying voltage as pump speed is increased or decreased.
• Discharge Flow Monitor
Displays information showing that flow is being discharged for every piston stroke.
• Flow/Speed Sensor Ratio
The ratio that the system derived for calibration.
