These settings are used by mapping, product control, and Automatic Swath Control.

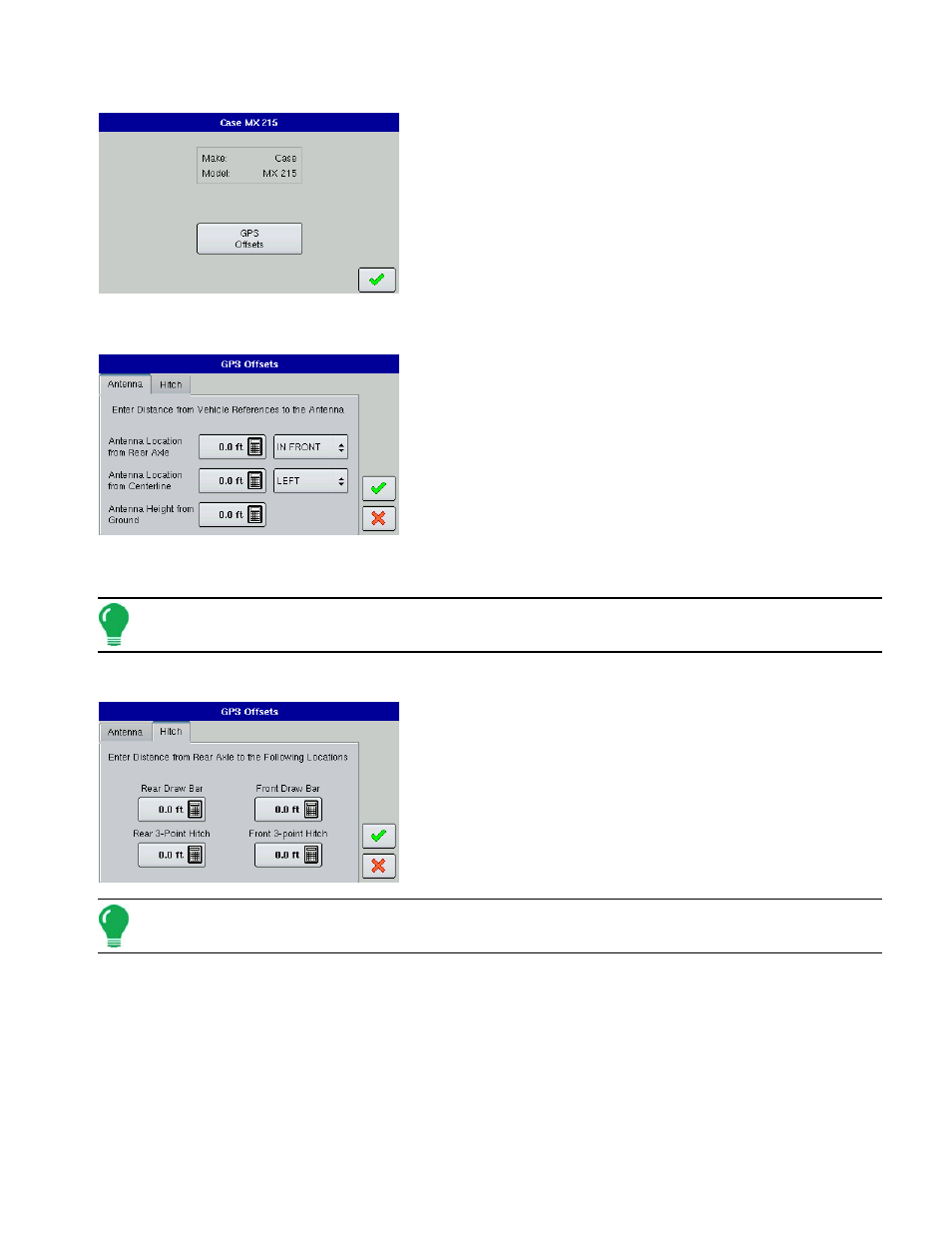

Press the GPS Offsets button to view Antenna and Hitch Tab
GPS settings. More information can be found at
“Antenna Tab”
on page 73 and “Hitch Tab” on page 73 .
Antenna Tab
The Antenna Tab contains three different settings.
• Measure and enter the horizontal distance from the rear axle to
the position of the GPS antenna. Select IN FRONT or BEHIND
from the list box to indicate the position of the antenna in relation to
the rear axle.
• Measure and enter the horizontal distance from the centerline of
the vehicle to the position of the GPS antenna. Select LEFT or
RIGHT to indicate the position from the vehicle centerline.
• Measure and enter the vertical height of the antenna above the
ground.
Note: Accuracy when measuring for a specific setting is essential to ensure proper machine performance.
Hitch Tab
The Hitch Tab allows you to enter in the distance from one of
four different mounting positions on the tractor to the rear axle.
Use the Number Pads to enter a value in for the respective
hitch point.
Note: Accuracy when measuring for a specific setting is essential to ensure proper machine performance.
