The Stepper Seed Control module allows Rawson ACCU-RATE Variable Rate Controller users to
control up to three hydraulic motor drives via the display. If you have purchased the Stepper Seed Rate
Control module, you should configure it in the following order.
1. Configure Stepper Seed Rate Control module
See “Stepper Seed Rate Control Configuration” on page 89
2. Enter Controller Settings
Include the Max Meter Speed, Gear Ratio and Minimum Allowable Ground Speed. See “Controller Settings
for Stepper Seed Rate Motor Drives” on page 90 .
3. Prime the Stepper Seed Meter
This fills the seed meter with seed, and thus allows you to avoid skips in your field. See “Priming Seed Rate
Meters” on page 94 .
4.
- a. Enter Meter Calibration Number. This number, representing seeds per revolution, is set according
to the number of seeds dropped per one revolution of the seed meter. See “Calibrating Seed Rate
Meters” on page 94 .
- b. Perform a Seed Meter Calibration (not always required). A new calibration should be performed if
your as-applied seed rate does not match the actual population planted. See “Calibrating Seed Rate
Meters” on page 94 .
S
TEPPER
S
EED
R
ATE
C
ONTROL
C
ONFIGURATION

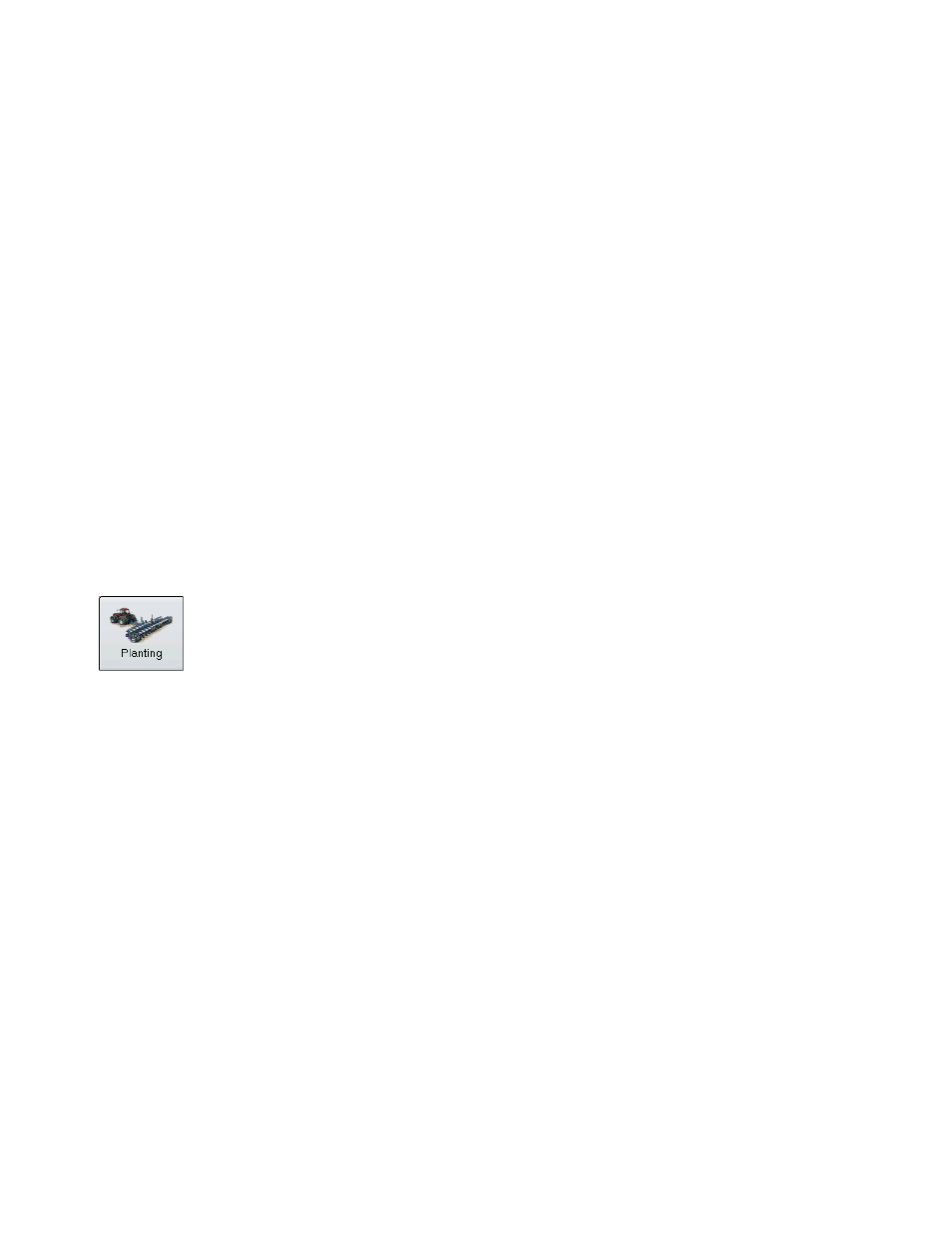

Press the Planting button at the Setup Screen and go to the Planting Configuration Tab.
1. Create or add a vehicle
Follow the on-screen wizard to set up a vehicle.
2. Add Implement
After you have completed the vehicle configuration, the Implement Attachment Wizard appears. Add a new
implement, and select the implement attachment method.
3. Select Implement
Using the drop-down box, select the implement you would like to use in this configuration. If there are no
implements in the list, press the New button.
4. Select Operation Type
Select the Rate Logging/Control operation type. Press the blue right-arrow button to continue.
5. Select Controller
Select an existing controller from the drop-down menu, or press the New button and use the Controller
Setup Wizard to create a controller.
6. Select Device and Seed Command Type
After pressing the New button, the Controller Setup Wizard appears. Use the drop-down menus to select
SeedCommand as your device. Use the bottom drop-down menu to select Stepper Seed Control as the
SeedCommand Type. Press the blue right-arrow button to continue.
