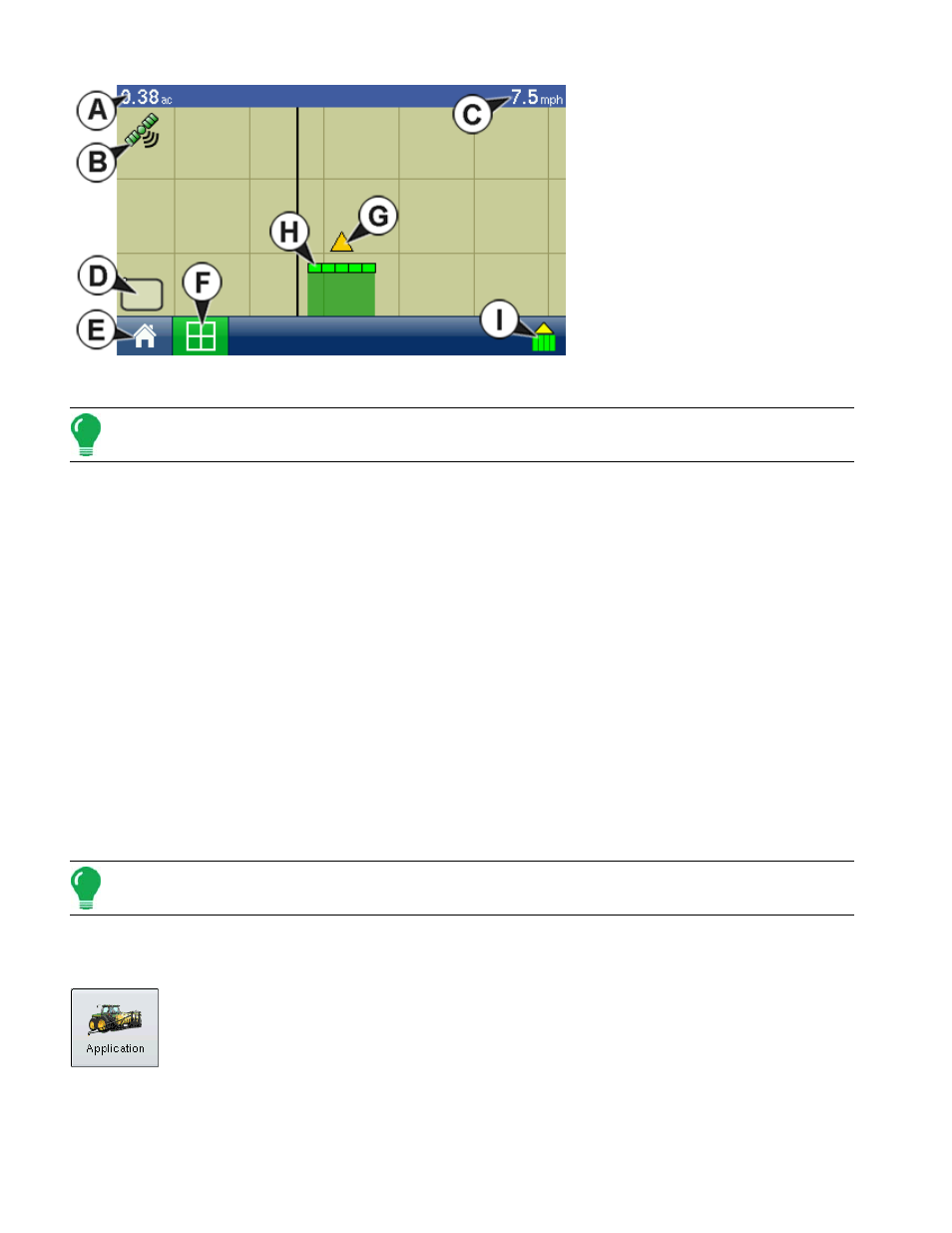

• (A) Total Field Acres
• (B) GPS Status
• (C) Ground Speed
• (D) Map Options
• (E) Home
• (F) Map View
• (G) Vehicle Icon
• (H) Implement Icon (5-section
boom)
• (I) Logging Status
Shown for area logging Application configurations
Note: For information on Map Screen items that are standard for all operations, See “Run Time Environment:
Map Screen” on page 18.
A
PPLICATION
M
AP
S
CREEN
I
TEMS
The following Application Map Screen Items are available at the Map Screen:
• Legend
During Application operations, the Map Screen displays two types of items in the Legend: Rate, and
Prescription (Rx). The Legend is only accessible in the Zoom to Extent view. For more information about
the Display Legend, see
“Edit Legend” on page 21.
• Display Legend icon
The Display Legend icon makes the Legend appear. When the Legend appears, the arrow points down;
when it is turned off the arrow points up. As with the Legend, the Display Legend icon is only accessible in
the Zoom to Extent view.
• Vehicle and Implement Icon
The vehicle icon shows the vehicle, while the Implement Icon shows the number of sections on the
implement, as well as the implement’s logging status. This item only appears in the Zoom Detail view.
• Logging Status Button
This button shows for Application Operations that are configured for Area Count.
Note: For an explanation of display items not listed above, see “Map Screen Icons” on page 19.
A
PPLICATION
S
ETUP
T
ABS
Pressing the Application button at the Setup Screen takes you to the Application Setup
Configuration Tab. This Tab is shown in front of four other tabs: Vehicle, Implement,
Controller and Product.
