42

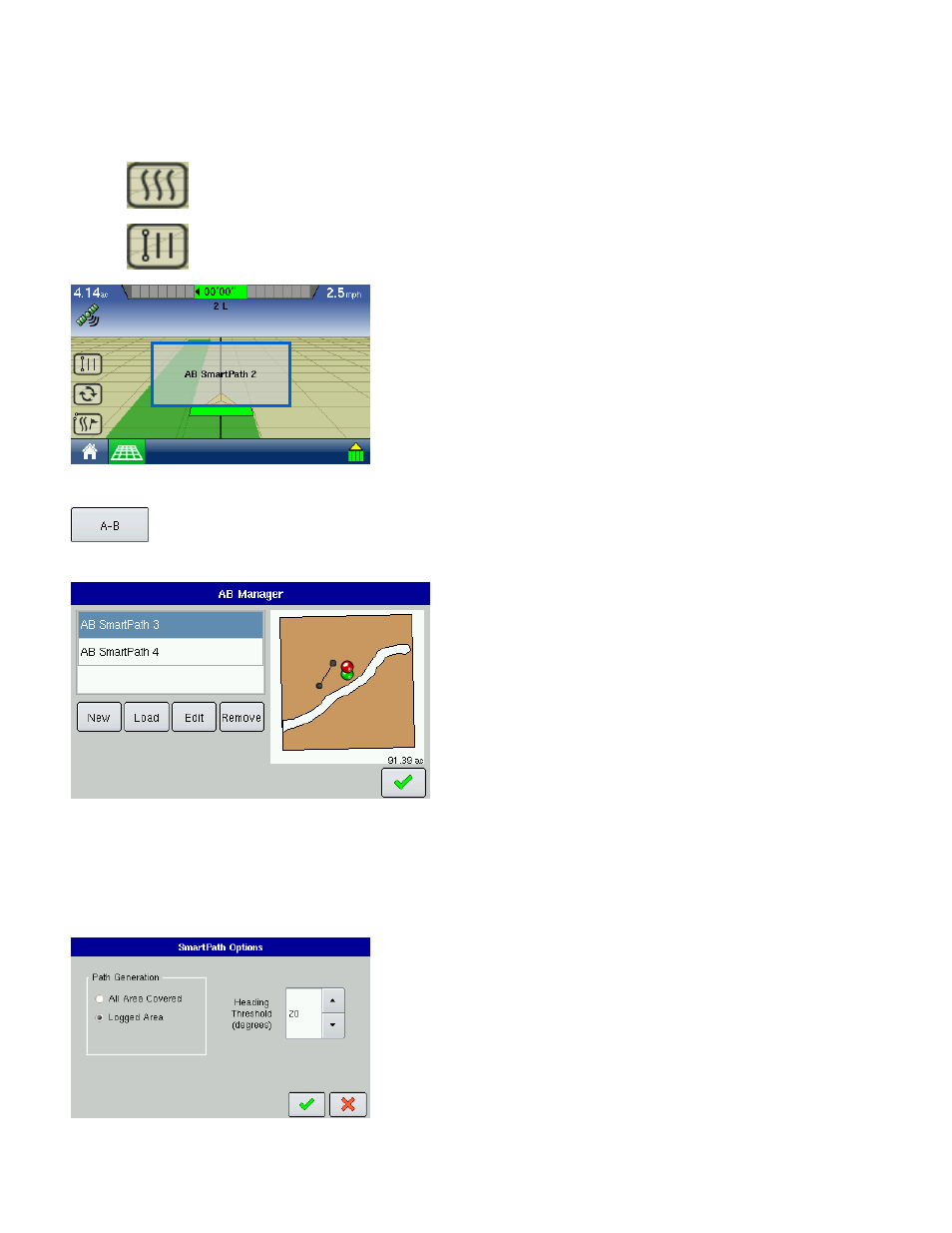

Once the AB line is created you can switch between the AB line and SmartPath patterns by pressing the
AB/SmartPath toggle.
A-B/SmartPath Toggle
• Curved Lines
• Straight AB Line
After the Guidance System has switched over to a different
path, the name of the currently-followed pattern is shown
within a black box on the Map Screen.
Choose Existing Lines Within SmartPath
You can create up to 10 different AB lines within SmartPath. Select the desired AB line by
pressing the A-B button on the Guidance Screen. The AB Manager Screen appears, which
shows all AB lines created within a particular field. An example is shown.
• Highlight the desired AB line, then press the green check
mark button to close the screen.
• Press the New button to add an AB line.
• Press the Load button to load an AB line.
• Press the Edit button to edit the name of an AB line.
• Press the Remove button to remove an AB line.
SmartPath Guidance Options
SmartPath only creates a SmartPath pass when you are logging data in the field. However, you have the
option of using it to create SmartPath passes continually during all field operations.
To adjust this setting, press the Options button on the Guidance screen. At the Guidance Options
screen, press the Smart button. The SmartPath Options screen appears, as shown.
Notes:
• The default setting is Logged Area. This setting only creates
passes when you are logging field data.
• By selecting All Area Covered, you can create SmartPath
passes even when not logging field data.
• The Heading Threshold setting is the available area that the
Guidance System uses to search for previously-created SmartPath
passes. The default setting is 20 degrees.
