128
• Rate Screen functions
beginning on
“Run Time Environment: Rate Screen” on page 129 .
• Loading Prescription Files
beginning on
“Loading Prescriptions” on page 134 .
• Shape File Conversion
beginning on
“Shape File Conversion” on page 135 .
• Liquid Application Control
beginning on
“Liquid Application Control” on page 136 .
• Direct Injection
beginning on
“Direct Injection” on page 141 .
• Spinner Spreader Granular Control
beginning on
“Spinner Spreader Granular Control” on page 147 .
• NORAC UC5 Boom Height Control
beginning on
“NORAC UC5 Setup” on page 151 .
• Troubleshooting information
beginning on
“Troubleshooting” on page 154 .
M
AP
S
CREEN
: Z
OOM TO
E
XTENT

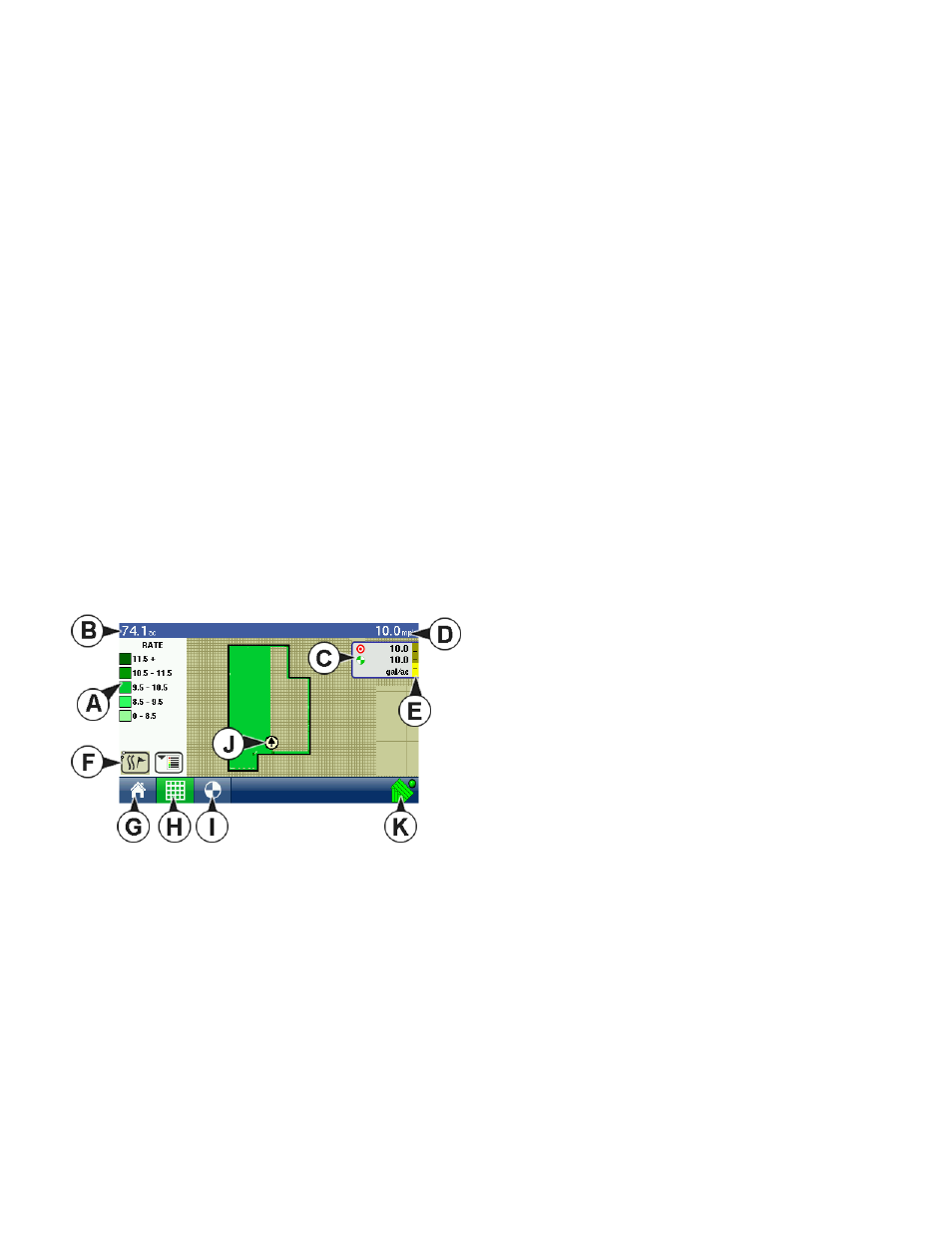

This map is for a DirectCommand configuration. The Display Legend icon has been pressed to show the
Rate Legend at left. At right, the Container Level shows that the container is half-full.
• (A) Legend
• (B) Total Field Acres
• (C) Status Items Target Rate / Actual Rate
• (D) Ground Speed
• (E) Container Level
• (F) Display Legend Button
• (G) Home
• (H) Map View
• (I) Target Rate
• (J) Vehicle Icon
• (K) AutoSwath
M
AP
S
CREEN
: Z
OOM
D
ETAIL
The map below is shown for a Sprayer with DirectCommand features. This sprayer includes 5 sections,
and these sections are shown as individual boxes on the Implement Icon behind the Vehicle Icon.
