165
A
PPLICATION
• Enable Warning
The Enable Warning check box allows you the option of displaying the Flow Monitor Warning.
Run Screen
• AutoSwath
Use to enable/disable automatic control of boom section on/off state based upon field boundaries,
prescription files, and previously applied areas.
D
IAGNOSTICS
I
NPUT
D
IAGNOSTICS

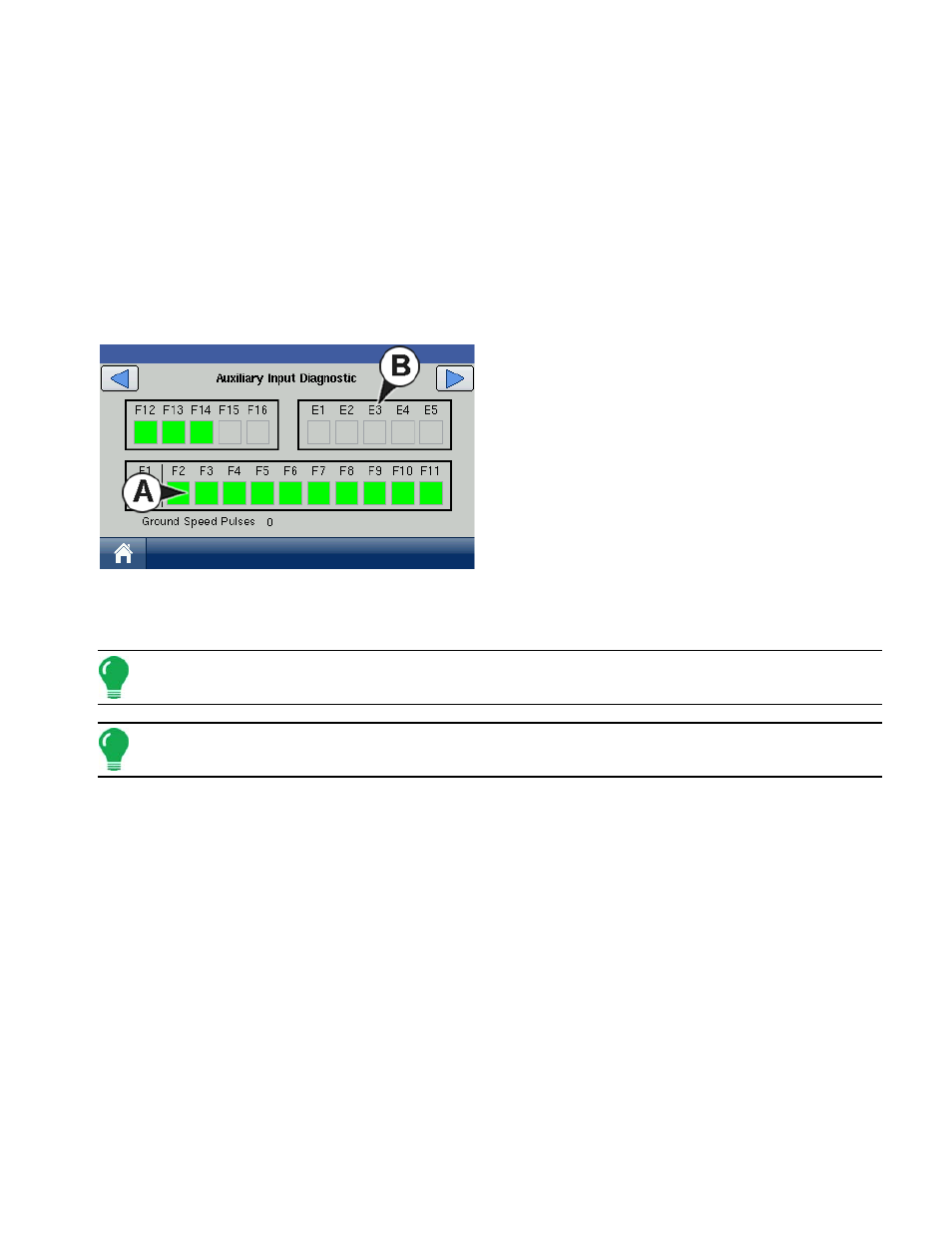

The Input Diagnostic Tab lists the number of Ground
Speed Pulses coming in from the radar to the
Auxiliary Module.
• (A) Switch Inputs
• (B) E2: Foot Box
Additionally, the bottom row of boxes lists the active
switch inputs. These color coded boxes display the
following diagnostics:
• Green: The switch box is connected to the Auxiliary
Module in the On position.
• Black: The switch box is connected to the Auxiliary Module, but is in the Off position.
• Grey: The switch box is not connected to the Auxiliary Module.
Note: The E2 position is the indicator for the foot box.
Note: Other diagnostic settings can be found in “Diagnostics” on page 24.
