Upon installation of the OnTrac2 hardware, you must set up a new configuration using the OnTrac2
guidance feature, by performing the following tasks:
• Configure a vehicle on the OnTrac2 Configuration Tab
For more information, see
“Vehicle Configuration” on page
• Calibrate OnTrac2
For more information, see
Adjusting the Disengage Sensitivity should be
included with this calibration procedure.
• Perform a Steering Diagnostics Check
For more information, see
“OnTrac2 Steering Diagnostics” on page
• Adjust the tuning parameters
For more information, see
• Adjust the Response Rate and Line Acquisition Rate settings as necessary
These improve how the vehicle acquires and holds the AB line. For more information, see
V
EHICLE
C
ONFIGURATION
Press the Setup (wrench) tool and go to the OnTrac2 Vehicle Configuration Tab. Create an
OnTrac2 vehicle configuration.
Note: Even if you already performed a vehicle configuration in Setup, you must still perform a vehicle
configuration at the OnTrac2 Tab. The two vehicle configurations - in Setup and OnTrac2 - are independent
of each other.
1. Press the Add button
2. Choose Vehicle Style
Enter the type of your vehicle. Press the blue right-arrow button to continue.

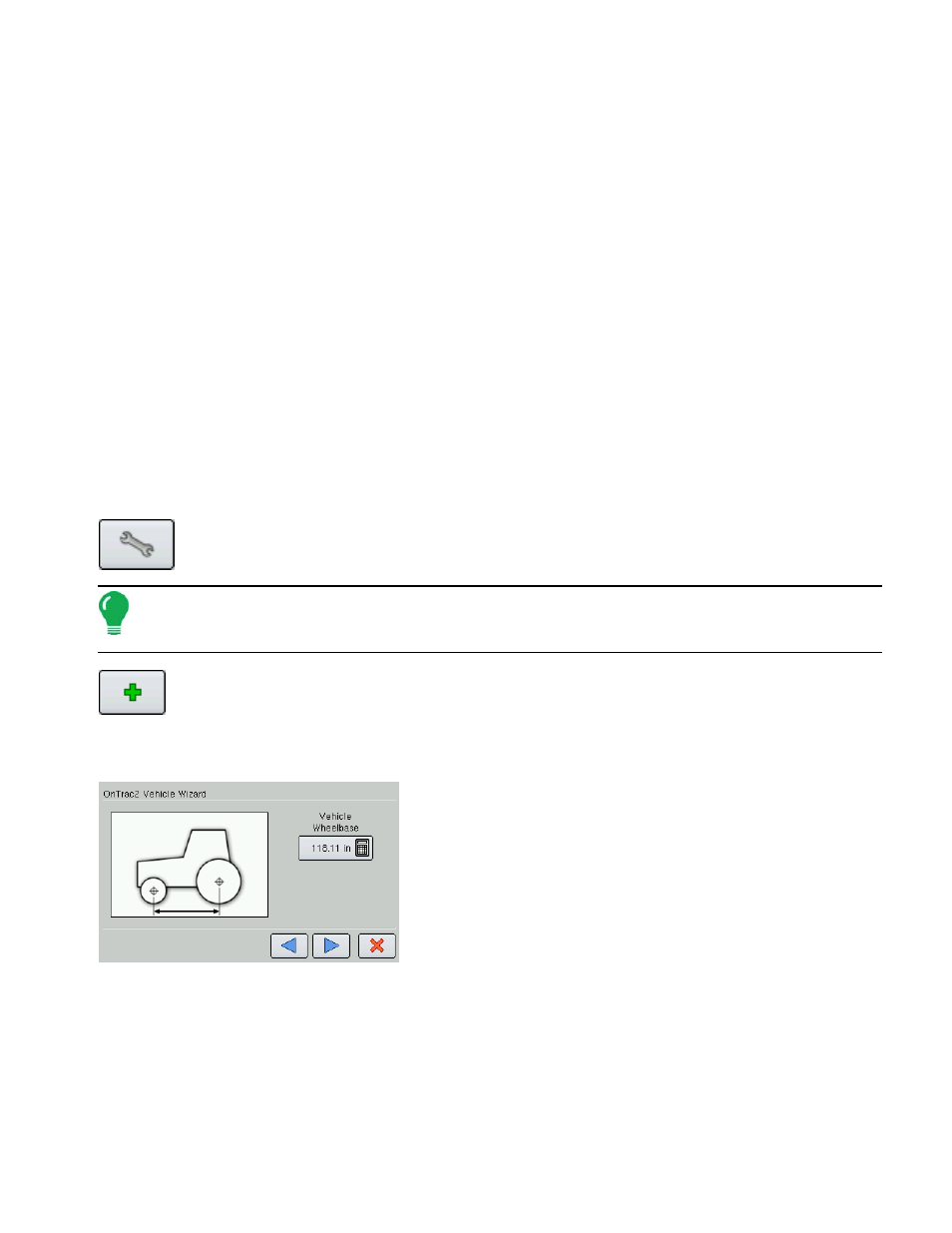

3. Enter the Wheel Base
Use the numeric keypad to enter the vehicle wheel base. Press the
blue right-arrow button to continue.
